Symptom Chart

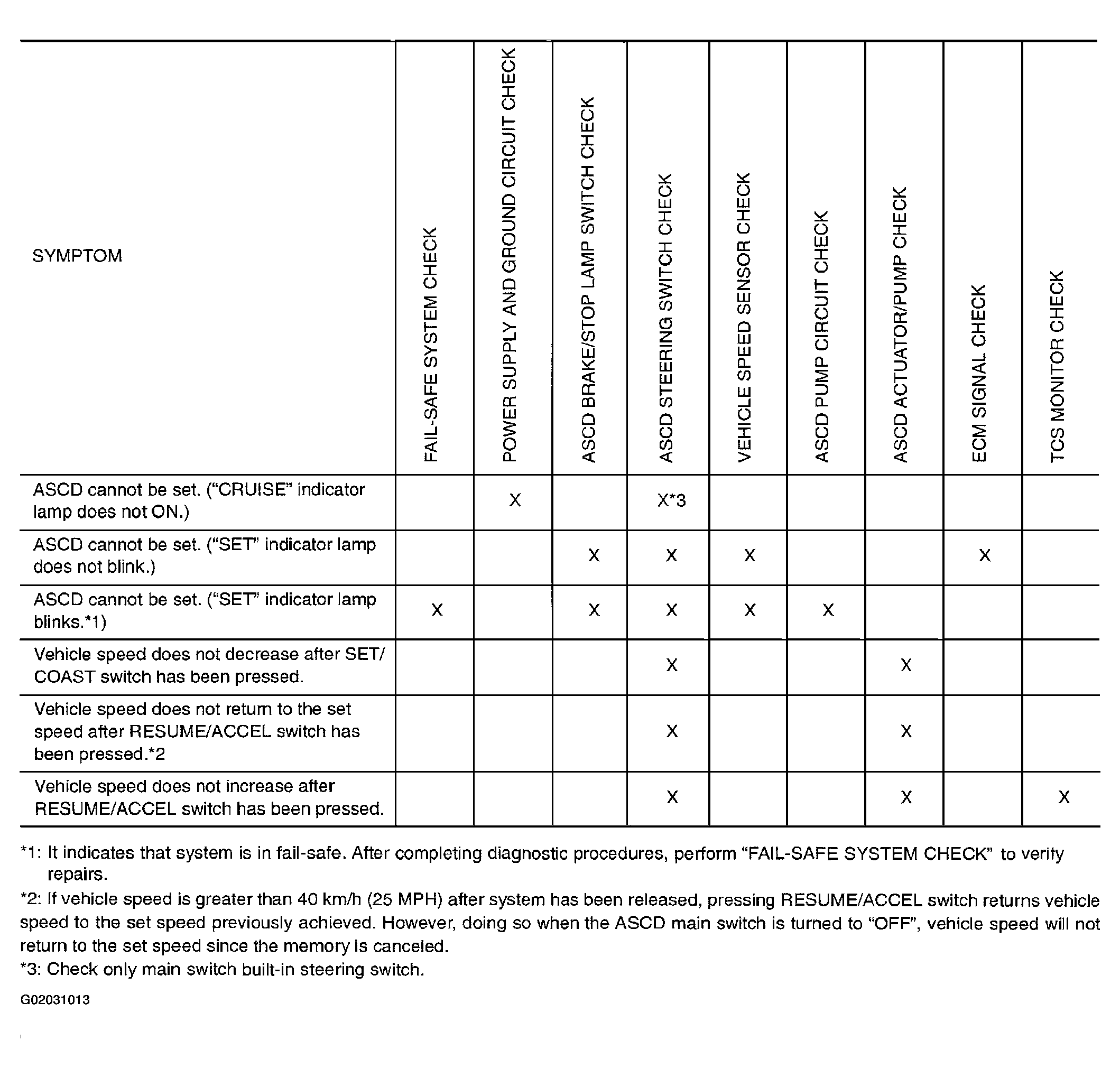

Fig 1: Symptom Chart (1 Of 2)
G02031013Courtesy of NISSAN MOTOR CO., U.S.A.

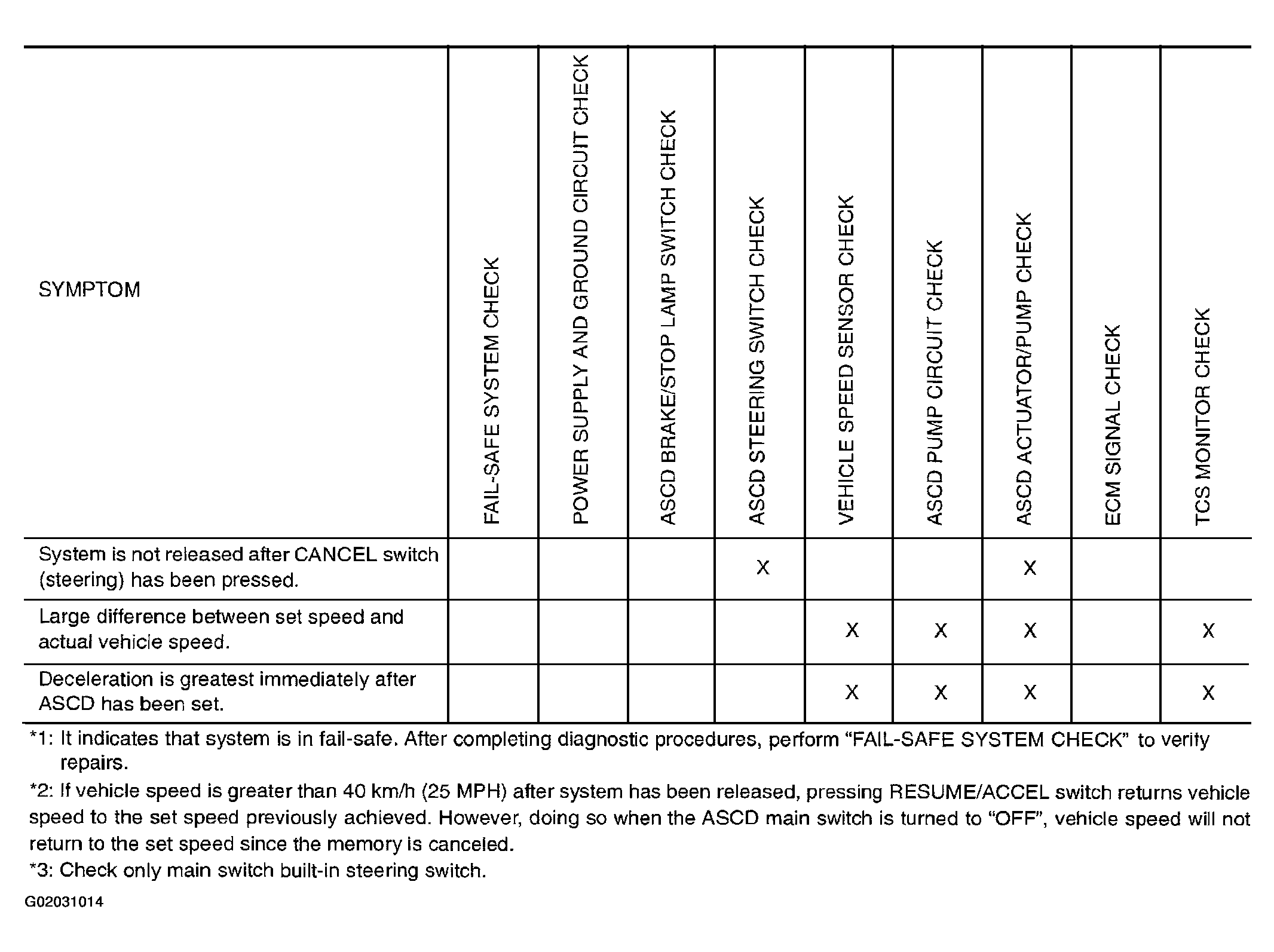

Fig 2: Symptom Chart (2 Of 2)
G02031014Courtesy of NISSAN MOTOR CO., U.S.A.
