RGB Screen Is Rolling

1. Turn the ignition switch OFF.
2. Disconnect AV and NAVI control unit connector and Display connector.
3. Check continuity between AV and NAVI control unit and Display.

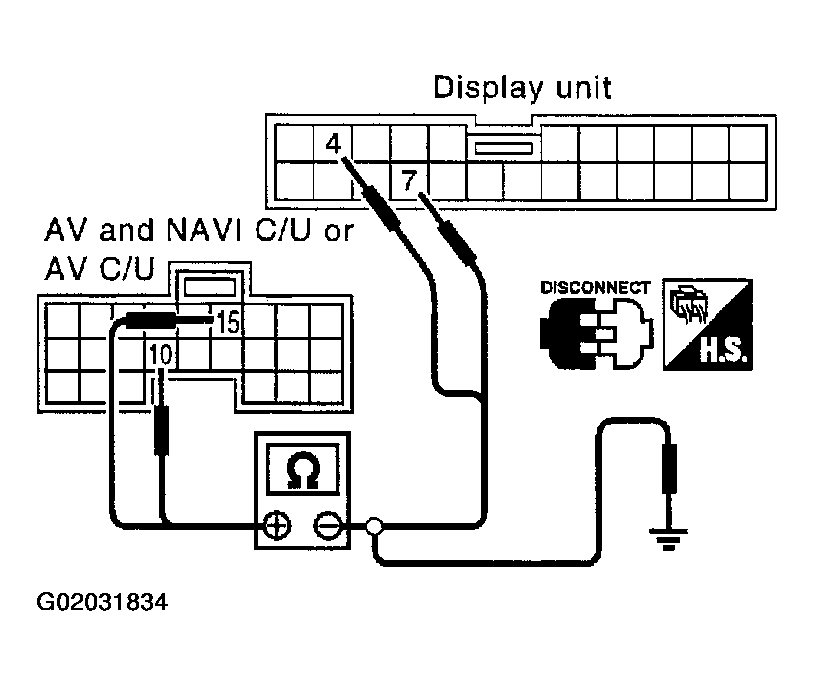

   Fig 1: Checking Harness (1 Of 3)

   Courtesy of NISSAN MOTOR CO., U.S.A.
   Fig 2: Checking Harness (2 Of 3)

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Check continuity between AV and NAVI control unit and ground.
   Fig 3: Checking Harness (3 Of 3)

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK >> GO TO 2.
2. NG >>
   • Check harness for open or short between AV and NAVI control unit and Display for open or short circuit.
   • Check connector housings for disconnected or loose terminals.

1. Connect AV and NAVI control unit connector and Display connector.
2. Turn the ignition switch ON.
3. Check voltage between AV and NAVI control unit terminals 15 and 14.
   Fig 4: Checking RGB Synchronizing Signal (1 Of 2)

   Courtesy of NISSAN MOTOR CO., U.S.A.
   Fig 5: Checking RGB Synchronizing Signal (2 Of 2)

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK >> Replace Display.
2. NG >> Replace AV and NAVI control unit.
