Navigation System: Schematic

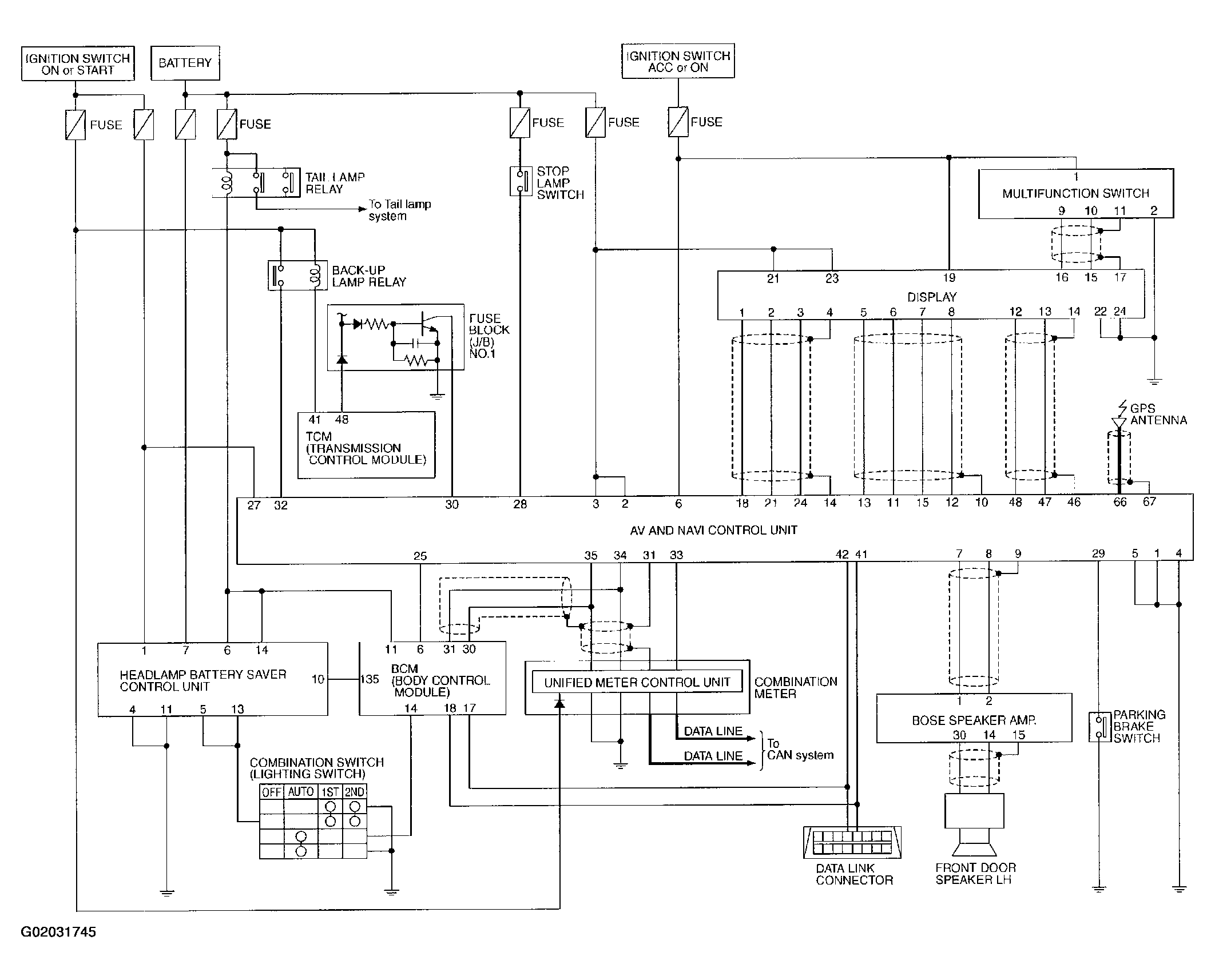

Fig 1: Navigation System Schematic
Courtesy of NISSAN MOTOR CO., U.S.A.
