Consult-II Diagnostic Test Mode Function

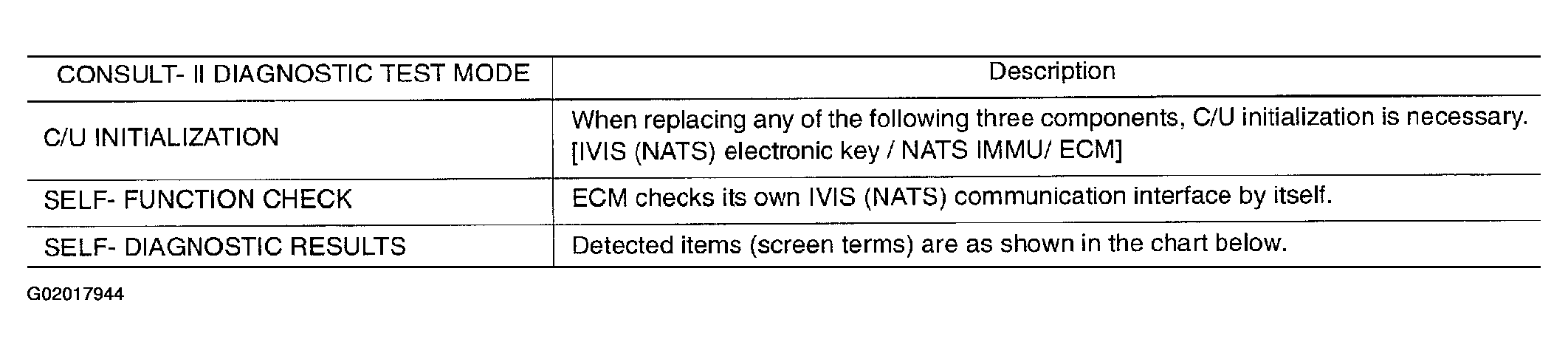

Fig 1: CONSULT-II Diagnostic Test Mode Function Description Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: When any initialization is performed, all ID numbers previously registered will be erased and all IVIS (NATS) electronic keys must be registered again. The engine cannot be started with an unregistered key. The system will show "DIFFERENCE OF KEY" or "LOCK MODE" as a self-diagnostic result on the CONSULT-II screen.
