Terminals And Reference Value For Combination Meter

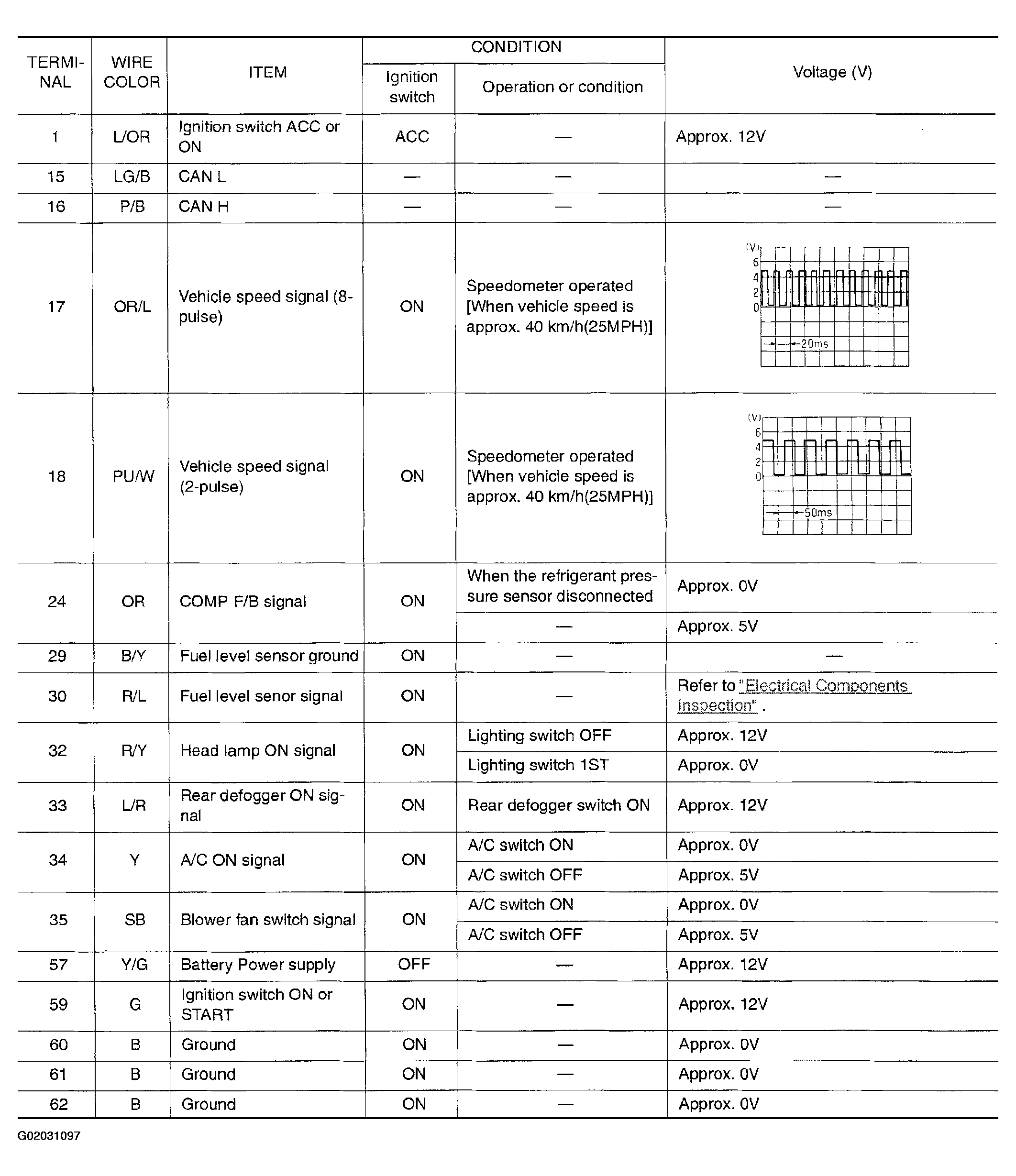

Fig 1: Terminals & Reference Value For Combination Meter
G02031097Courtesy of NISSAN MOTOR CO., U.S.A.
