Driver Information System: Schematic: Notes

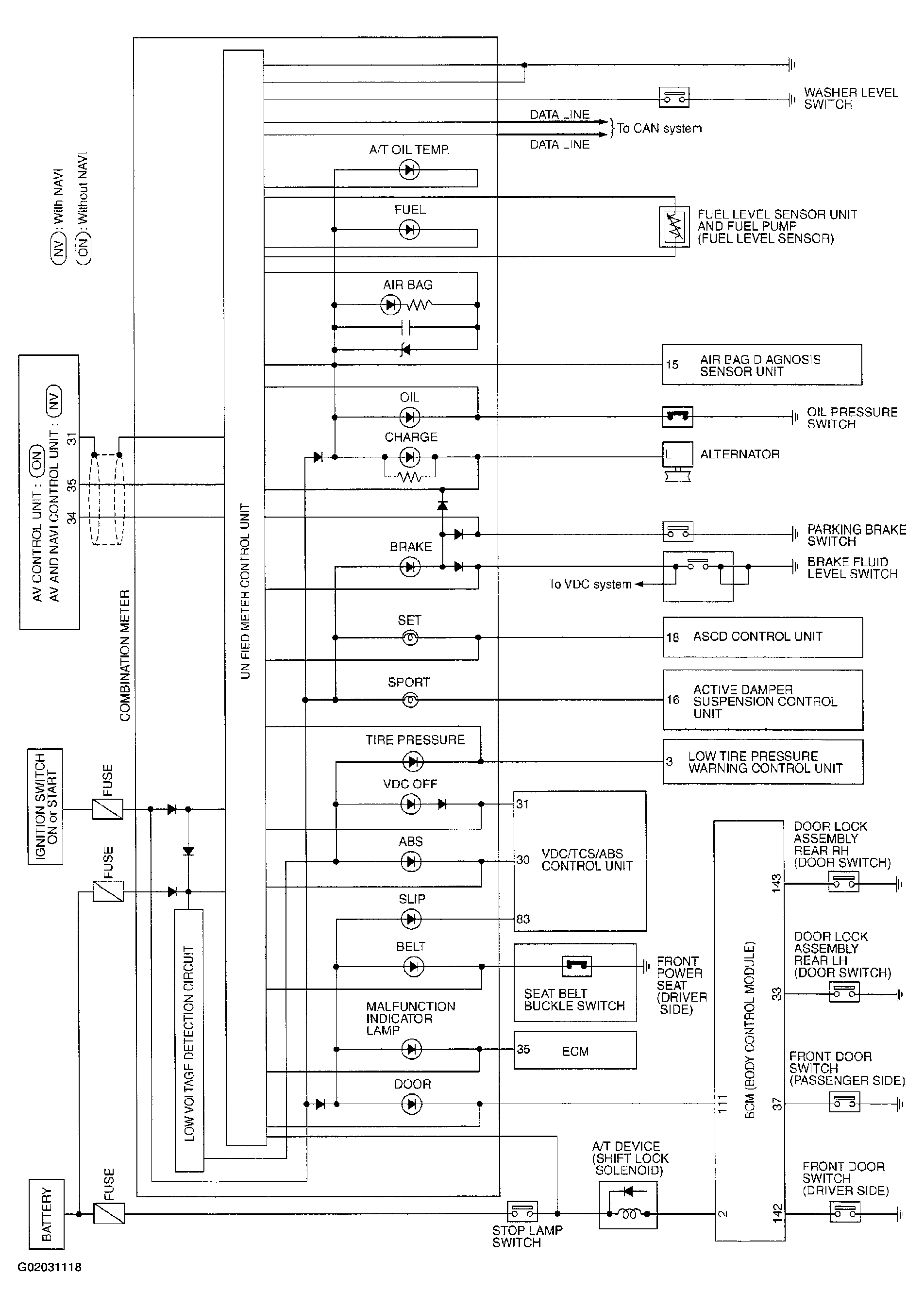

Fig 1: Schematic
G02031118Courtesy of NISSAN MOTOR CO., U.S.A.
