Disassembly And Assembly For Combination Meter

WARNING: This page is about a different car, the 2004 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.

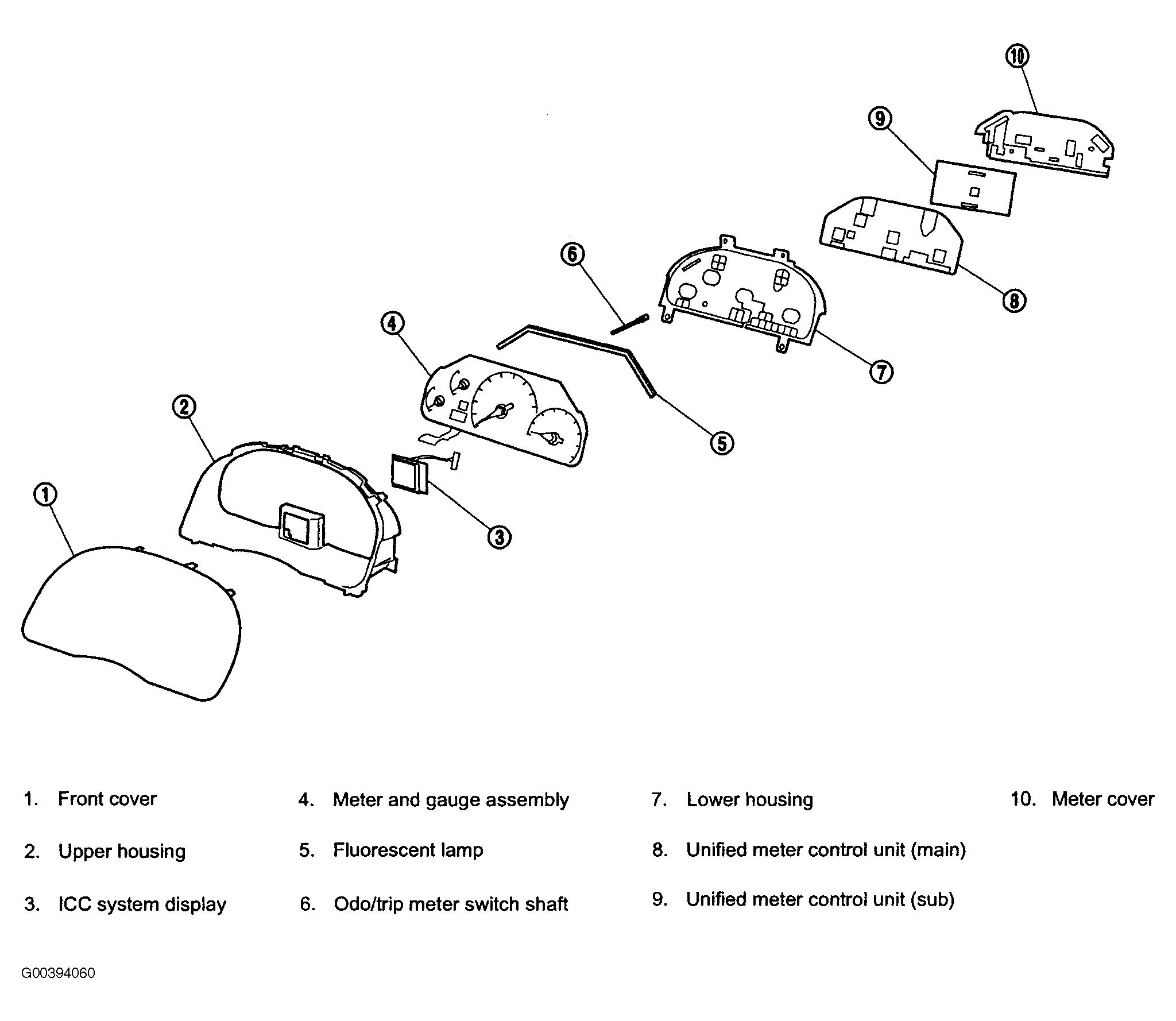

Fig 1: Exploded View Of Combination Meter

Courtesy of NISSAN MOTOR CO., U.S.A.

Disconnect ICC system display connector.
Remove the screws (9) to separate meter cover.

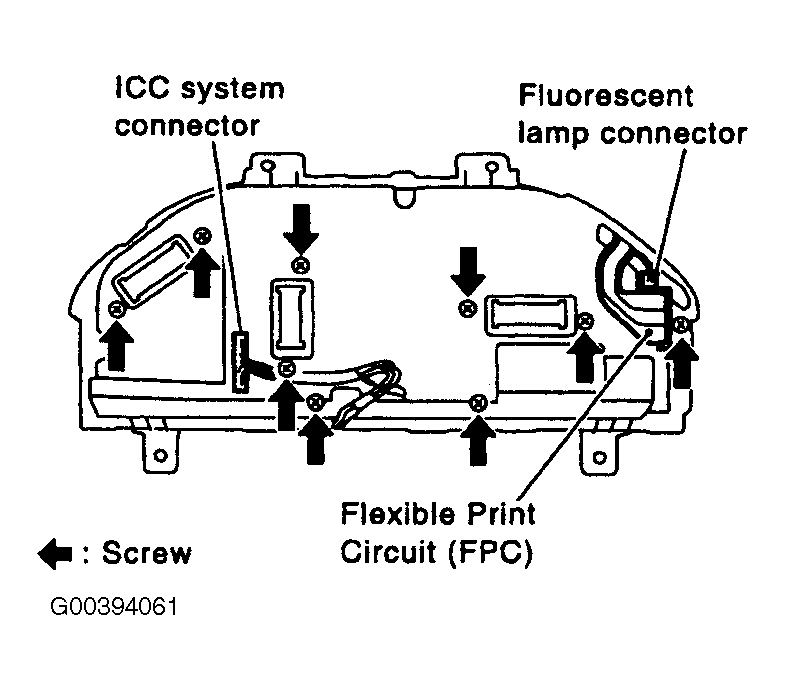

Fig 2: View Of Combination Meter Backside
Courtesy of NISSAN MOTOR CO., U.S.A.
Disconnect the connectors for fluorescent lamp connector and flexible print circuit for fluorescent lamp.
Disconnect the flexible print circuit for odo/trip meter.
Remove the screw (1) to separate unified meter control unit (main and sub).

Fig 3: Separating Unified Meter Control Unit From Combination Meter
Courtesy of NISSAN MOTOR CO., U.S.A.
Disengage the tabs (8) to separate upper housing.
Remove the screw (1) to separate meter and gauge assembly.
Disengage the tabs (7) to separate front cover.
Separate unified meter control unit (main) from unified meter control unit (sub).
