Disassembly And Assembly For MULTIFUNCTION Switch: Disassembly

WARNING: This page is about a different car, the 2004 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws (7).
  2. Remove the switches.

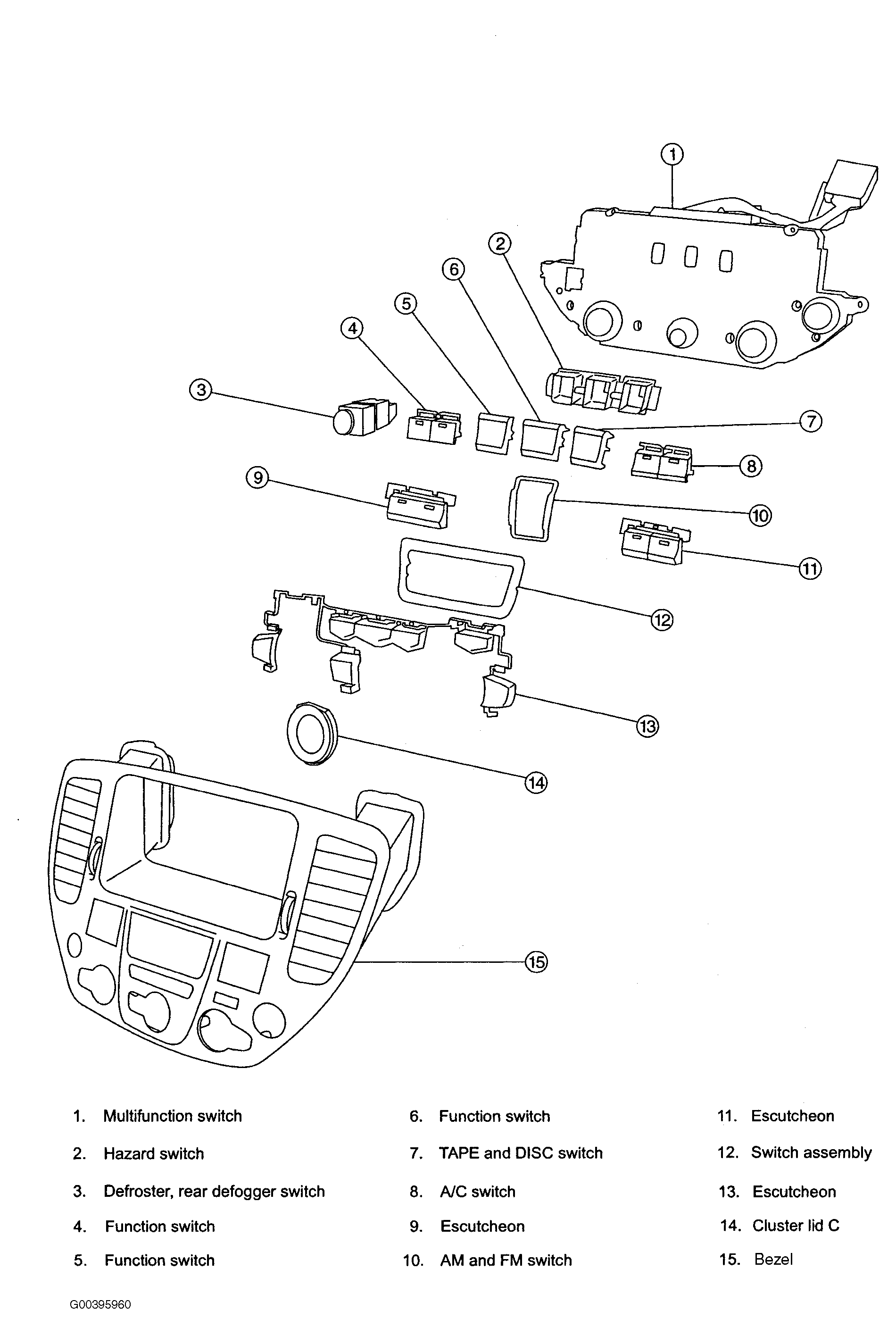

Fig 1: Disassembly & Assembly For Multifunction Switch
G00395960Courtesy of NISSAN MOTOR CO., U.S.A.
