Removal And Installation For Voice Activated Control Module: Removal

WARNING: This page is about a different car, the 2004 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove trunk trim. Refer to TRUNK ROOM TRIM & TRUNK LID FINISHER .
  2. Remove voice activated control module.

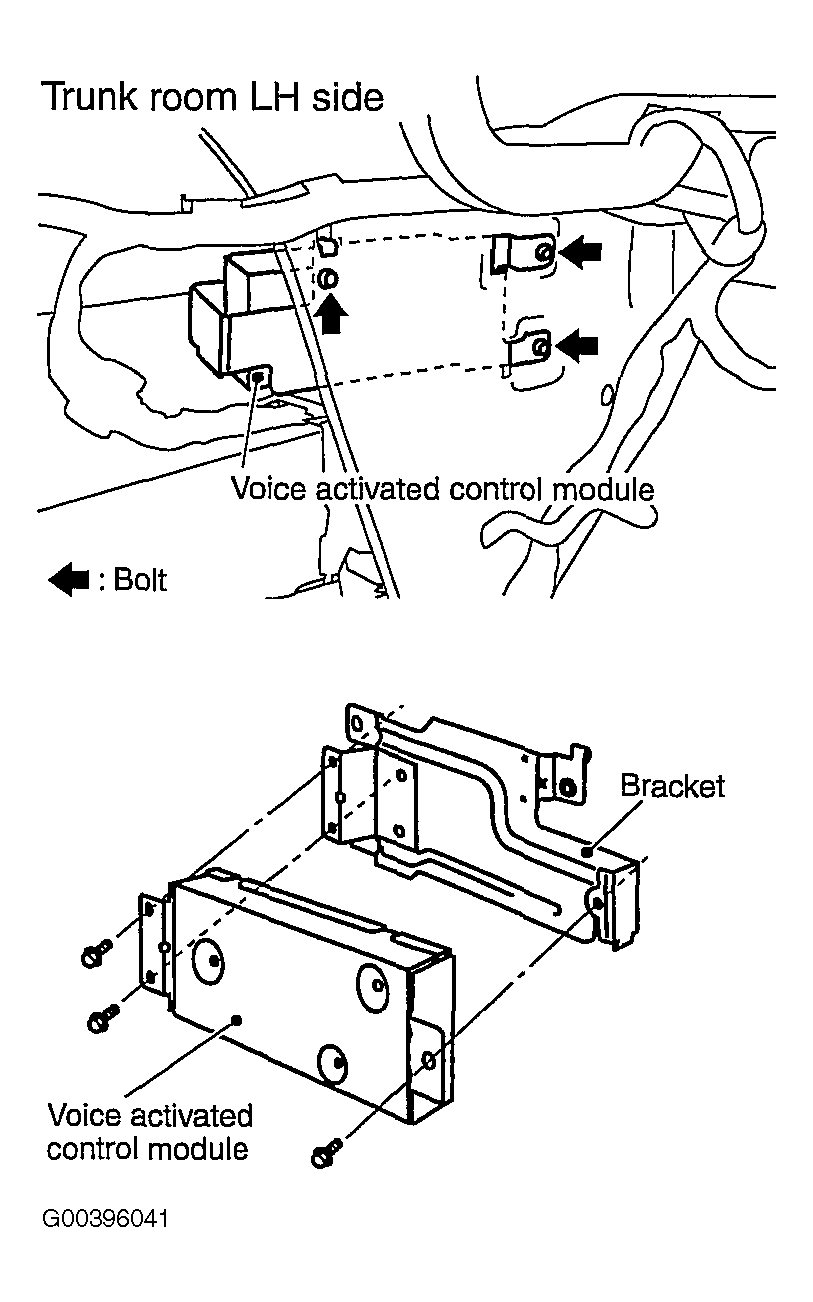

    3. Fig 1: Removing & Installing Voice Activated Control Module
    G00396041Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove bracket from voice activated control module.
