Removal and Installation: Installation

WARNING: This page is about a different car, the 2003 Nissan Altima and 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Installation is the reverse order of removal.

When installing the transaxle to the engine, use the tightening torque and sequence shown below:
CAUTION: When installing transaxle, be careful not to bring transaxle input shaft into contact with the clutch cover.

QR engine models:

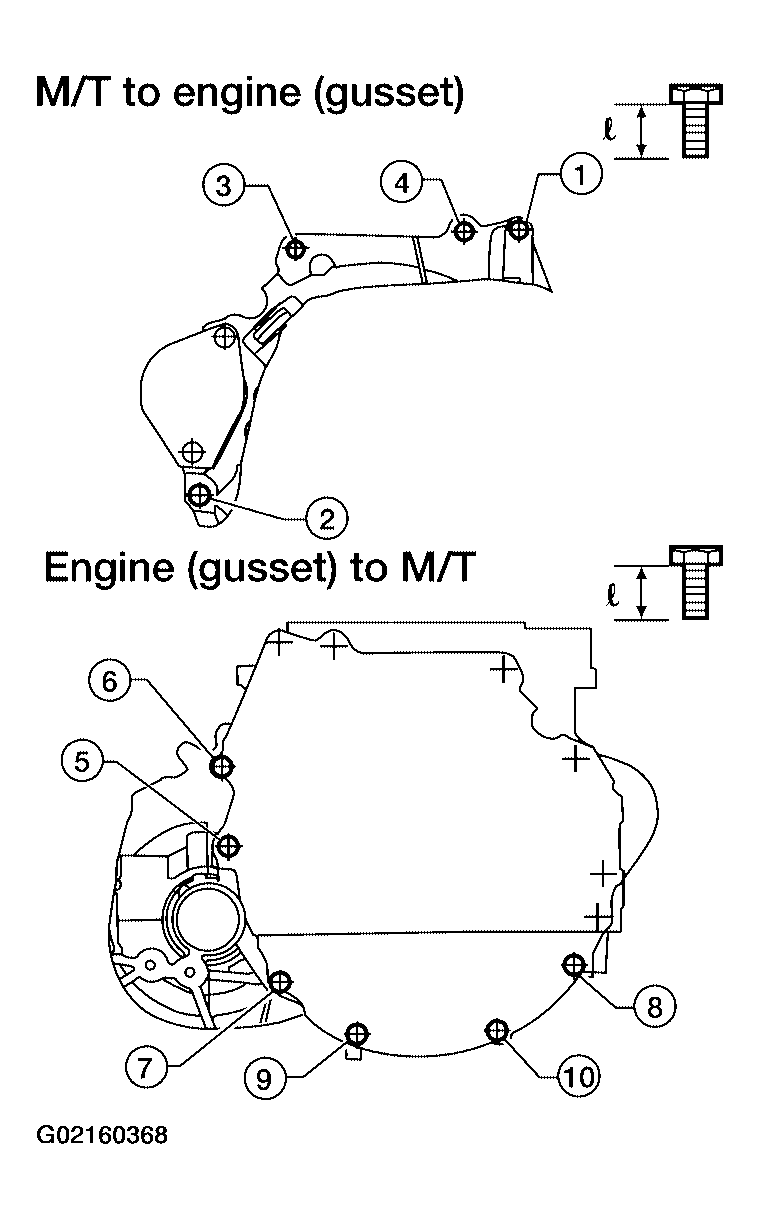

Fig 1: Transaxle Mounting Bolts Length And Tightening Torque Relating Index (QR Engine Models)
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Transaxle Mounting Bolts Tightening Sequence (QR Engine Models)
Courtesy of NISSAN MOTOR CO., U.S.A.

VQ engine models:

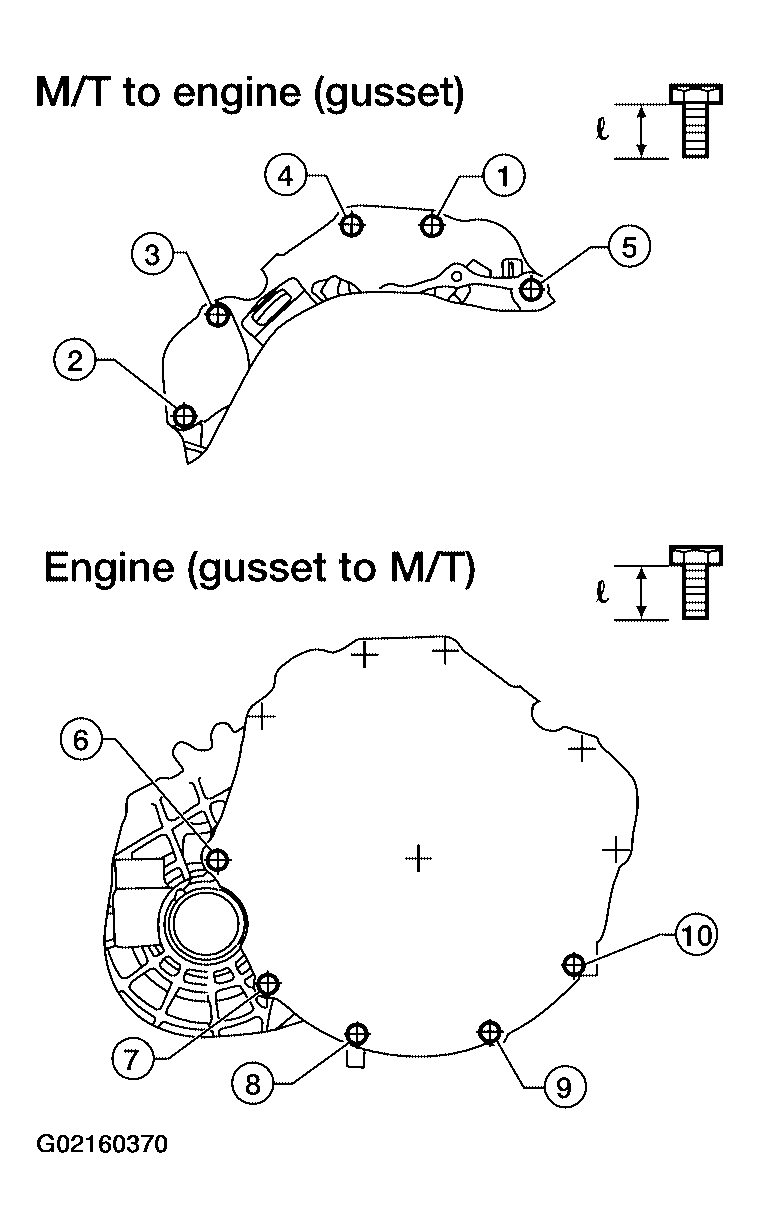

Fig 3: Transaxle Mounting Bolts Length And Tightening Torque Relating Index (VQ Engine Models)
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying Transaxle Mounting Bolts Tightening Sequence (VQ Engine Models)
Courtesy of NISSAN MOTOR CO., U.S.A.
After installation, check oil level, and look for leaks and loose mechanisms.
