Front Final Drive: Components

WARNING: This page is about a different variant/trim than selected.

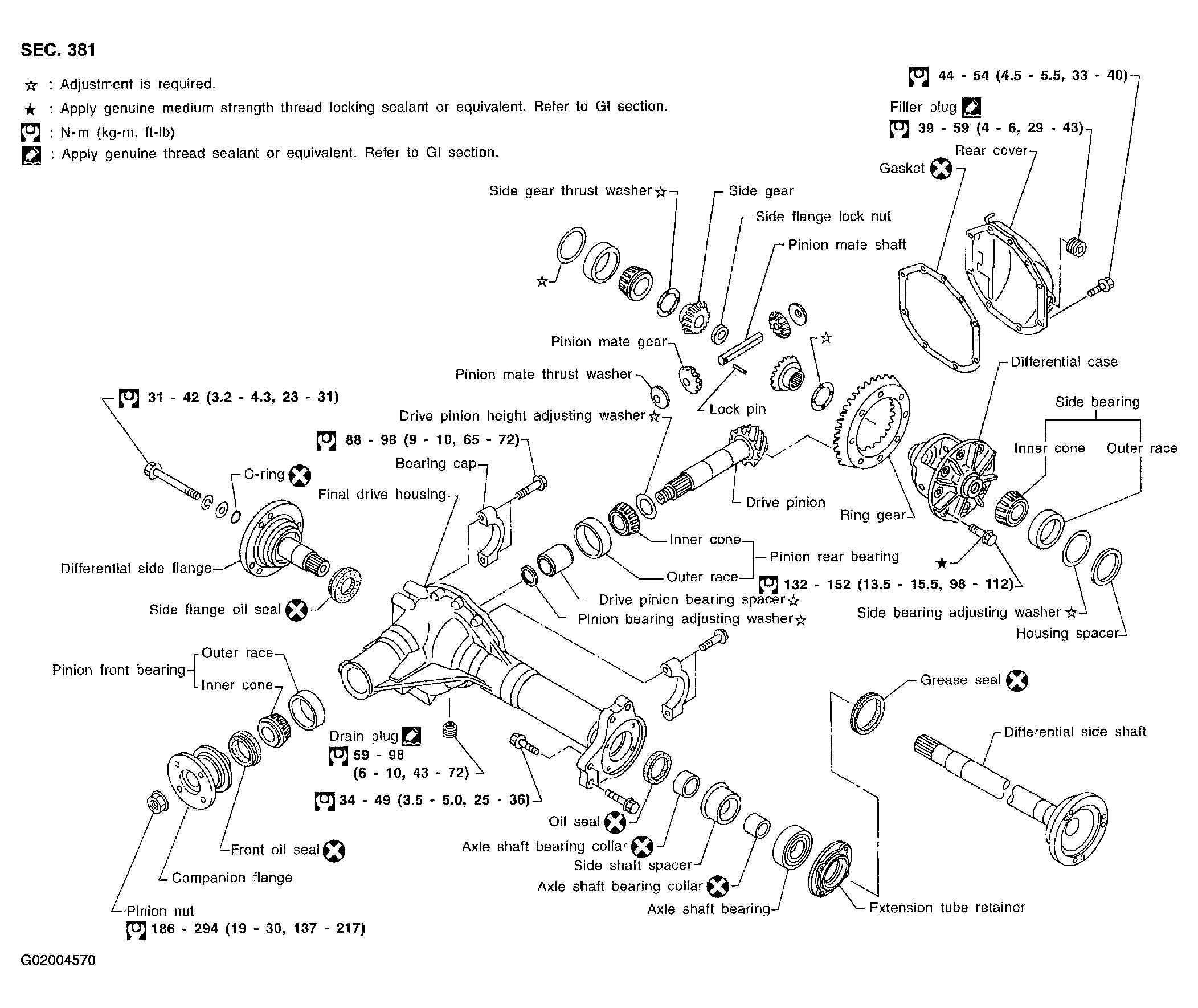

Fig 1: Exploded View Of Front Final Drive And Torque Specification
G02004570Courtesy of NISSAN MOTOR CO., U.S.A.
