Data Monitor Mode Reference Values

For Heated Oxygen Sensor (HO2S) 1 heater data monitor mode specification data, see Fig 1.

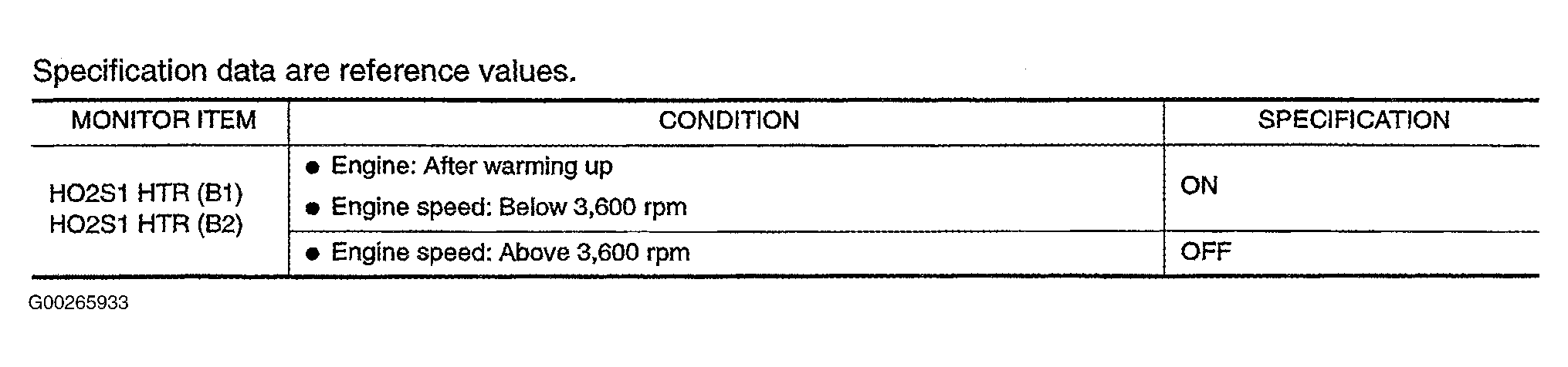

Fig 1: Identifying HO2S1 Heater Specification Data

Courtesy of NISSAN MOTOR CO., U.S.A.
