Steering Outer Socket and Inner Socket

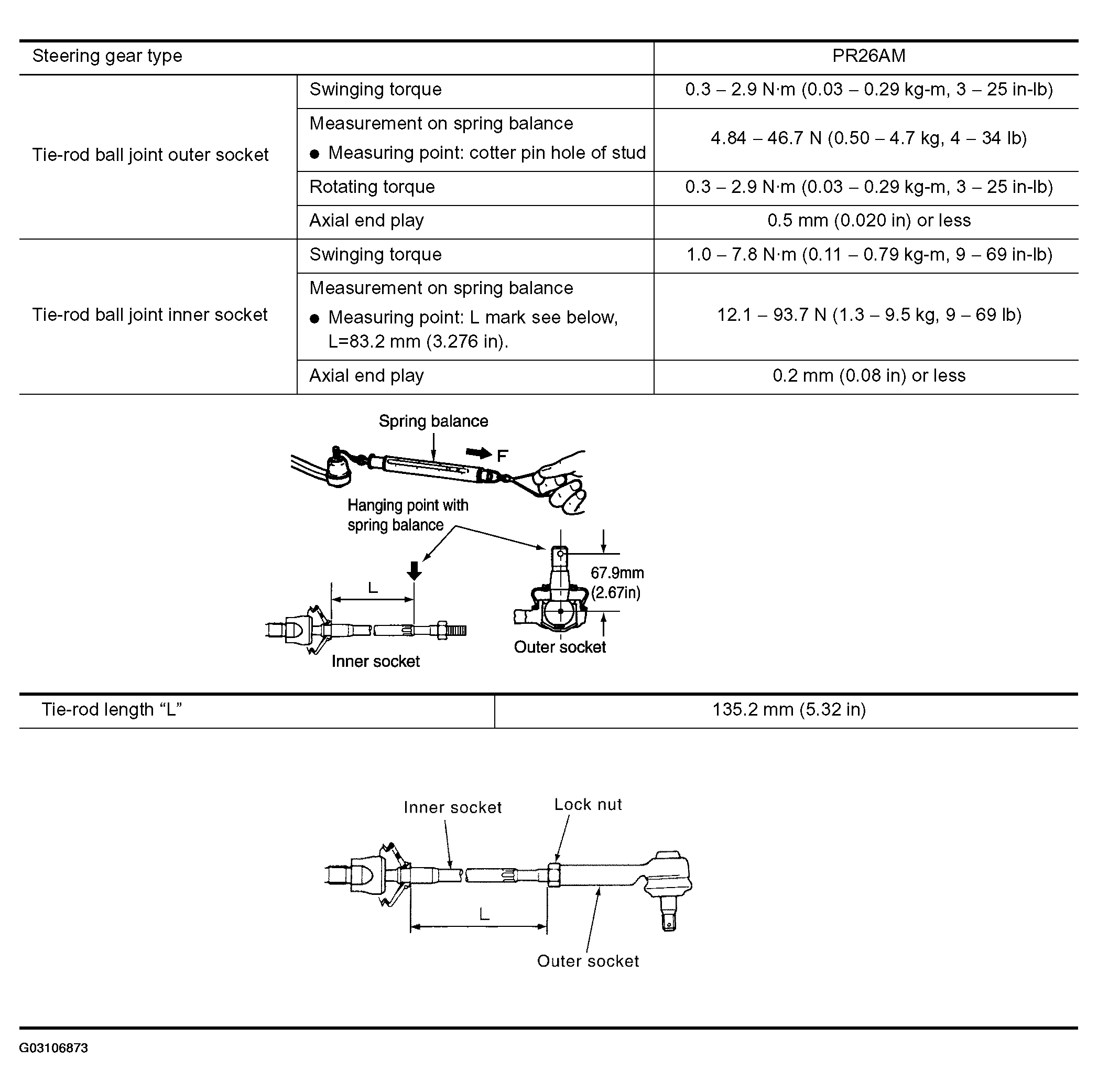

Fig 1: Steering Outer Socket and Inner Socket Specification
G03106873Courtesy of NISSAN MOTOR CO., U.S.A.
