Switch Operation

The system is operated by a master ON/OFF switch and four control switches, all mounted on the steering wheel.

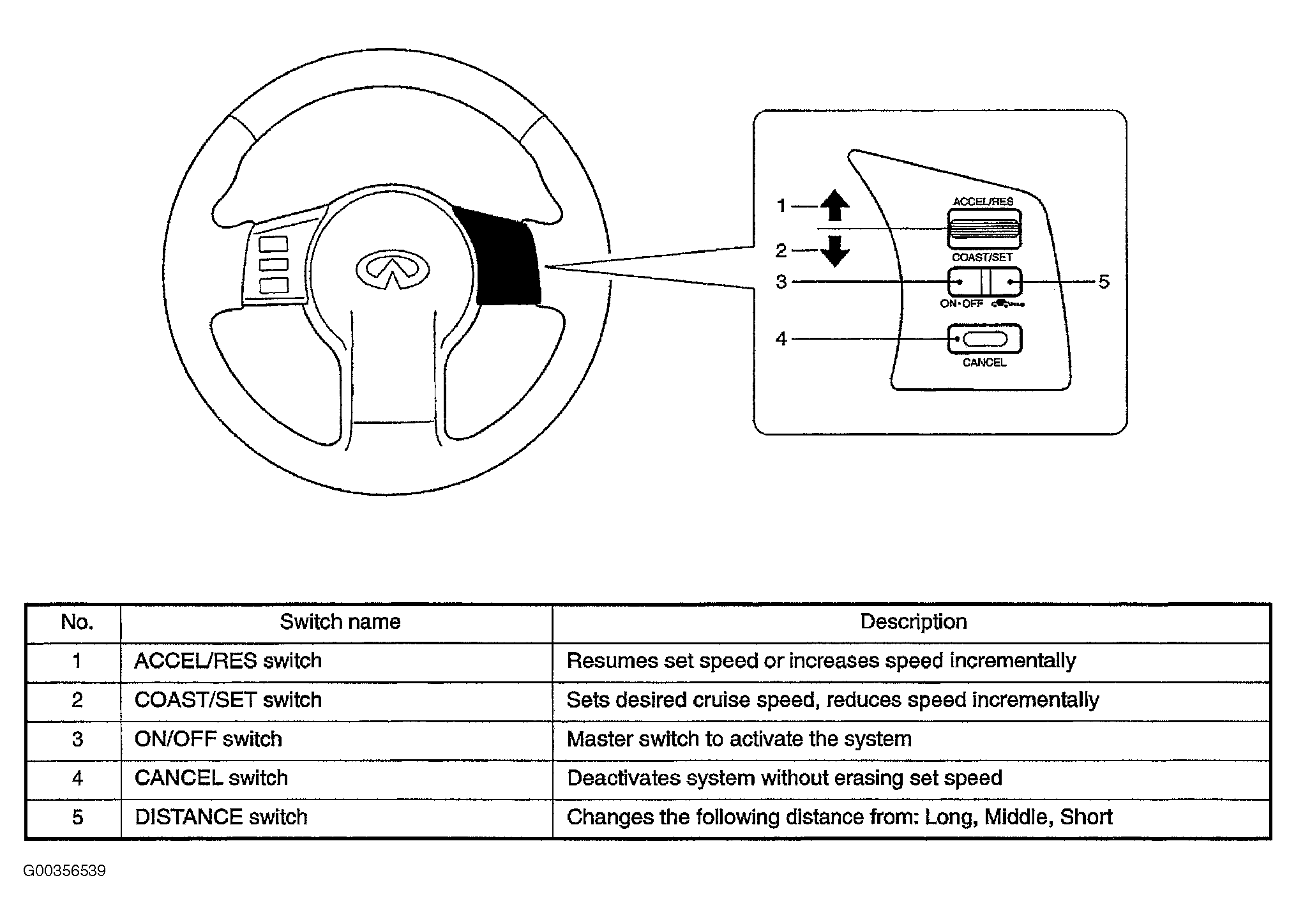

Fig 1: Identifying Switch Operation
G00356539Courtesy of NISSAN MOTOR CO., U.S.A.
