Release Switch

Disconnect booster solenoid/release switch connector and check resistance between terminals. See Fig 1 .

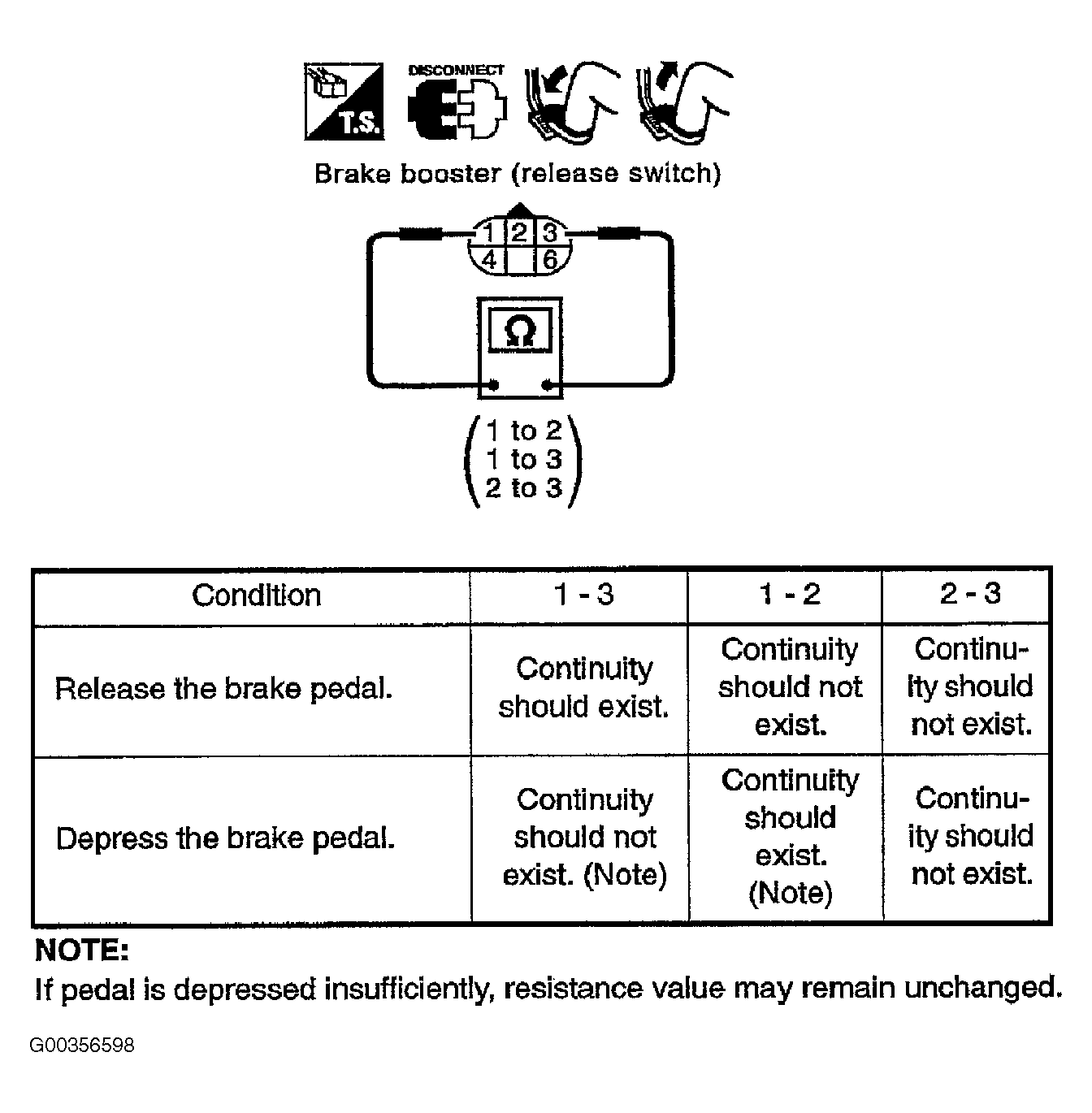

Fig 1: Inspecting Release Switch
G00356598Courtesy of NISSAN MOTOR CO., U.S.A.
