BCM (Body Control Module): Schematic

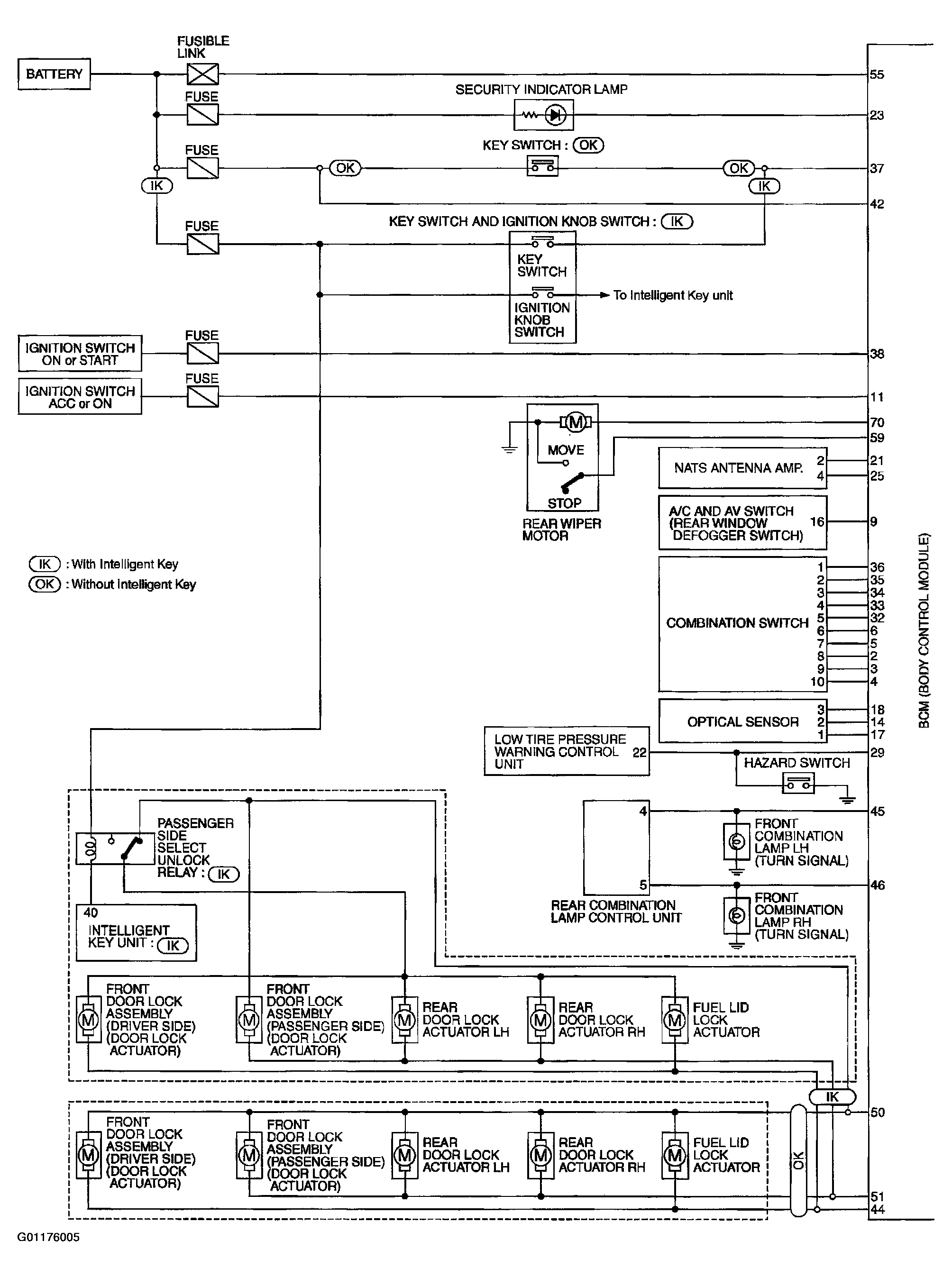

Fig 1: Schematic Diagram (1 Of 2)
G01176005Courtesy of NISSAN MOTOR CO., U.S.A.

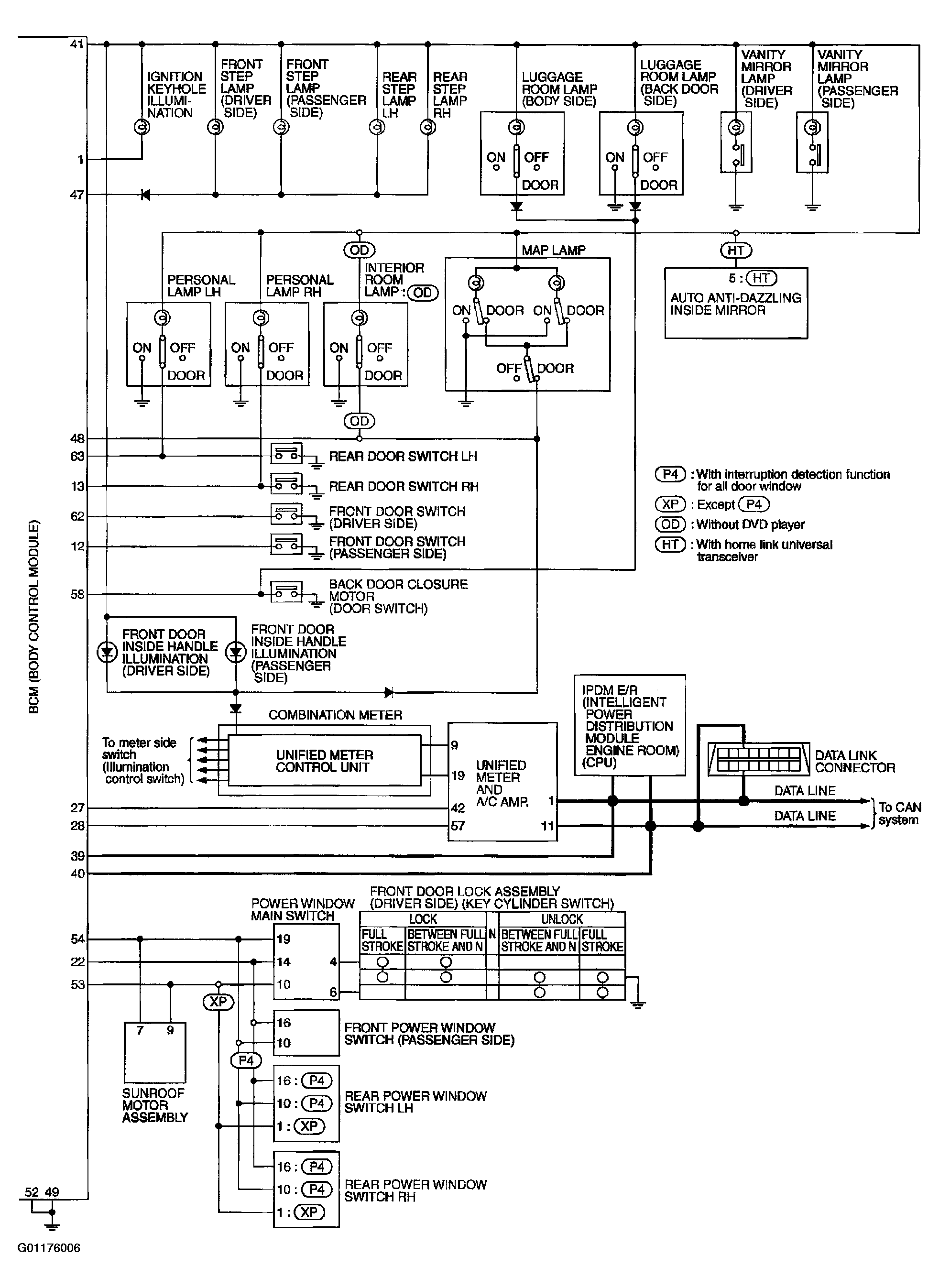

Fig 2: Schematic Diagram (2 Of 2)
G01176006Courtesy of NISSAN MOTOR CO., U.S.A.
