Components (without Automatic Drive Positioner)

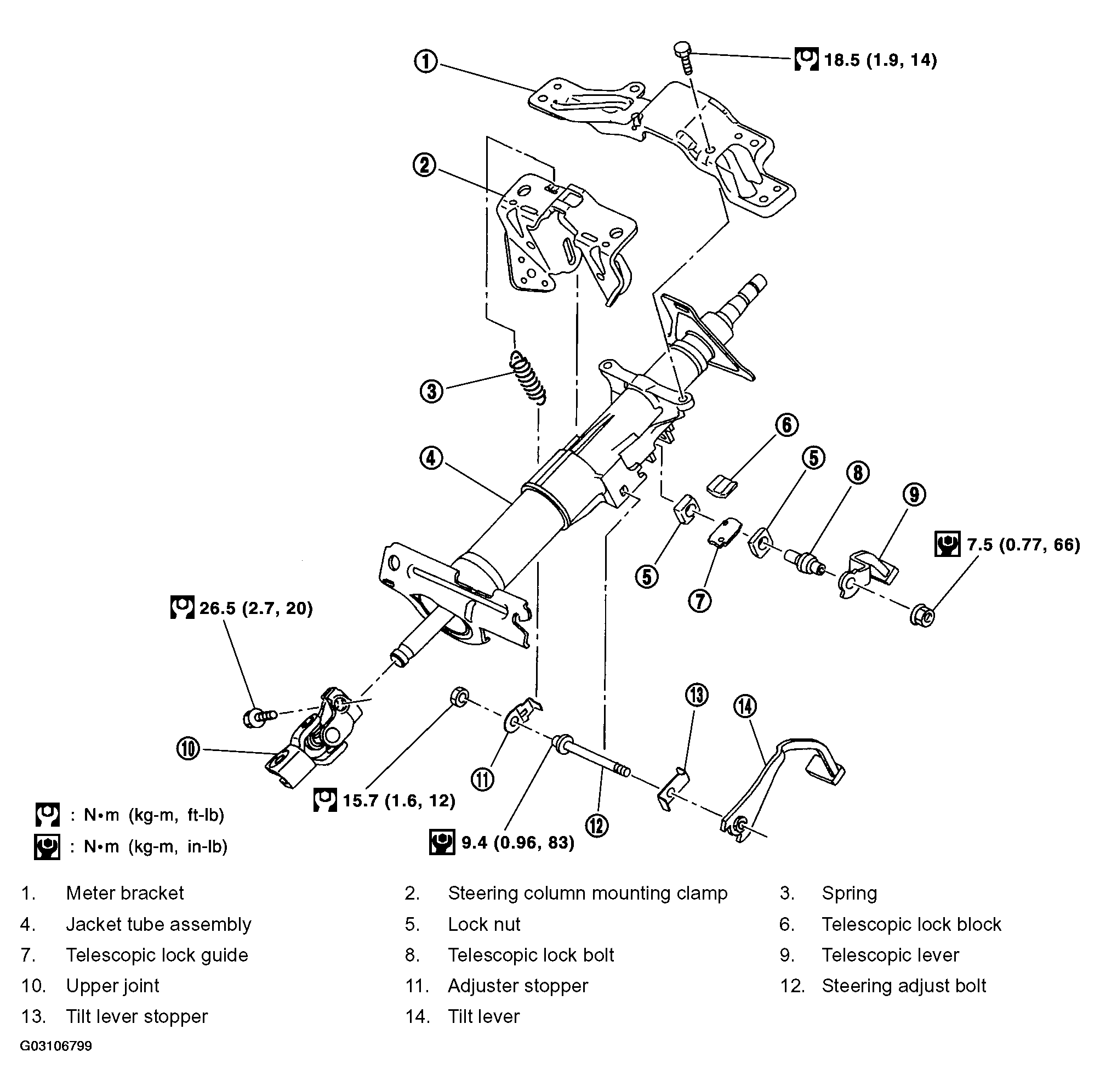

Fig 1: Identifying Components Of Steering Column (Without Automatic Drive Positioner)
G03106799Courtesy of NISSAN MOTOR CO., U.S.A.
