Forward And Overrun Clutches: Components

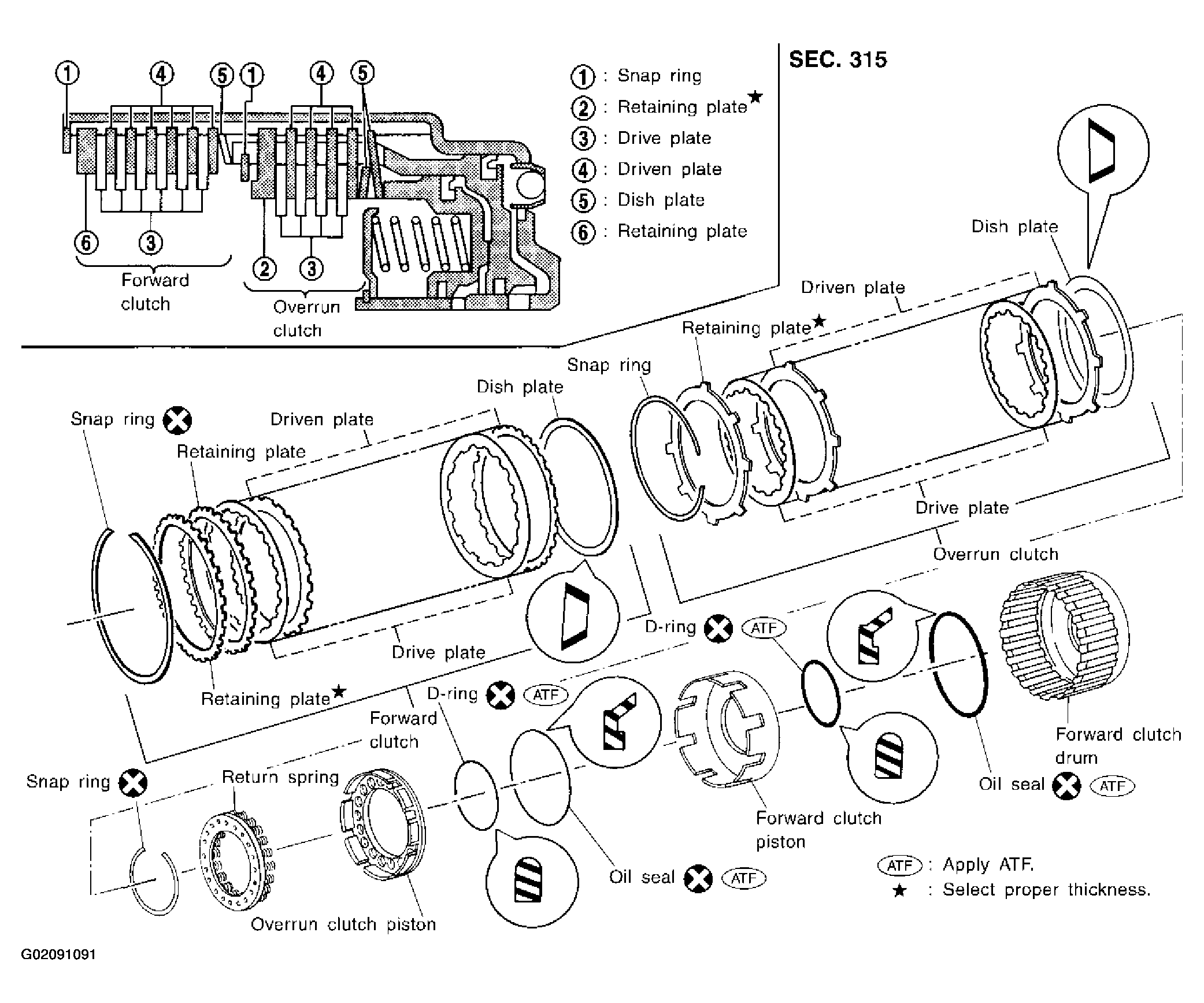

Fig 1: Exploded View Of Forward & Overrun Clutches Component
G02091091Courtesy of NISSAN MOTOR CO., U.S.A.
