Solenoid Valves

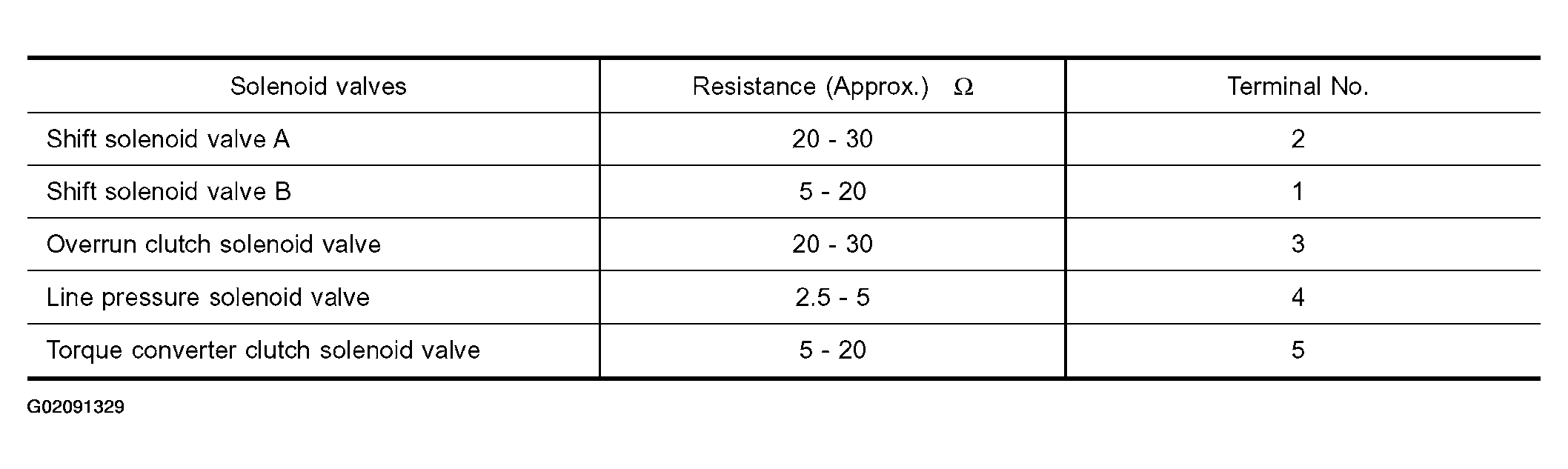

Fig 1: Solenoid Valves Specification

G02091329

Courtesy of NISSAN MOTOR CO., U.S.A.
