Removal and Installation: Notes

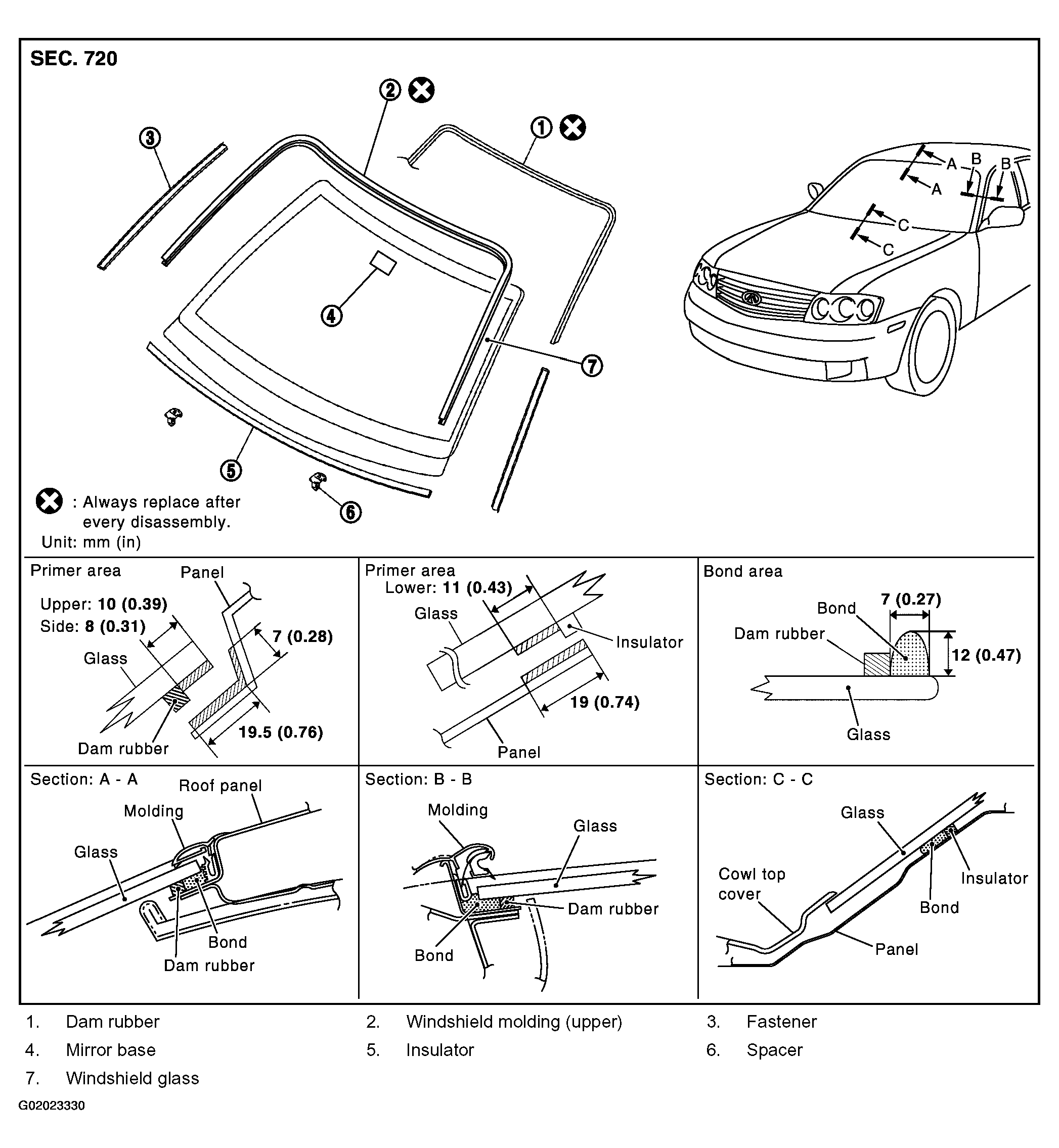

Fig 1: Exploded View Of Wind Shield Glass & Components
G02023330Courtesy of NISSAN MOTOR CO., U.S.A.
