Parking Brake Control: Components

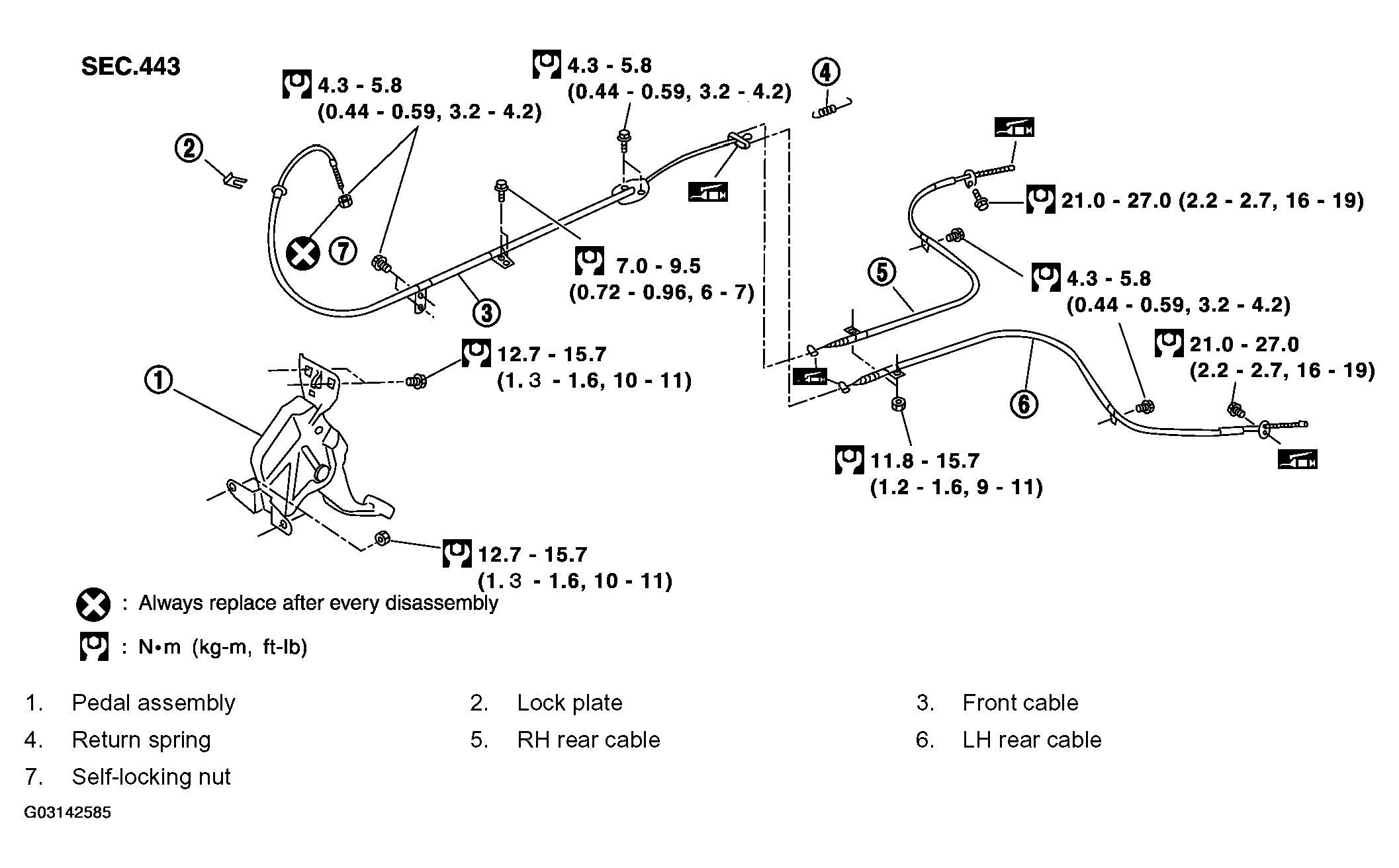

Fig 1: Identifying Parking Brake Control System Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
