Disassembly and Assembly: Notes

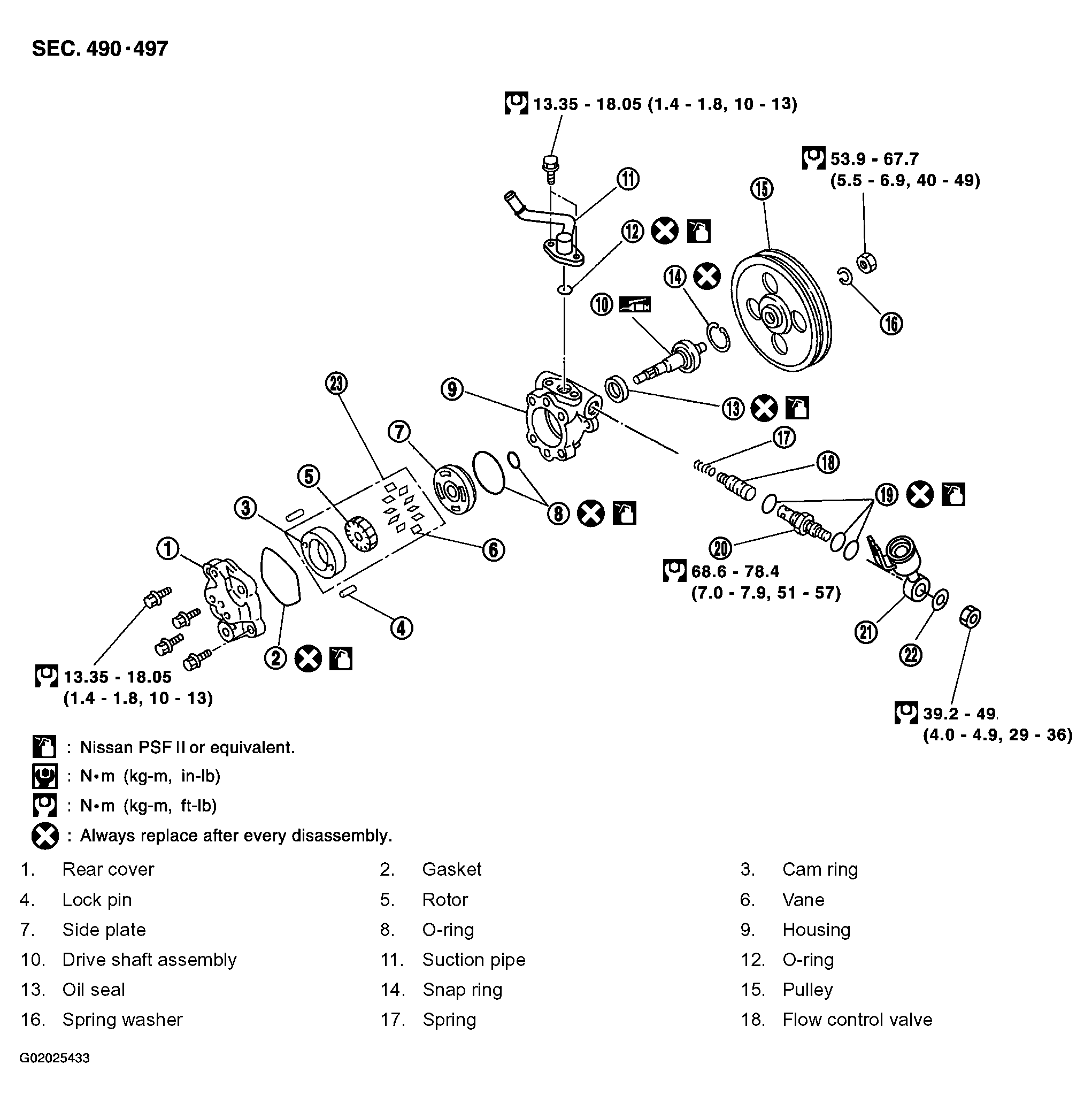

Fig 1: Exploded View Of Power Steering Oil Pump Components And Torque Specifications
G02025433Courtesy of NISSAN MOTOR CO., U.S.A.
