Display Item List

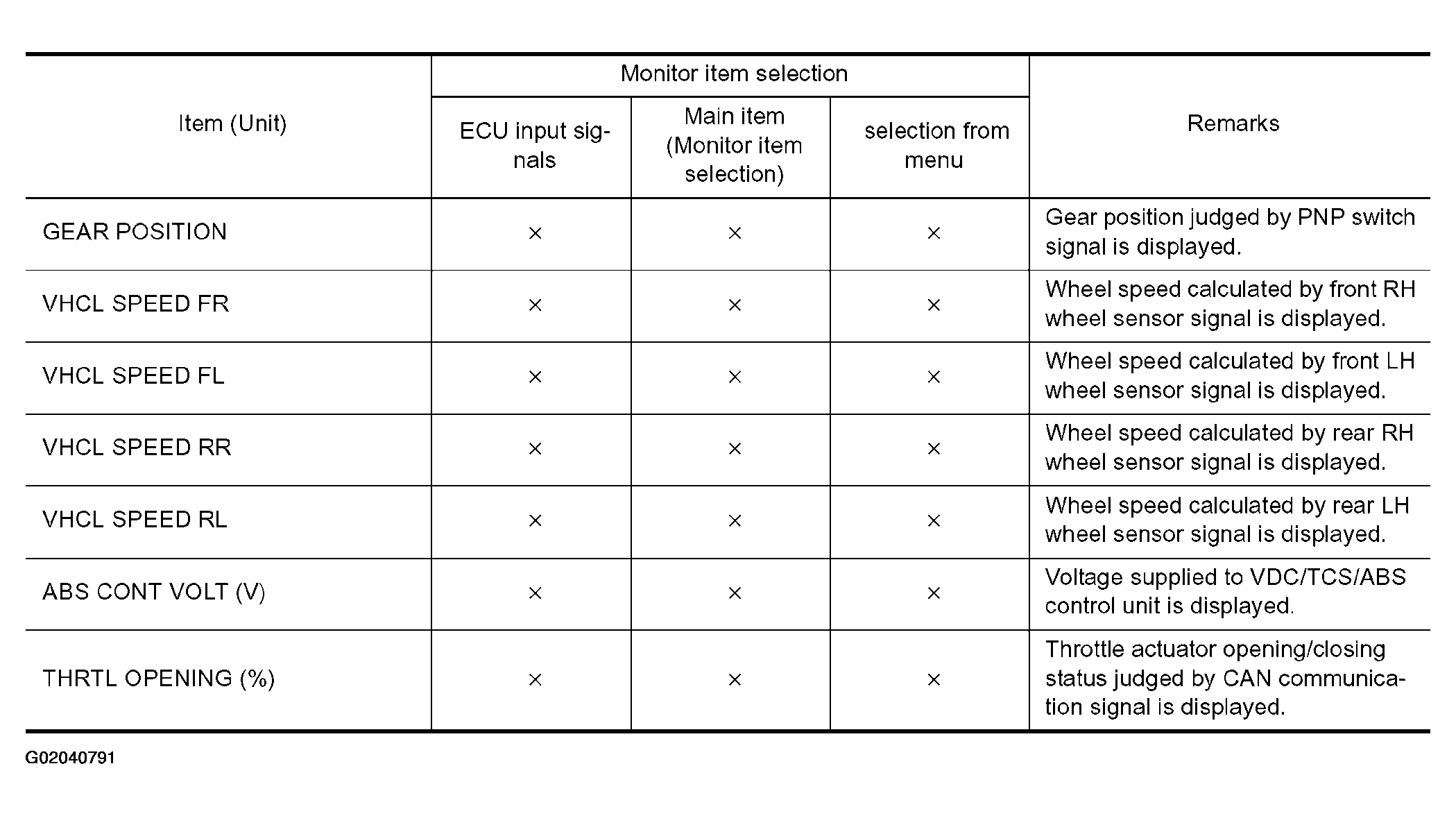

Fig 1: Display Item List (1 Of 2)
G02040791Courtesy of NISSAN MOTOR CO., U.S.A.

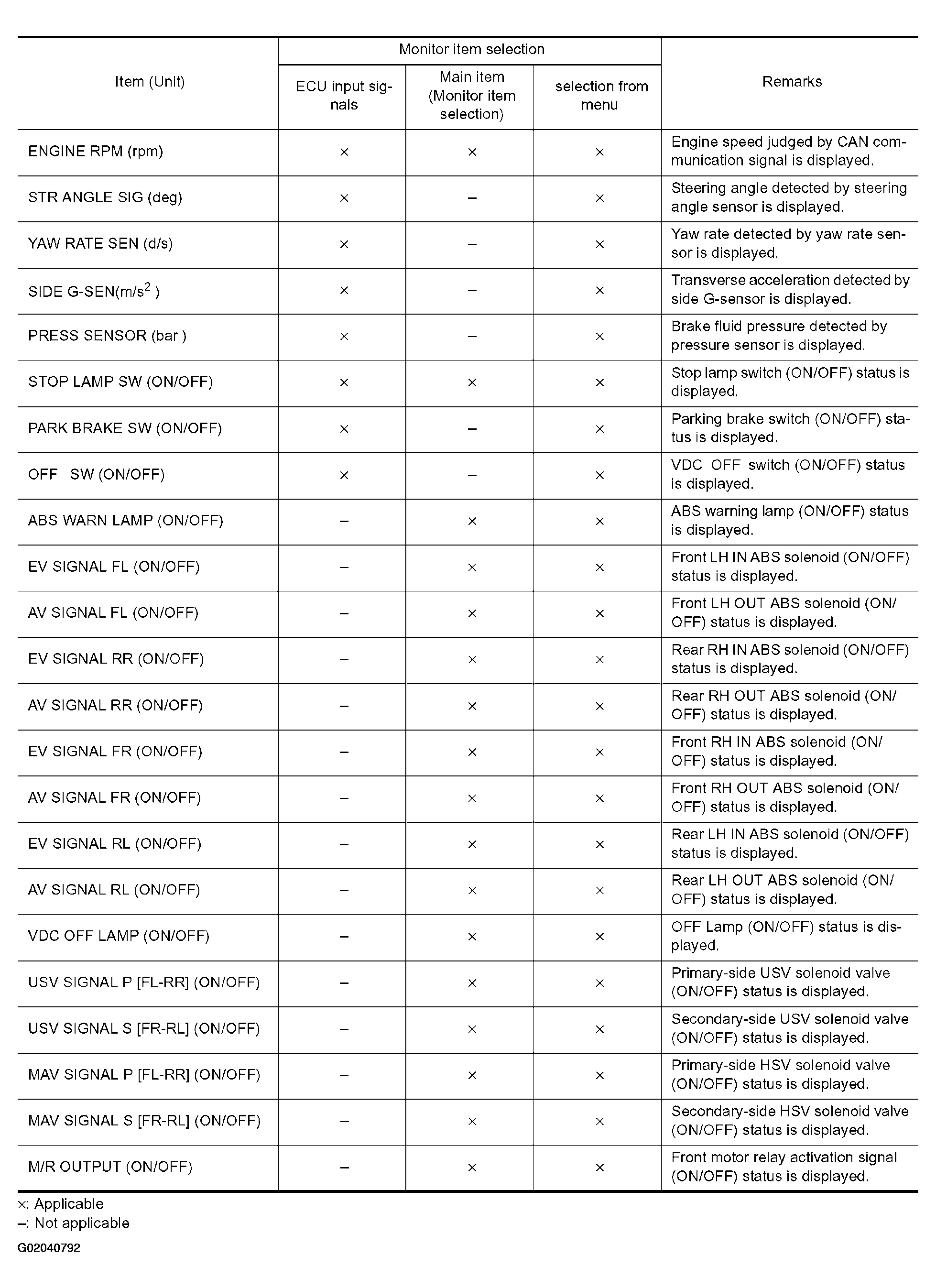

Fig 2: Display Item List (2 Of 2)
G02040792Courtesy of NISSAN MOTOR CO., U.S.A.
