Wheel Alignment Inspection: Components

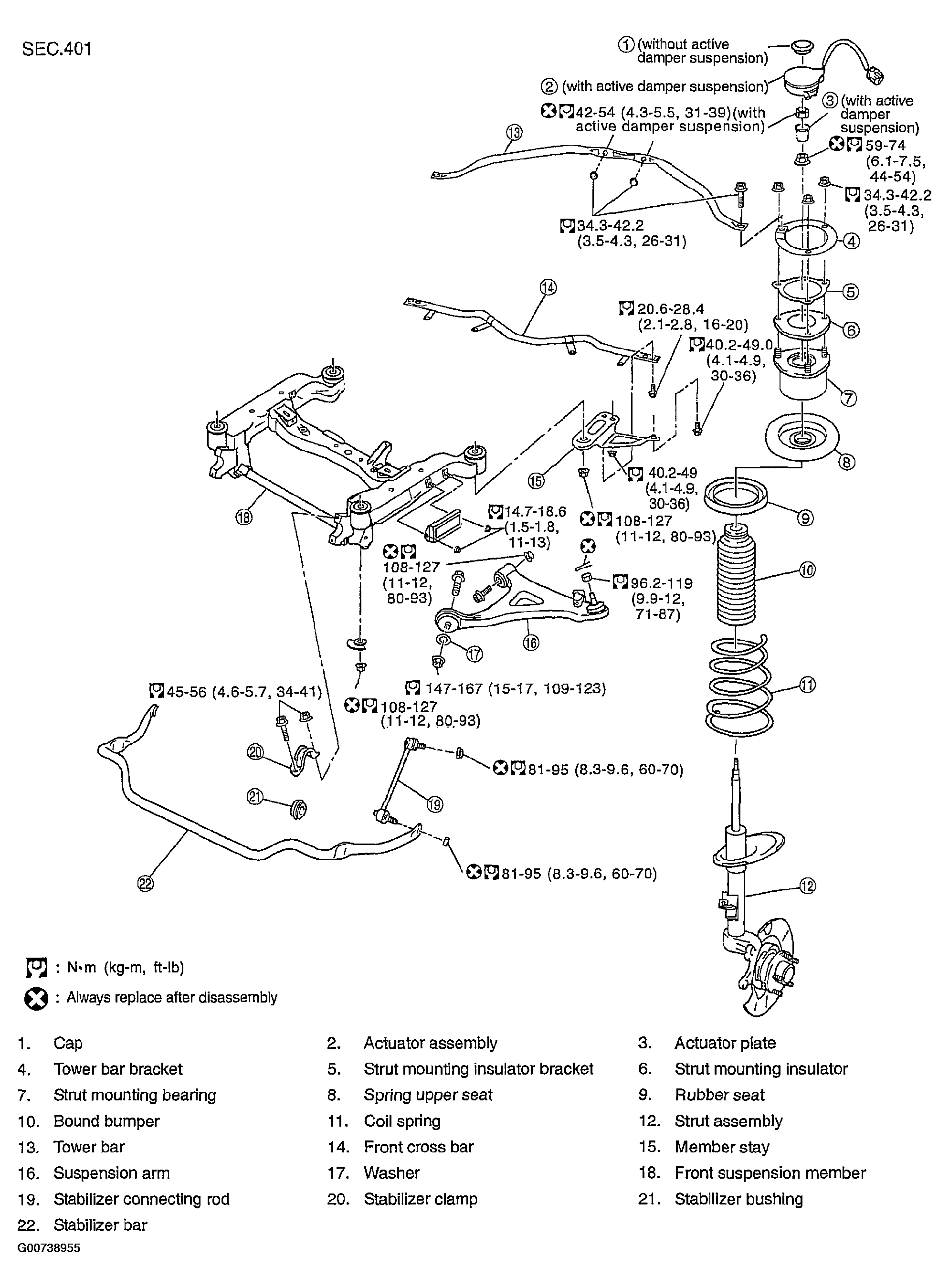

Fig 1: Suspension Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
