Service Data And Specifications (SDS): Alternator

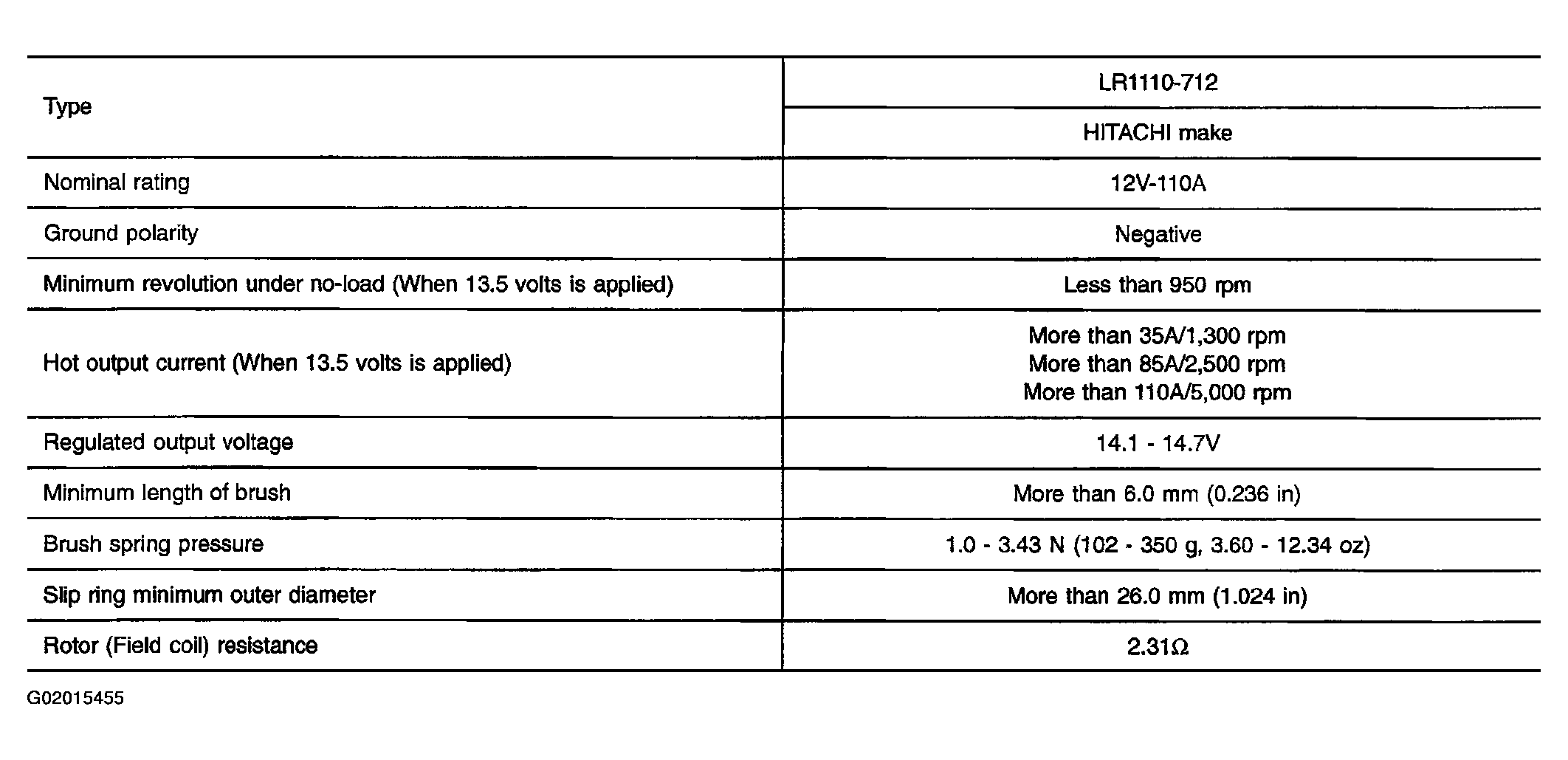

Fig 1: Alternator Specifications

G02015455

Courtesy of NISSAN MOTOR CO., U.S.A.
