Key Interlock Cable: Removal

Unlock slider from adjuster holder and remove rod from cable.

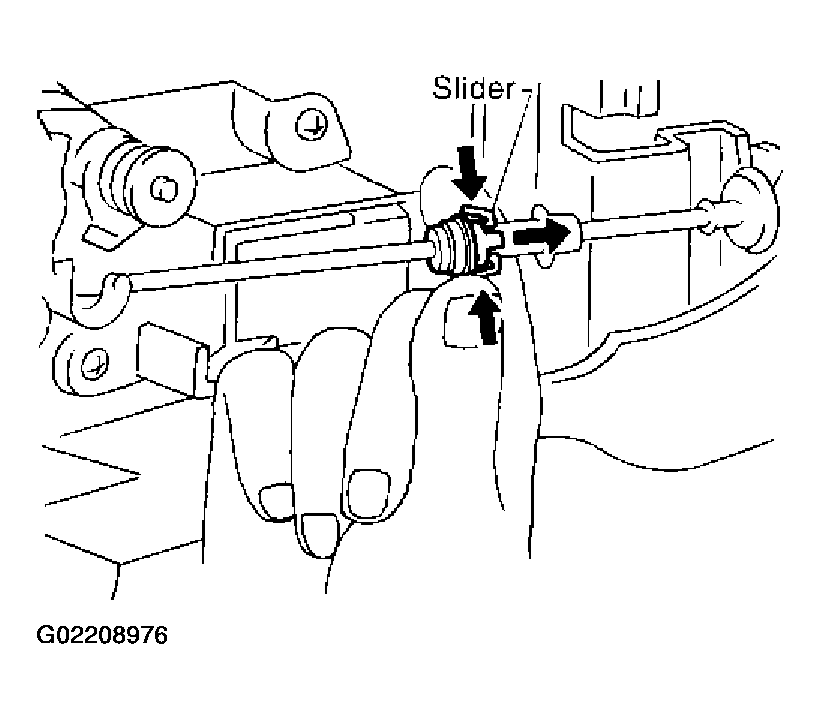

Fig 1: Adjusting Holder & Removing Rod From Cable
G02208976Courtesy of NISSAN MOTOR CO., U.S.A.
