Removal And Installation: Installation: Notes

Drive plate runout
Maximum allowable runout:

Refer to FLYWHEEL/DRIVE PLATE RUNOUT .

If this runout is out of specification, replace drive plate with ring gear.

Fig 1: Identifying Driving Plate Runout
Courtesy of NISSAN MOTOR CO., U.S.A.
When connecting torque converter to transmission, measure distance A to be certain that they are correctly assembled.
Distance A:

25.0 mm (0.984 in) or more

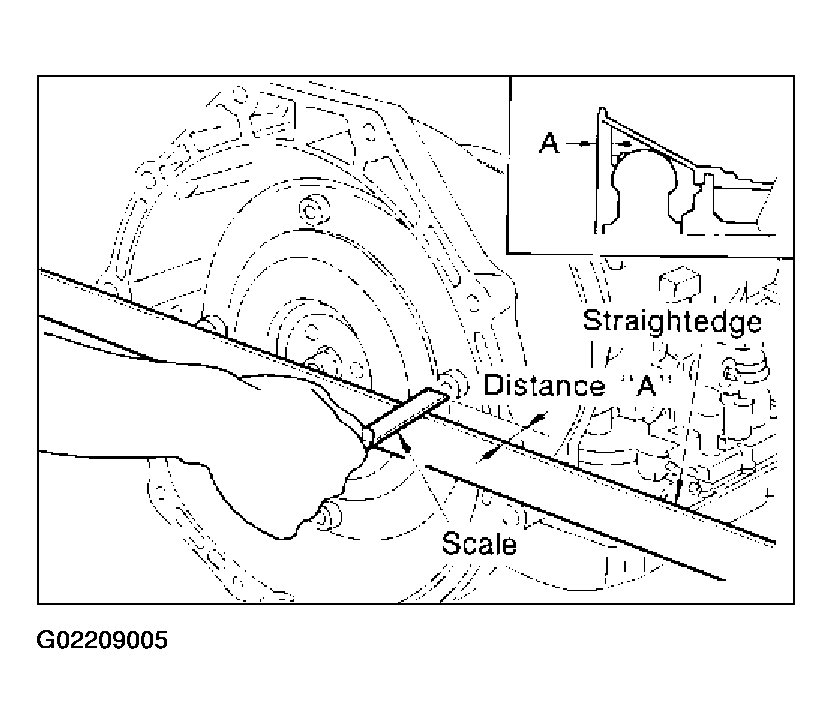

Fig 2: Measuring Distance A
Courtesy of NISSAN MOTOR CO., U.S.A.
Install converter to drive plate.
- After converter is installed to drive plate, rotate crankshaft several turns and check to be sure that transmission rotates freely without binding.

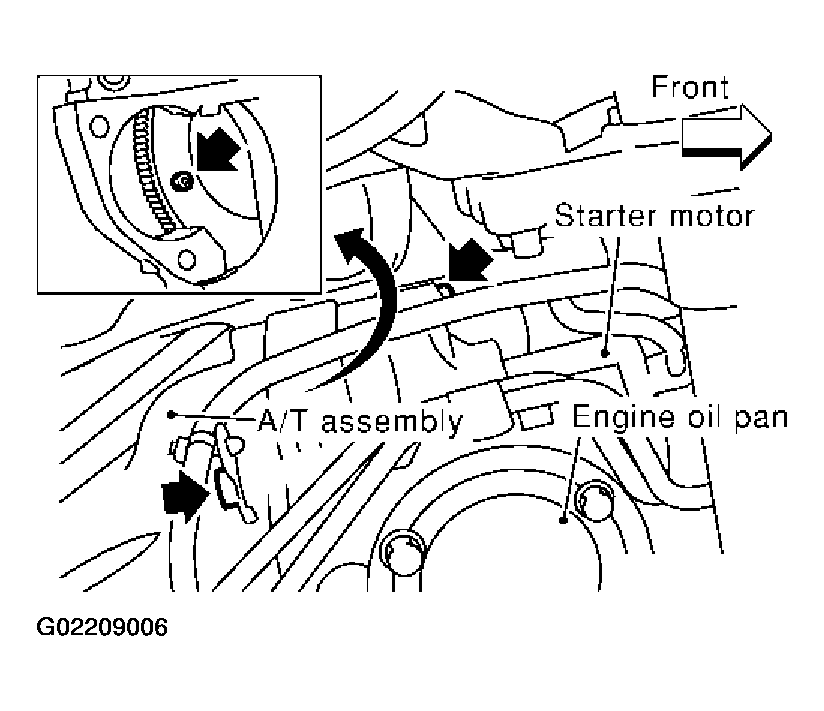

  Fig 3: Installing Converter To Drive Plate
  Courtesy of NISSAN MOTOR CO., U.S.A.
Tighten bolts securing transmission.

Fig 4: Displaying Bolt Tightening Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Reinstall any part removed.

Fig 5: Locating Bolts Tightening Sequence
Courtesy of NISSAN MOTOR CO., U.S.A.
Check fluid level in transmission.
Move selector lever through all positions to be sure that transmission operates correctly.
With parking brake applied, rotate engine at idling. Move selector lever through N to D, to 2, to 1 and to R positions.

A slight shock should be felt by hand gripping selector each time transmission is shifted.

Fig 6: Checking Fluid Level In Transmission

Courtesy of NISSAN MOTOR CO., U.S.A.
