Transfer Gear Control

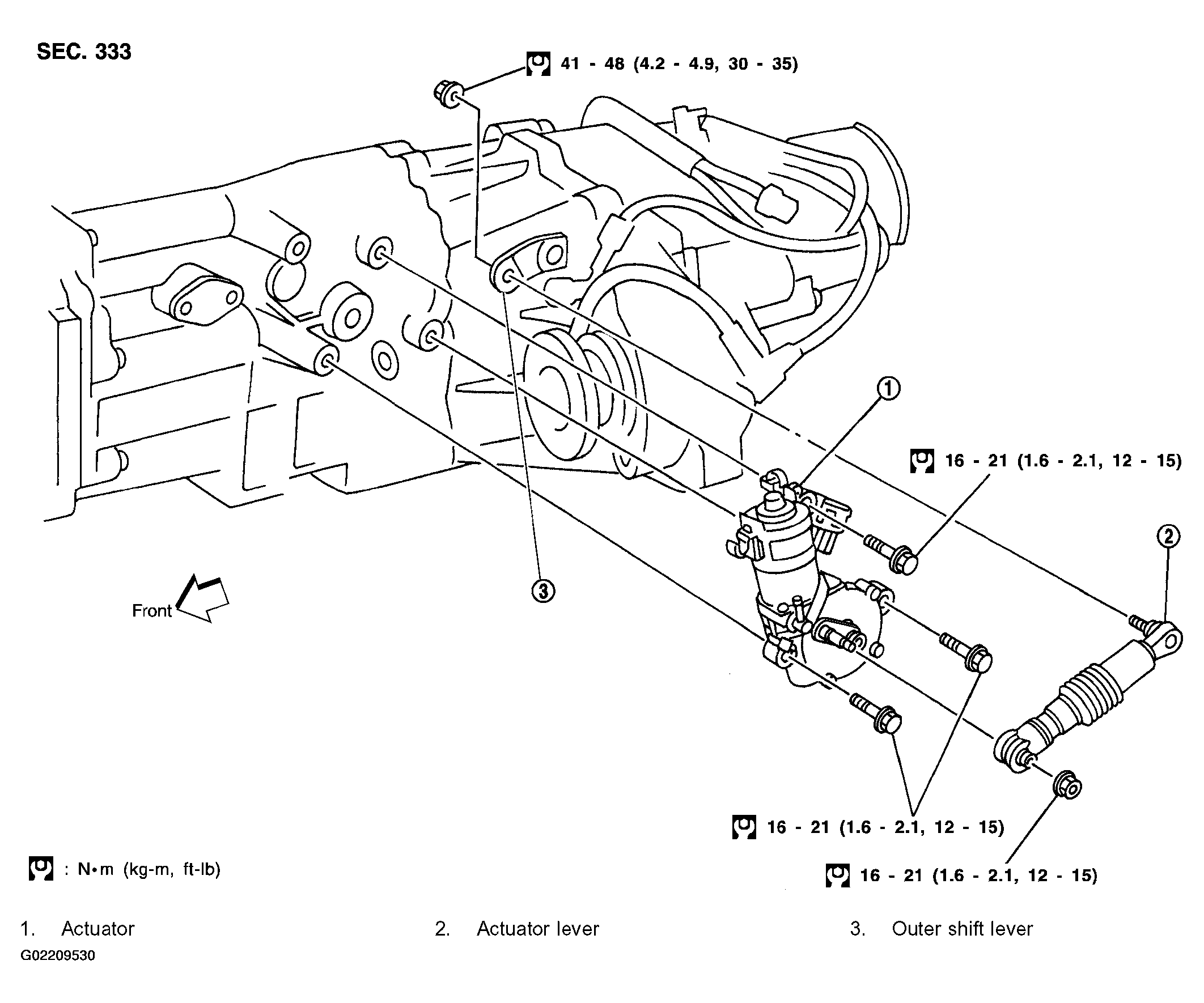

Fig 1: Exploded View Of Transfer Gear Control With Torque Specification
G02209530Courtesy of NISSAN MOTOR CO., U.S.A.
