Terminals and Reference Value for NAVI Control Unit

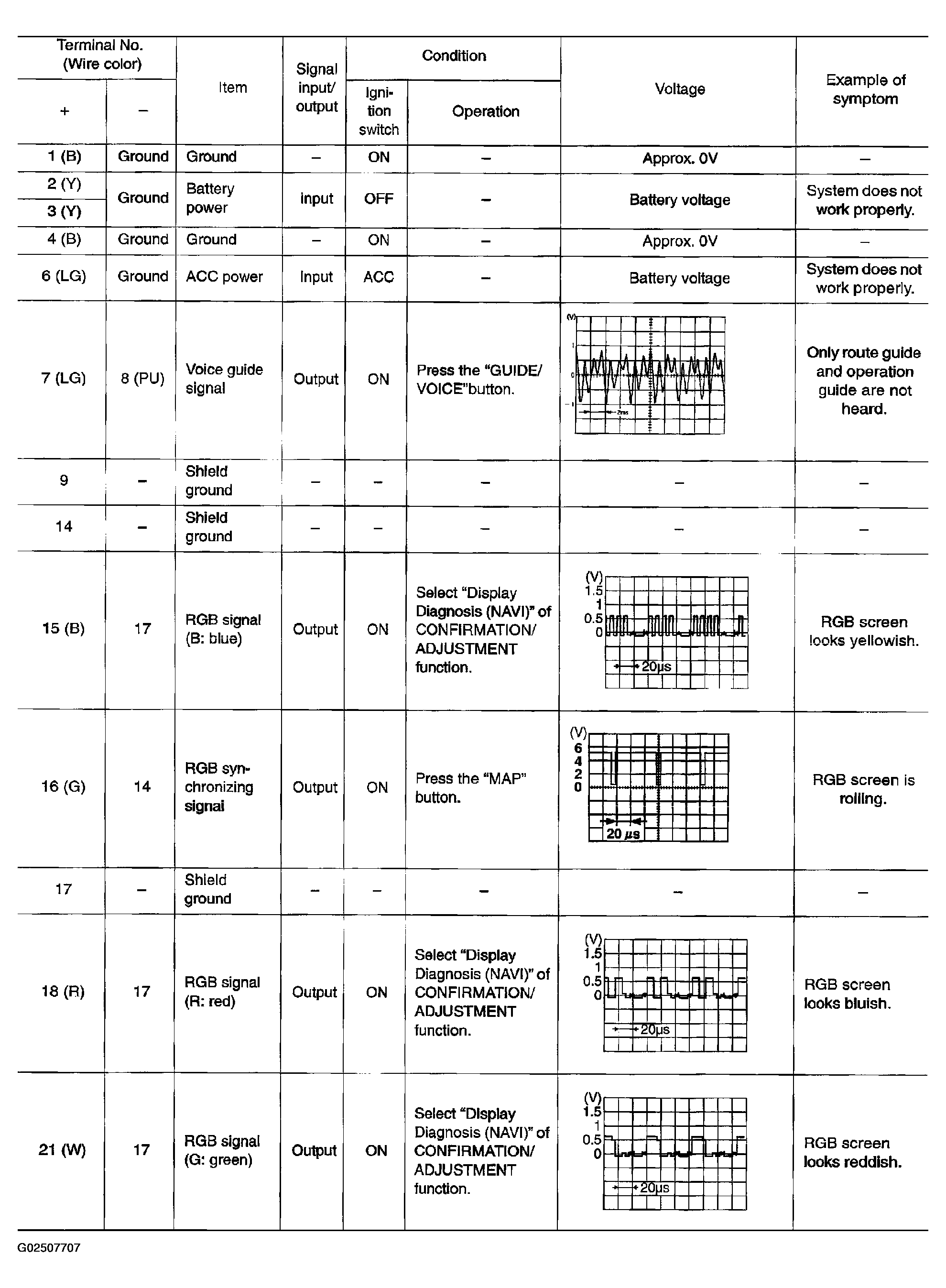

Fig 1: Terminals And Reference Value For NAVI Control Unit (1 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

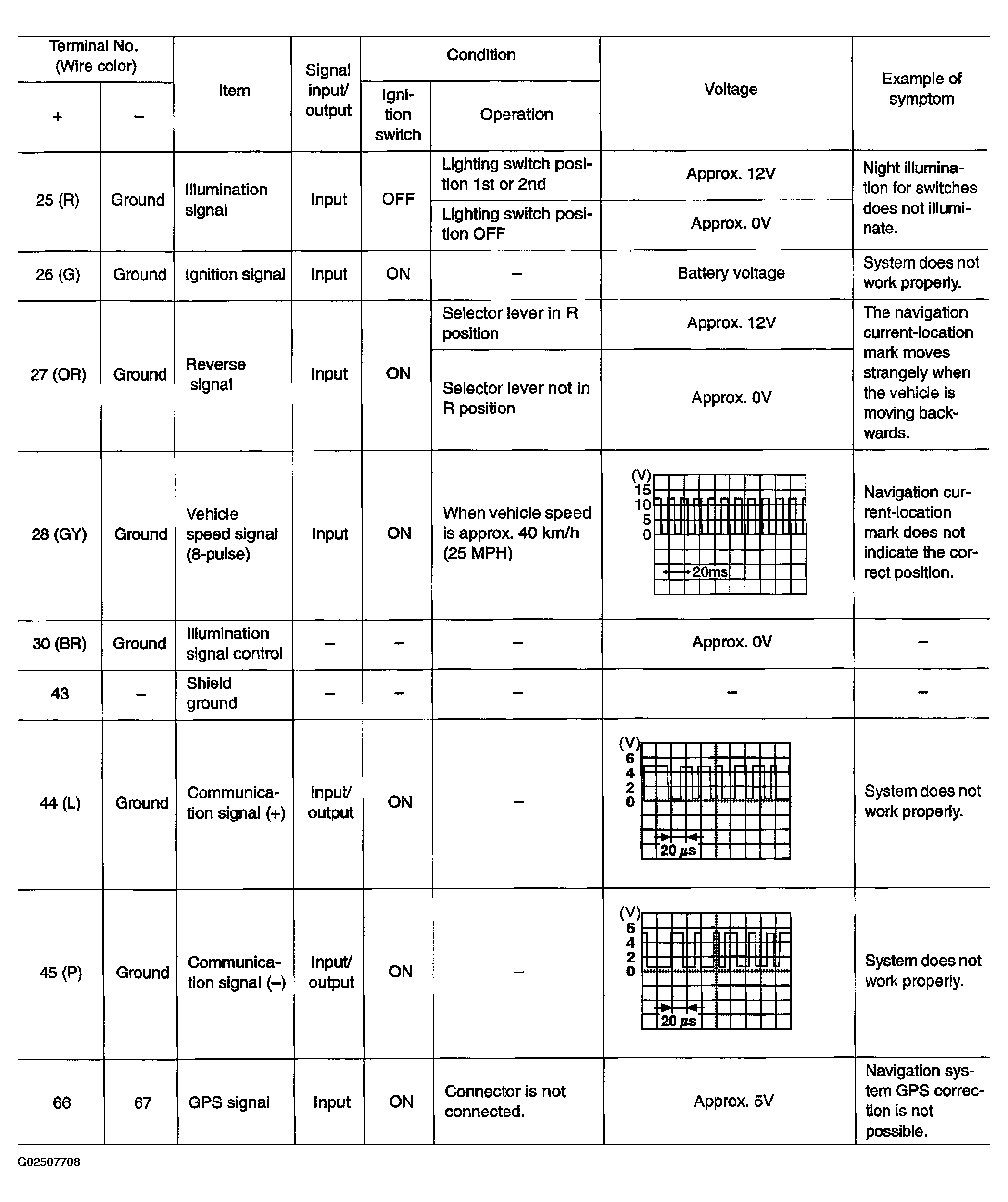

Fig 2: Terminals And Reference Value For NAVI Control Unit (2 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
