Camshaft Position Sensor (PHASE)

  1. Loosen the fixing bolt of the sensor.
  2. Disconnect camshaft position sensor (PHASE) harness connector.
  3. Remove the sensor.
  4. Visually check the sensor for chipping. See Figure.
  5. Check resistance as shown in Fig 1.

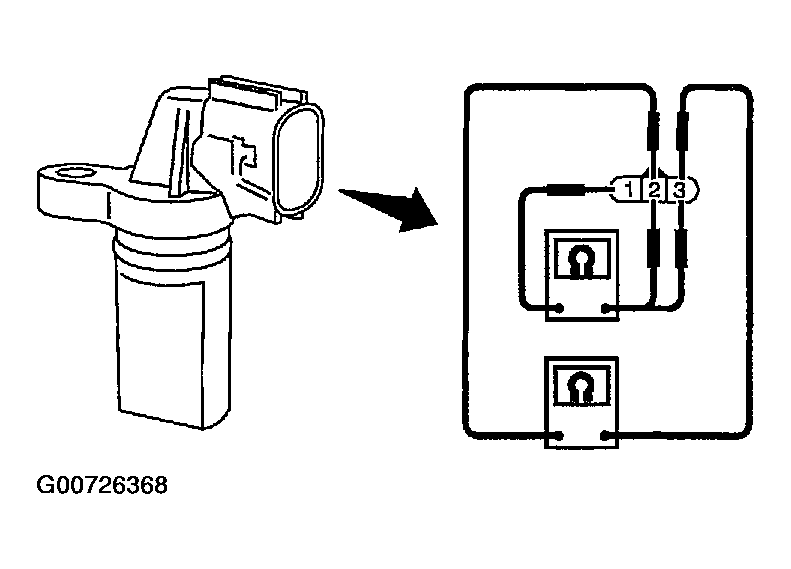

    Fig 1: Testing Camshaft Position Sensor
    G00726368Courtesy of NISSAN MOTOR CO., U.S.A.

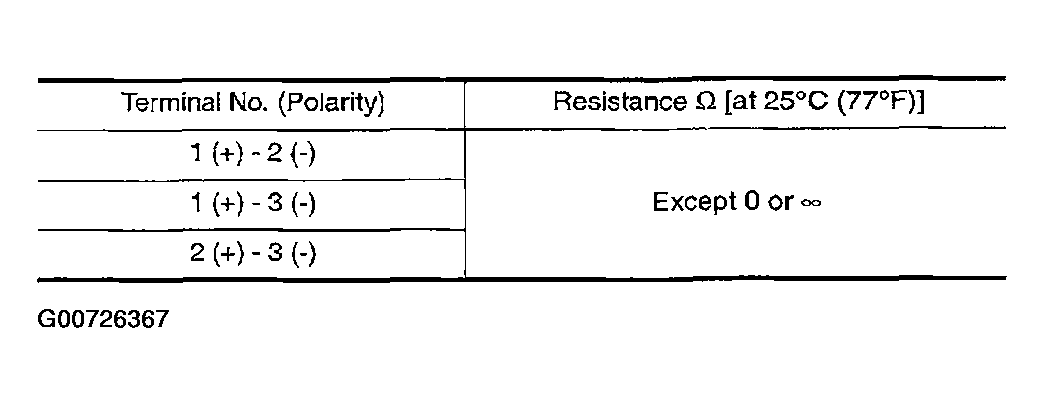

    Fig 2: Identifying Camshaft Position Sensor Specifications
    G00726367Courtesy of NISSAN MOTOR CO., U.S.A.
