Repair and Diagnosis
>>
Engine Performance
>>
Engine Control System
>>
Evaporative Emission System
>>
Description
>>
Evaporative Emission Line Drawing
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Evaporative Emission Line Drawing

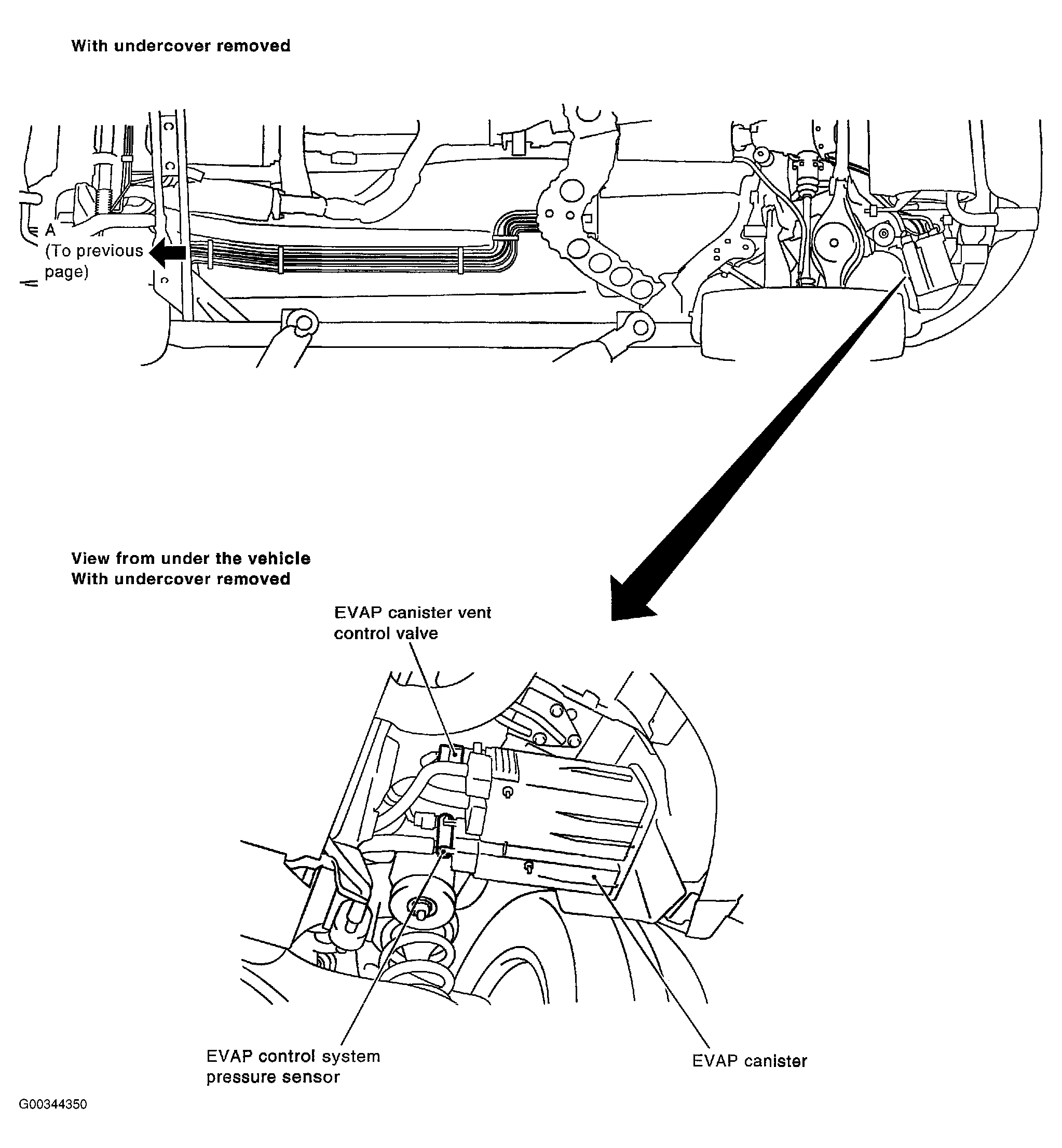

Fig 1: Identifying Evaporative Emission System Components (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

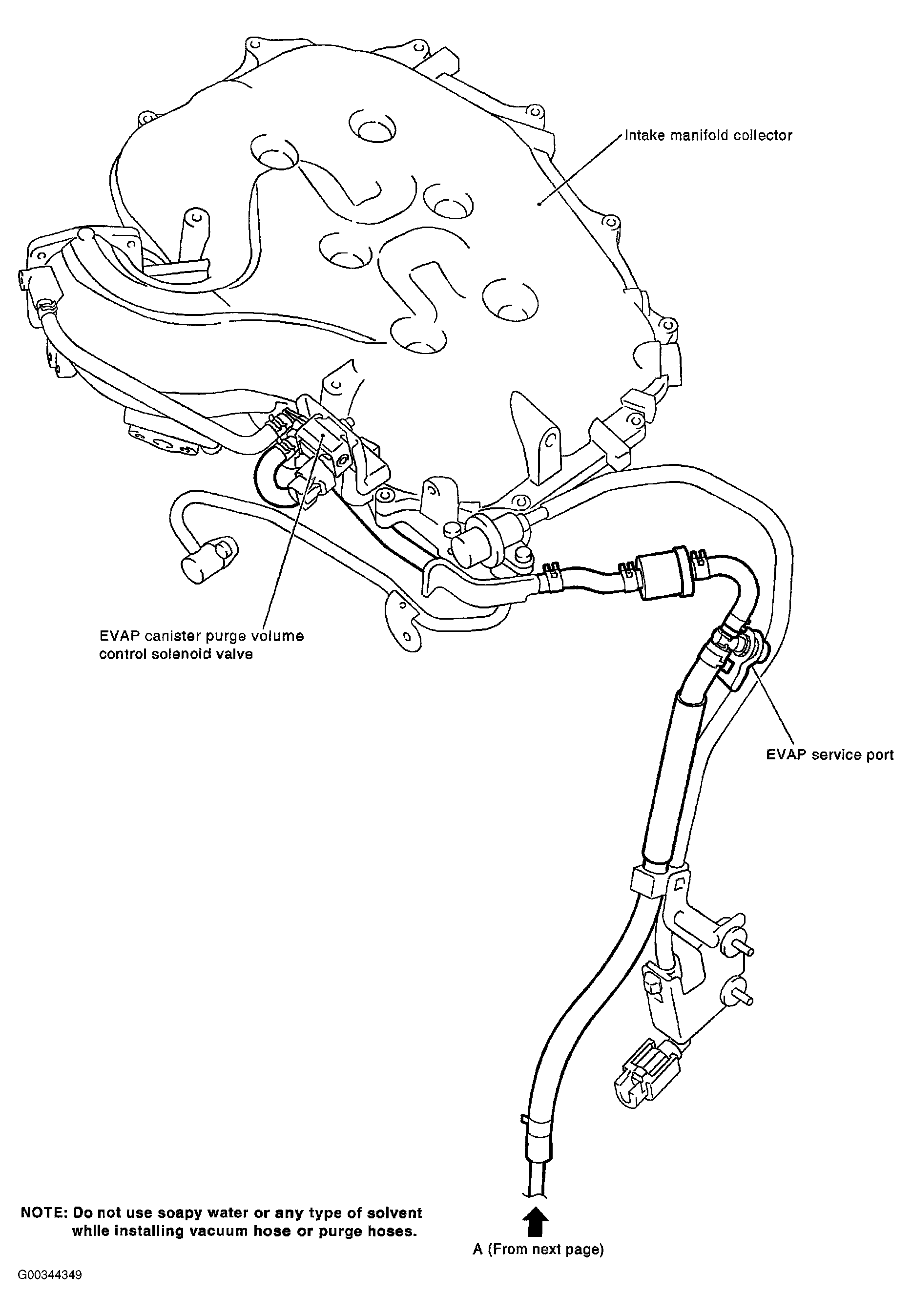

Fig 2: Identifying Evaporative Emission System Components (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
