Relationship Between Mil, DTC, 1ST Trip DTC And Driving Patterns Except For "Misfire Exhaust Quality Deterioration", "Fuel Injection System"

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

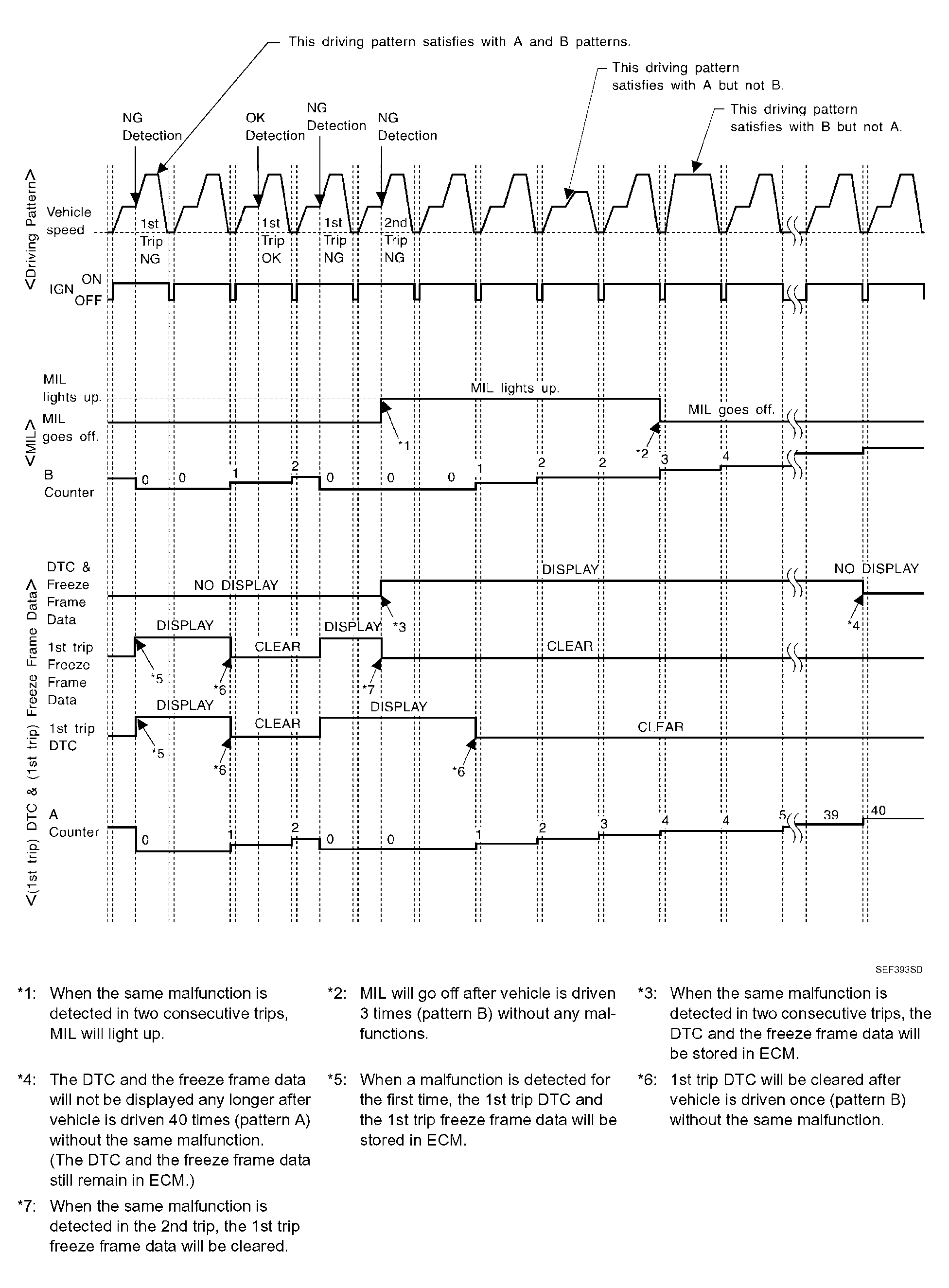

Fig 1: Driving Pattern Graph
G04202547Courtesy of NISSAN MOTOR CO., U.S.A.
