Terminals And Reference Value For A/C And Av Switch

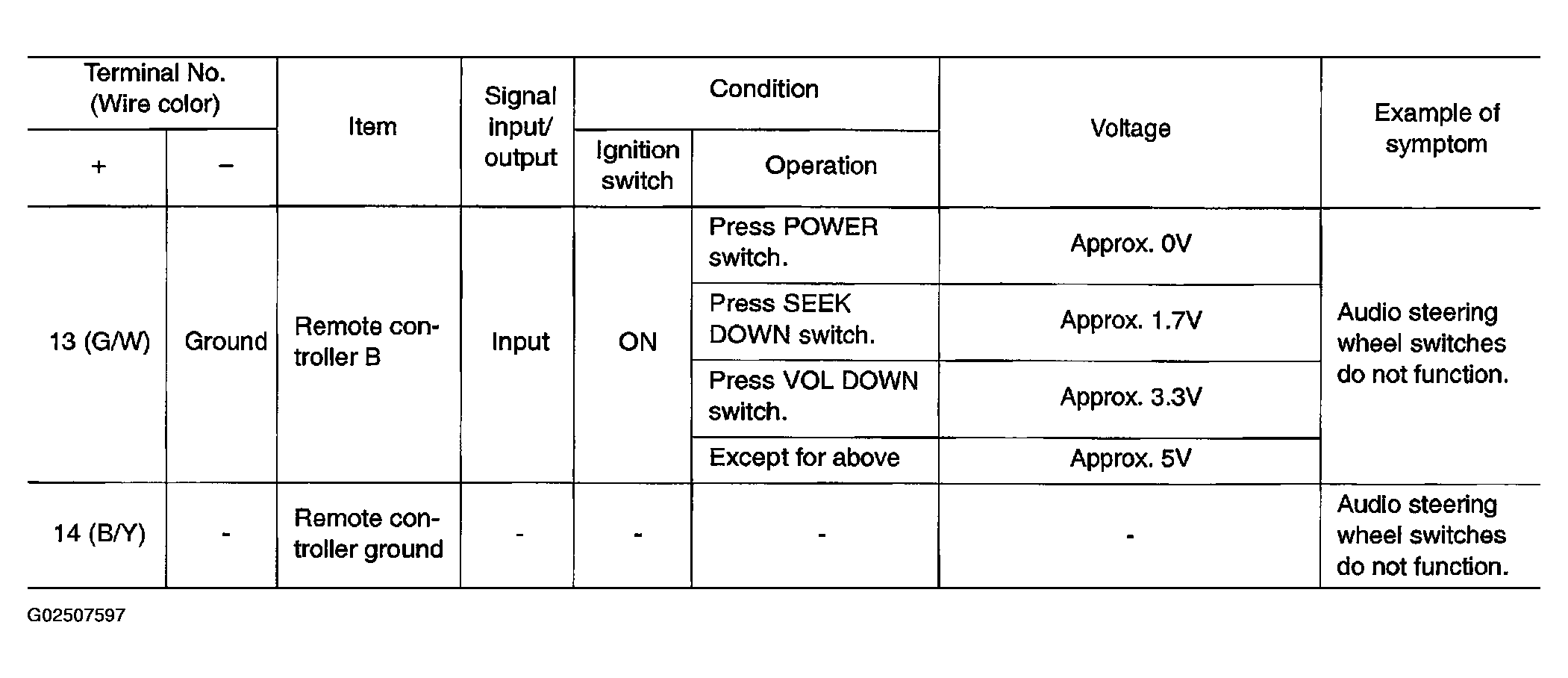

Fig 1: Displaying Terminal Reference Values For A/C & AV Switch (1 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

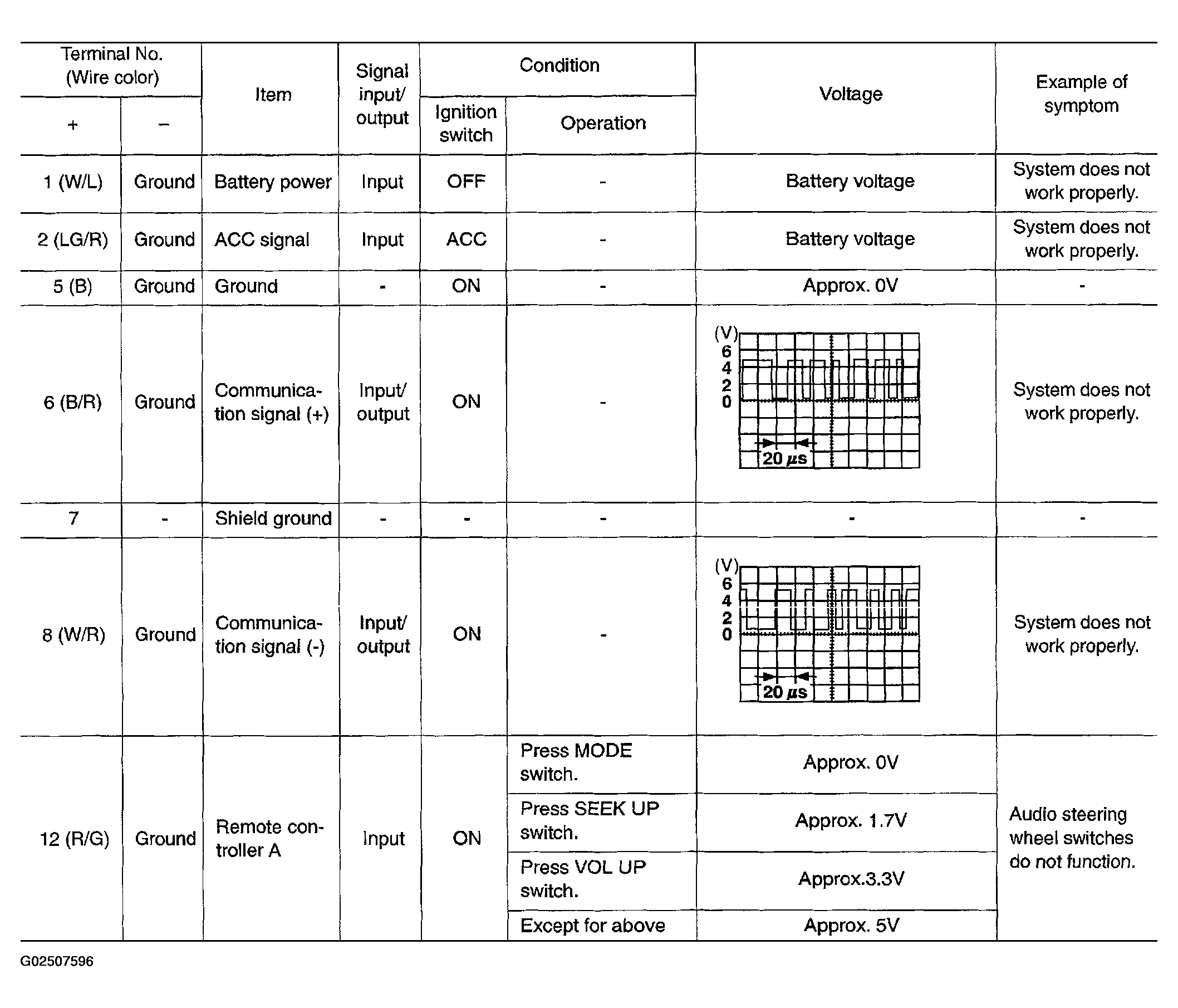

Fig 2: Displaying Terminal Reference Values For A/C & AV Switch (2 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
