3. Check Detention Switch

Check continuity between A/T device (detention switch) terminals 2 and 3.

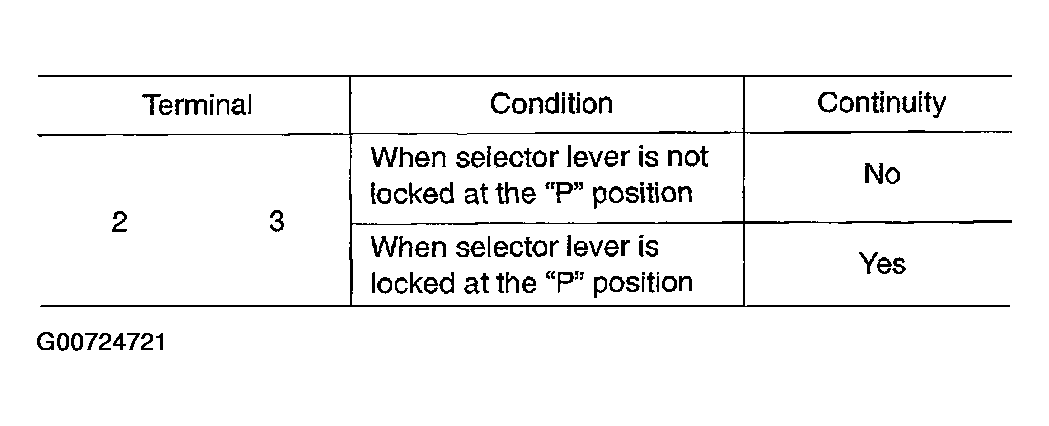

Fig 1: Detention Switch Continuity Table

Courtesy of NISSAN MOTOR CO., U.S.A.

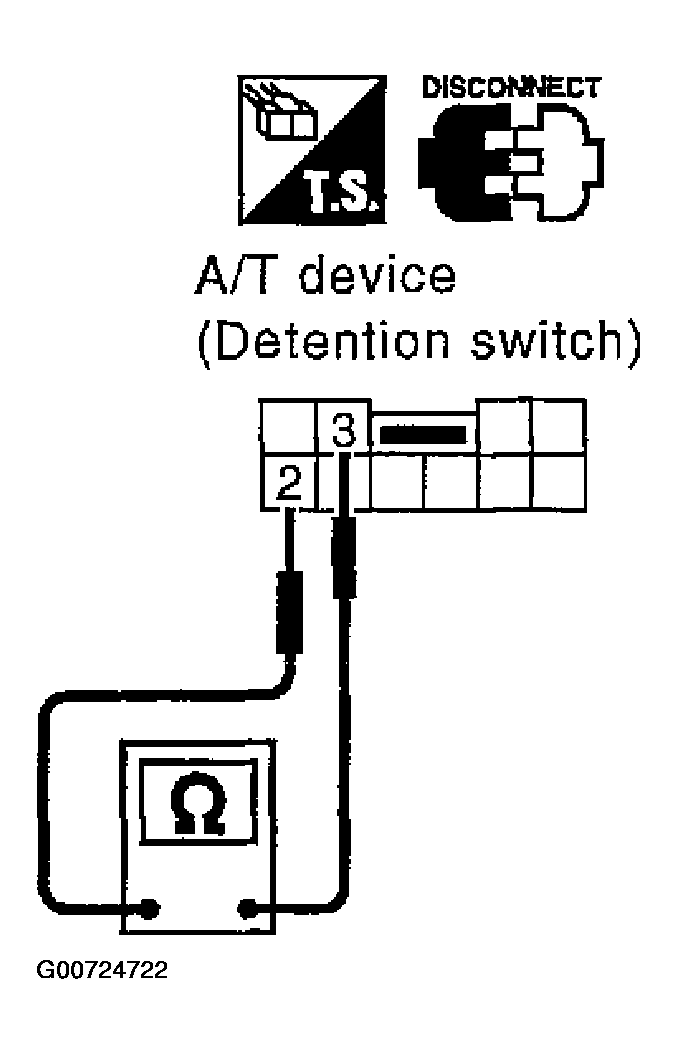

Fig 2: Checking Continuity Between A/T Device (Detention Switch) Terminals 2 And 3

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : GO TO 4.

NG : Replace back A/T device (detention switch).
