2. Check Key Switch

Check continuity between key switch and ignition knob switch as follows.

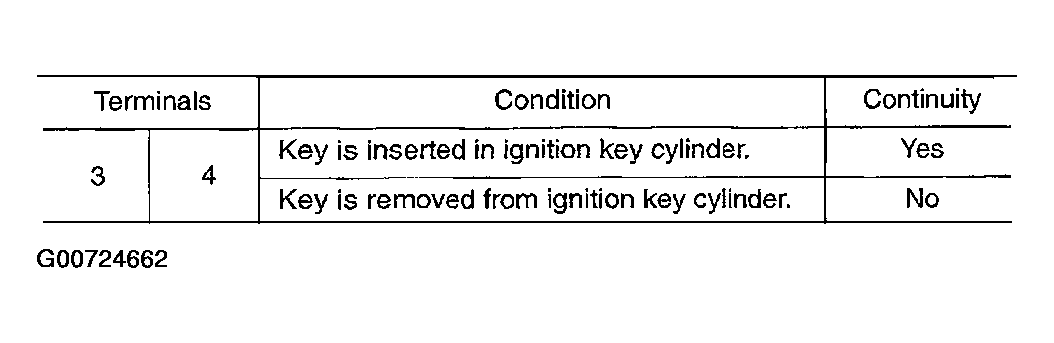

Fig 1: Key Switch Continuity Table

Courtesy of NISSAN MOTOR CO., U.S.A.

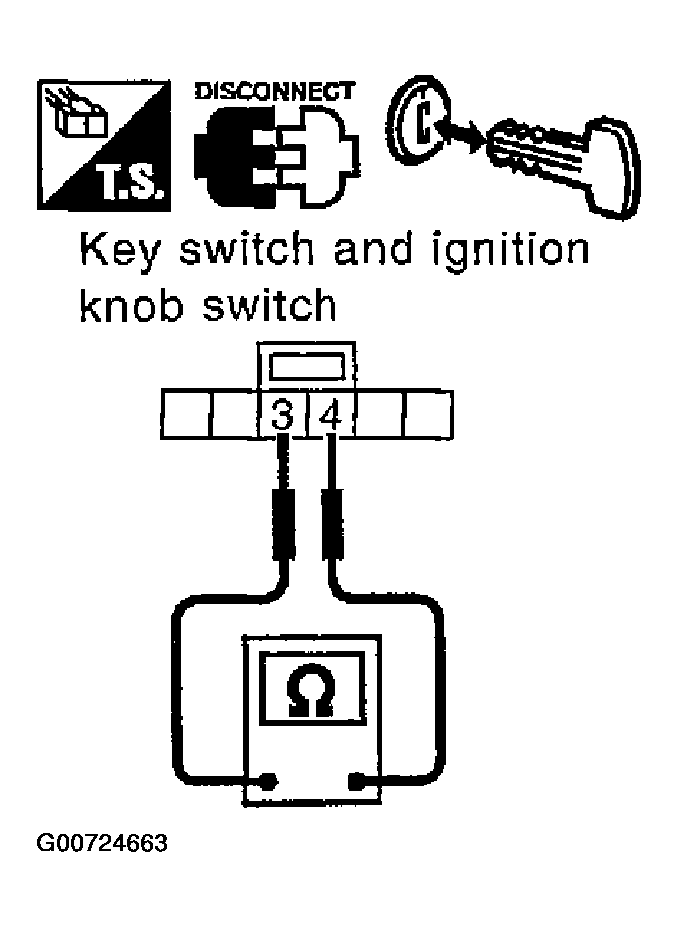

Fig 2: Checking Continuity Between Key Switch And Ignition Knob Switch

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : GO TO 3.

NG : Replace key switch and ignition knob switch.
