Parking Brake Control: Components

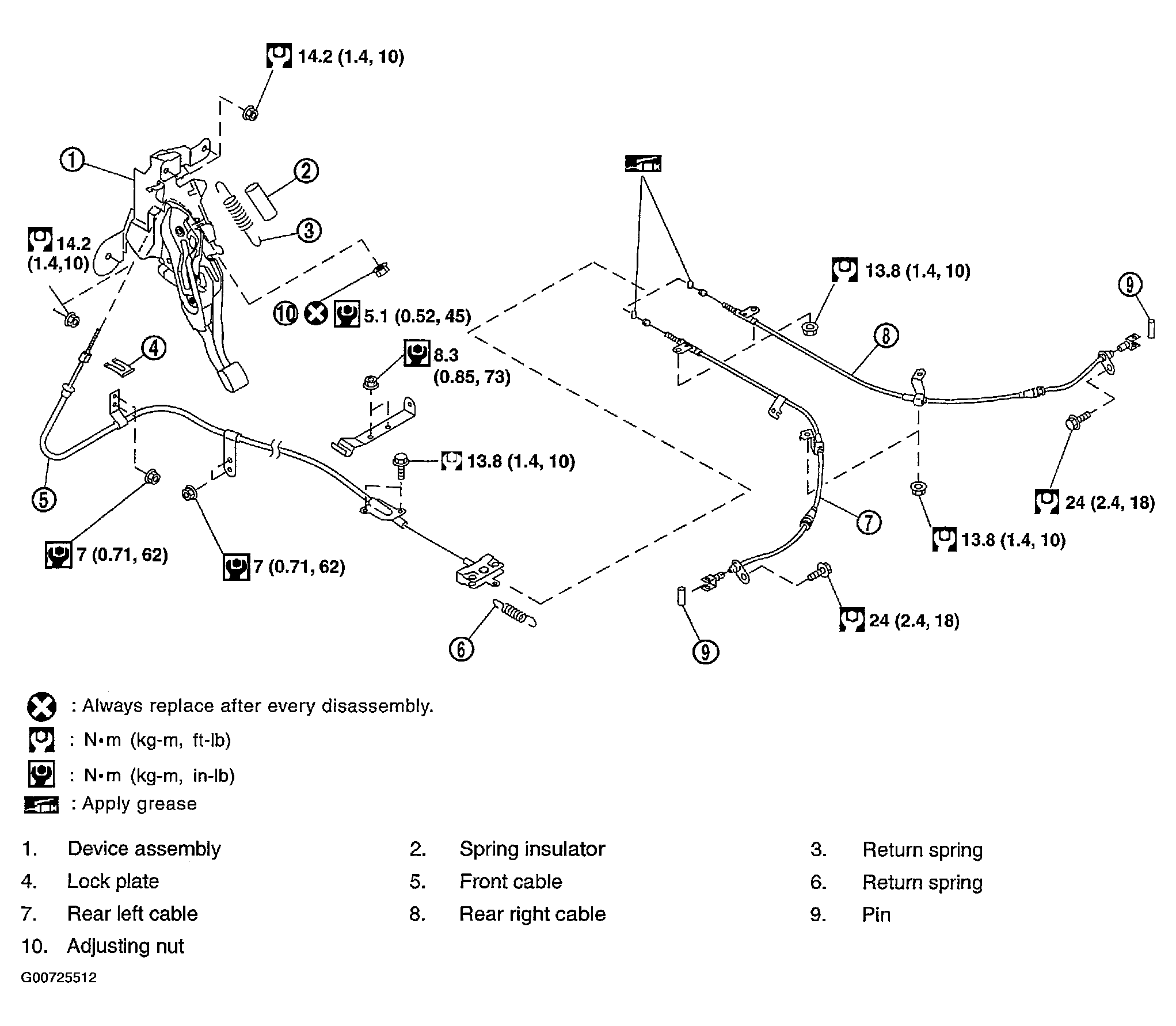

Fig 1: Displaying Parking Brake Control Components
G00725512Courtesy of NISSAN MOTOR CO., U.S.A.
