Symptom Chart 1

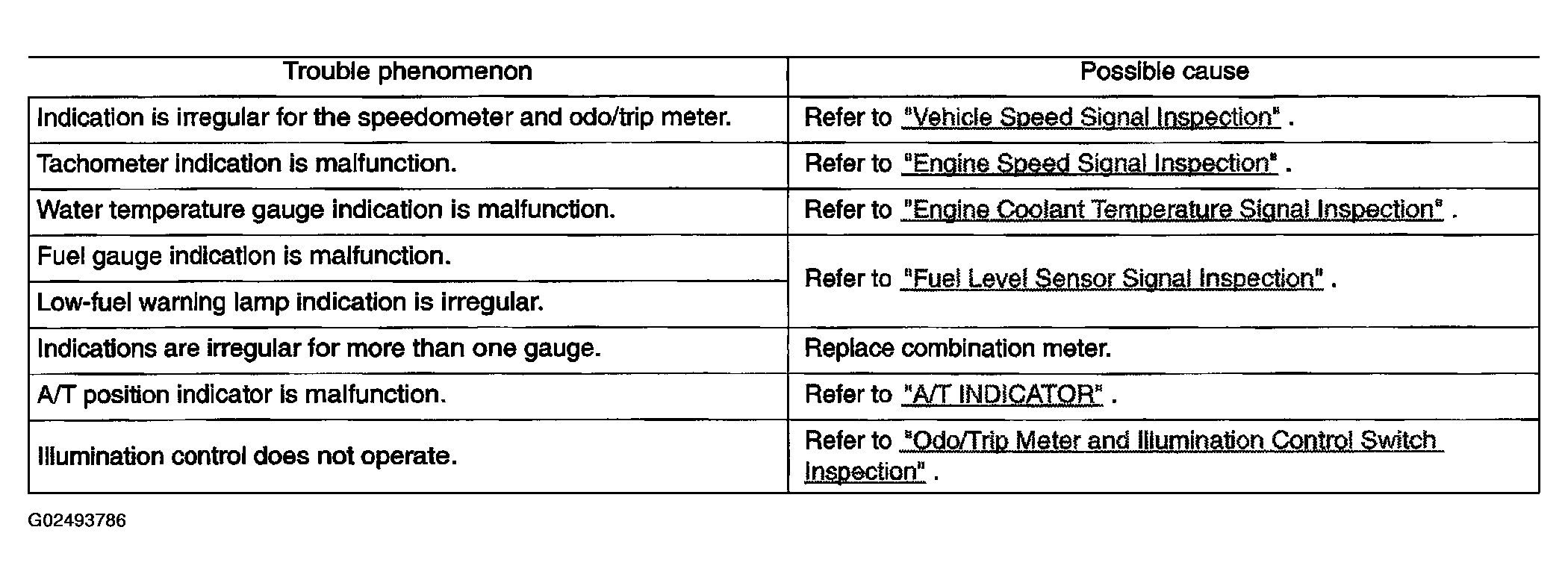

Fig 1: Isolating Causes Of Meter Malfunctions

G02493786

Courtesy of NISSAN MOTOR CO., U.S.A.
