Symptom Chart 2

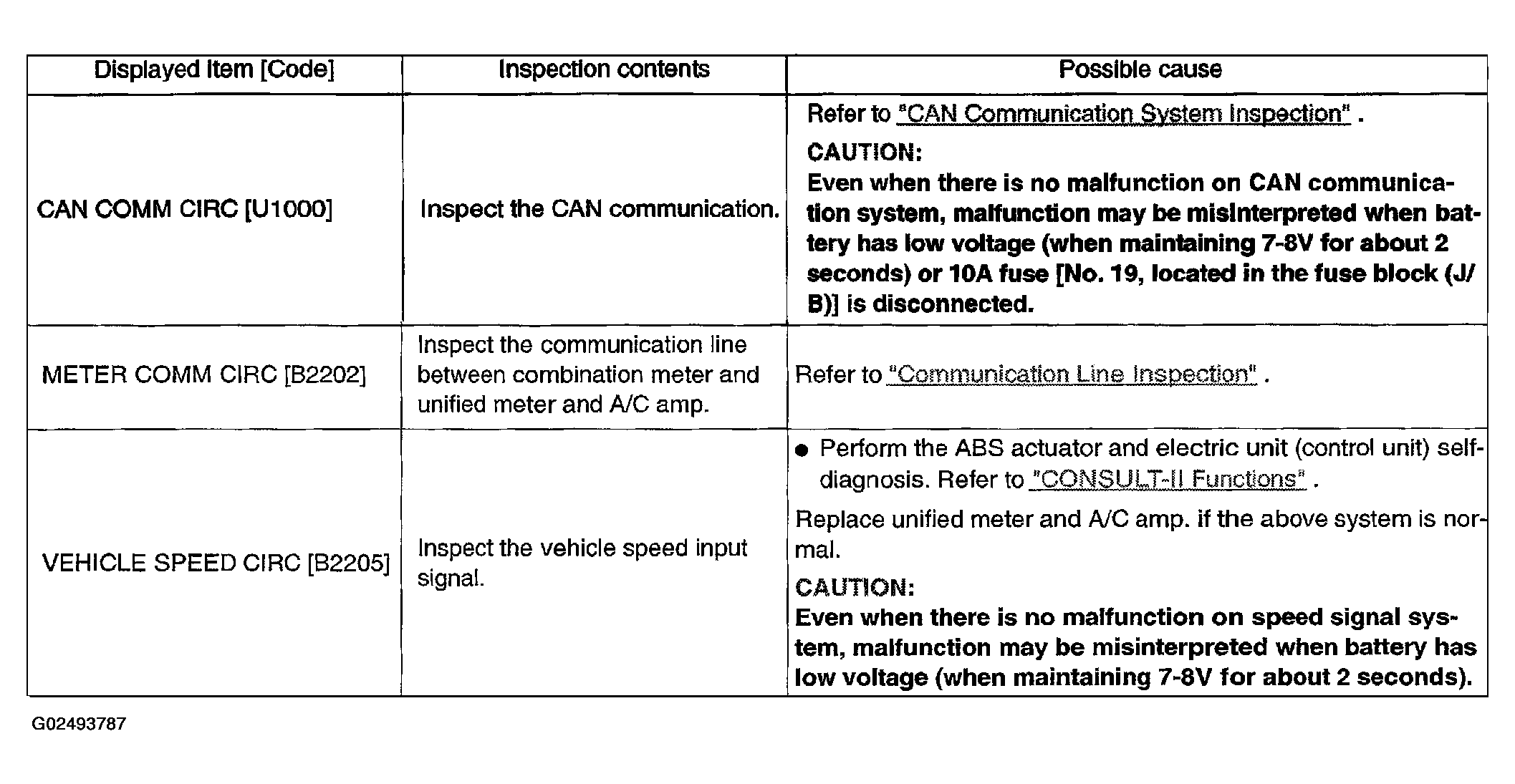

Fig 1: Identifying Causes Of Trouble Codes

G02493787

Courtesy of NISSAN MOTOR CO., U.S.A.
