MAINT Switch (Maintenance Switch)

• When "MAINT" switch is pressed, display vehicle information screen. As vehicle information, it indicates engine oil, tire rotation, tire pressure.
• Pressing "MAINT" switch once cycles display from engine oil->tire rotation->(tire pressure)->display OFF -> engine oil.

  For models with low tire pressure warning system.

Engine Oil and Tire Rotation

• Operating the joystick left/right, replace distance can be set.
• When journey distance is the same as replace distance, alert is displayed. (SERVICE ALERT setting is ON.)
• Selected replace distance is 0 - 7,500 miles (0 - 12,000 km) in increments of 500 mile (800 km).
• Press and hold "TRIP RESET" or "MAINT" switch for 1.5 seconds or longer, reset present journey distance.
• During driving, cannot change settings.

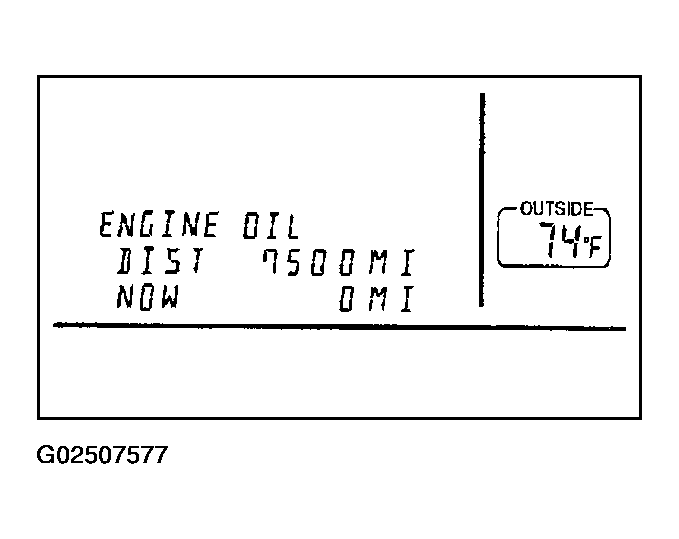

  Fig 1: Displaying SERVICE ALERT Setting

  Courtesy of NISSAN MOTOR CO., U.S.A.

Tire Pressure

• Tire pressure signal is received from low tire pressure warning control unit via CAN communication.
• Tire pressure is displayed.
• When FLAT TIRE signal is received from low tire pressure warning control unit, "FLAT TIRE" is displayed.

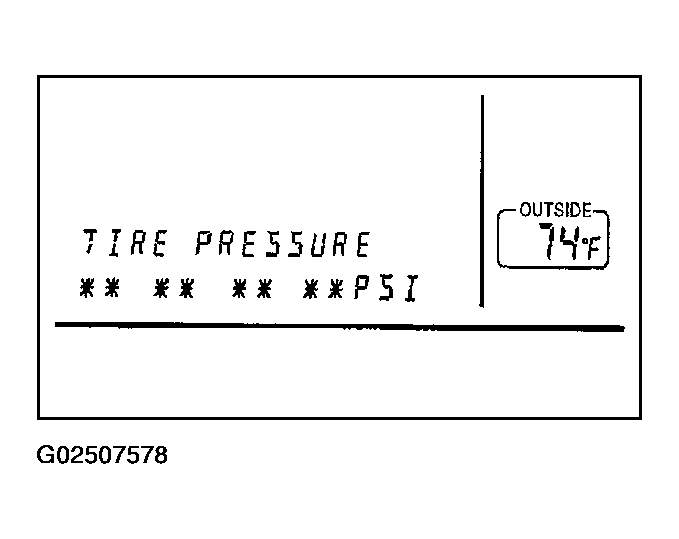

  Fig 2: Display Of Tire Pressure Screen

  Courtesy of NISSAN MOTOR CO., U.S.A.
