DTC P0112 & P0113 IAT Sensor: Wiring Diagram

NOTE: For system wiring diagrams, see SYSTEM WIRING DIAGRAMS .

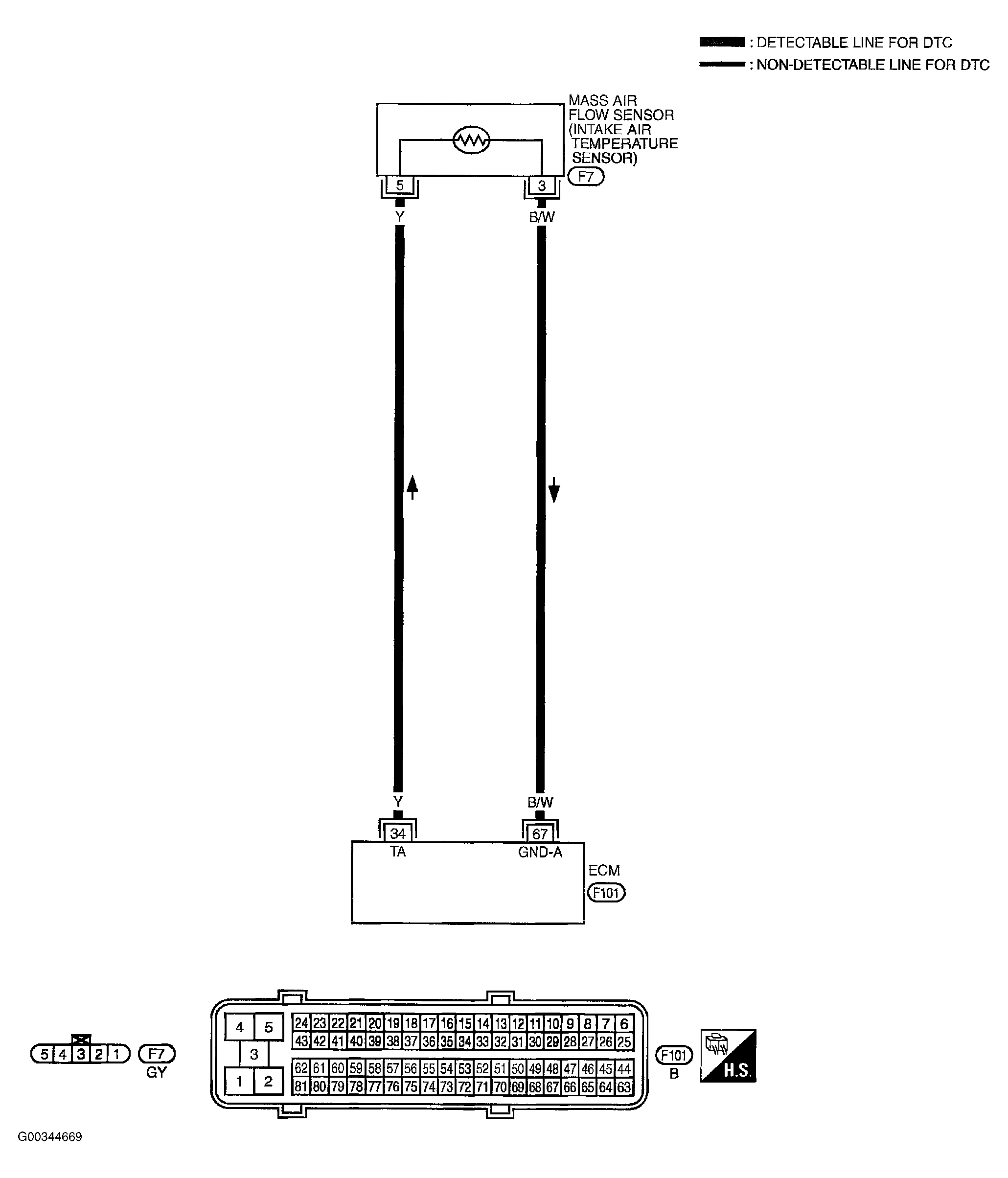

Fig 1: Intake Air Temperature Sensor Circuit
G00344669Courtesy of NISSAN MOTOR CO., U.S.A.
