Fail-Safe Mode

ECM enters fail-safe mode when the malfunction A is detected.

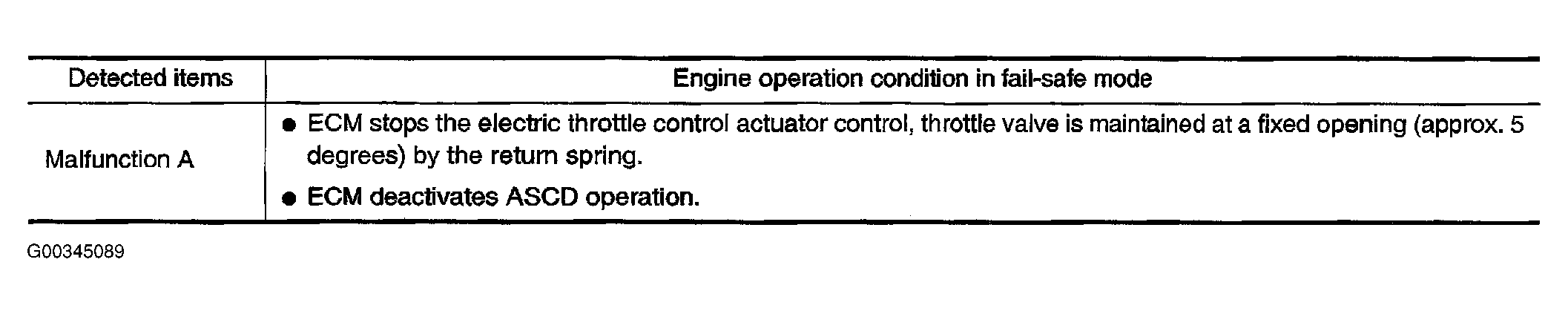

Fig 1: Identifying Engine Status Under Malfunction A Fail-Safe Conditions
G00345089Courtesy of NISSAN MOTOR CO., U.S.A.
