On Board Diagnosis Logic: Notes

These self-diagnoses have the one trip detection logic  .

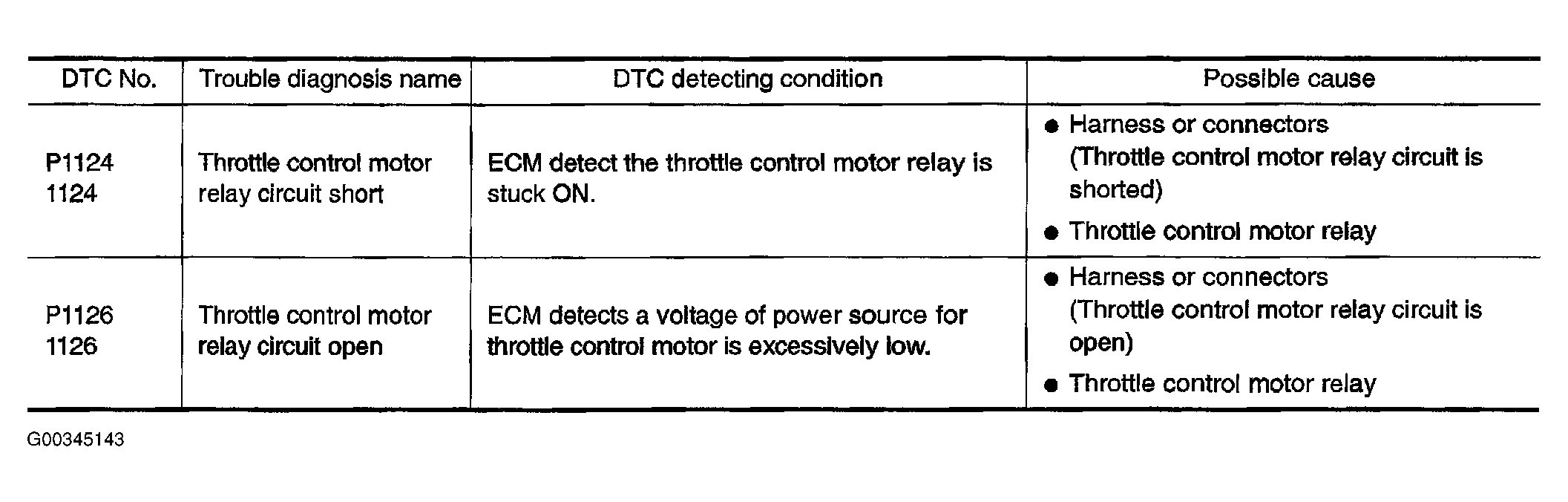

Fig 1: Identifying DTC P1124 & P1126 Conditions & Possible Causes
G00345143Courtesy of NISSAN MOTOR CO., U.S.A.
