Diagnostic Procedure

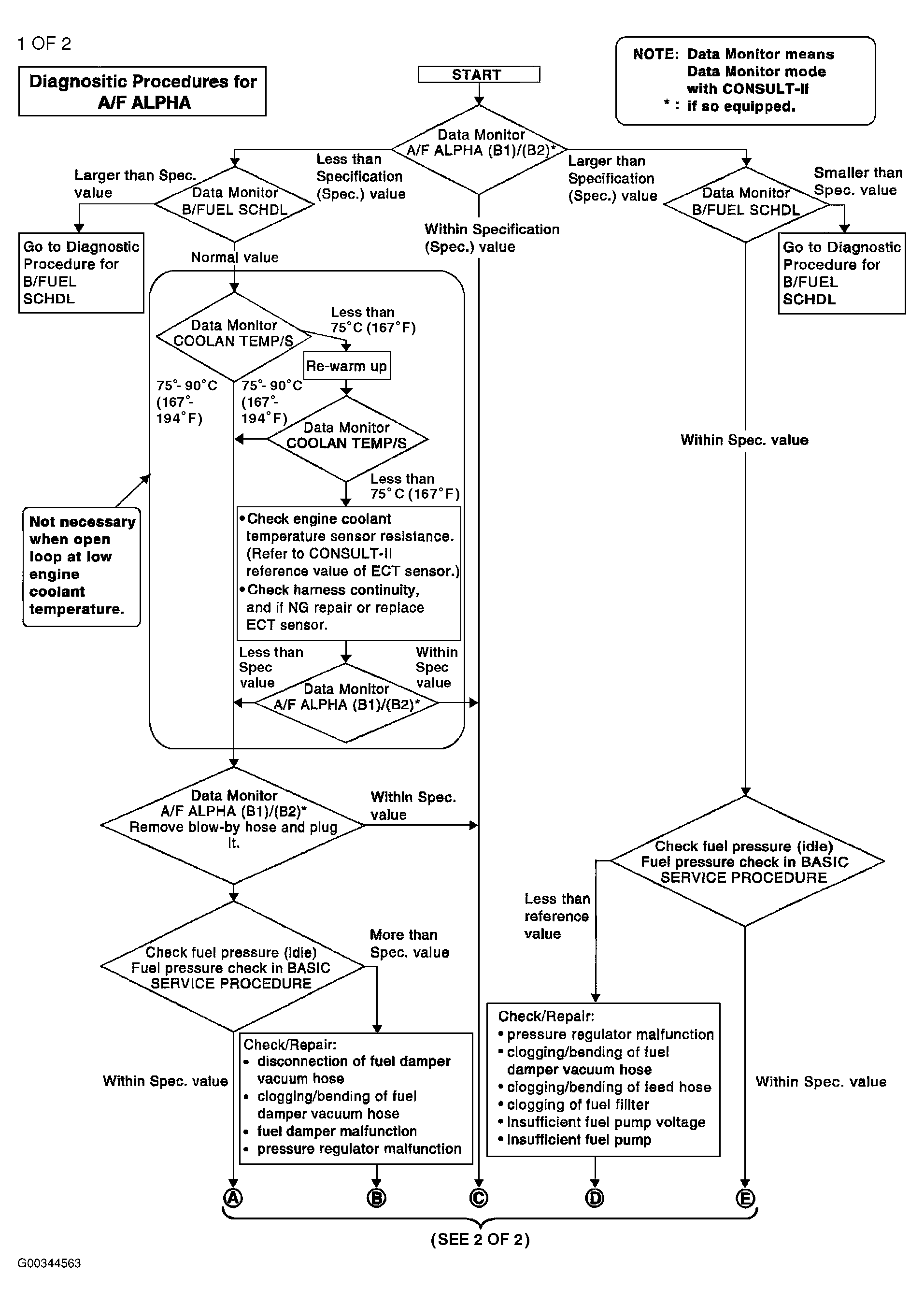

Fig 1: Identifying A/F Alpha Diagnostic Procedure Work Flow (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

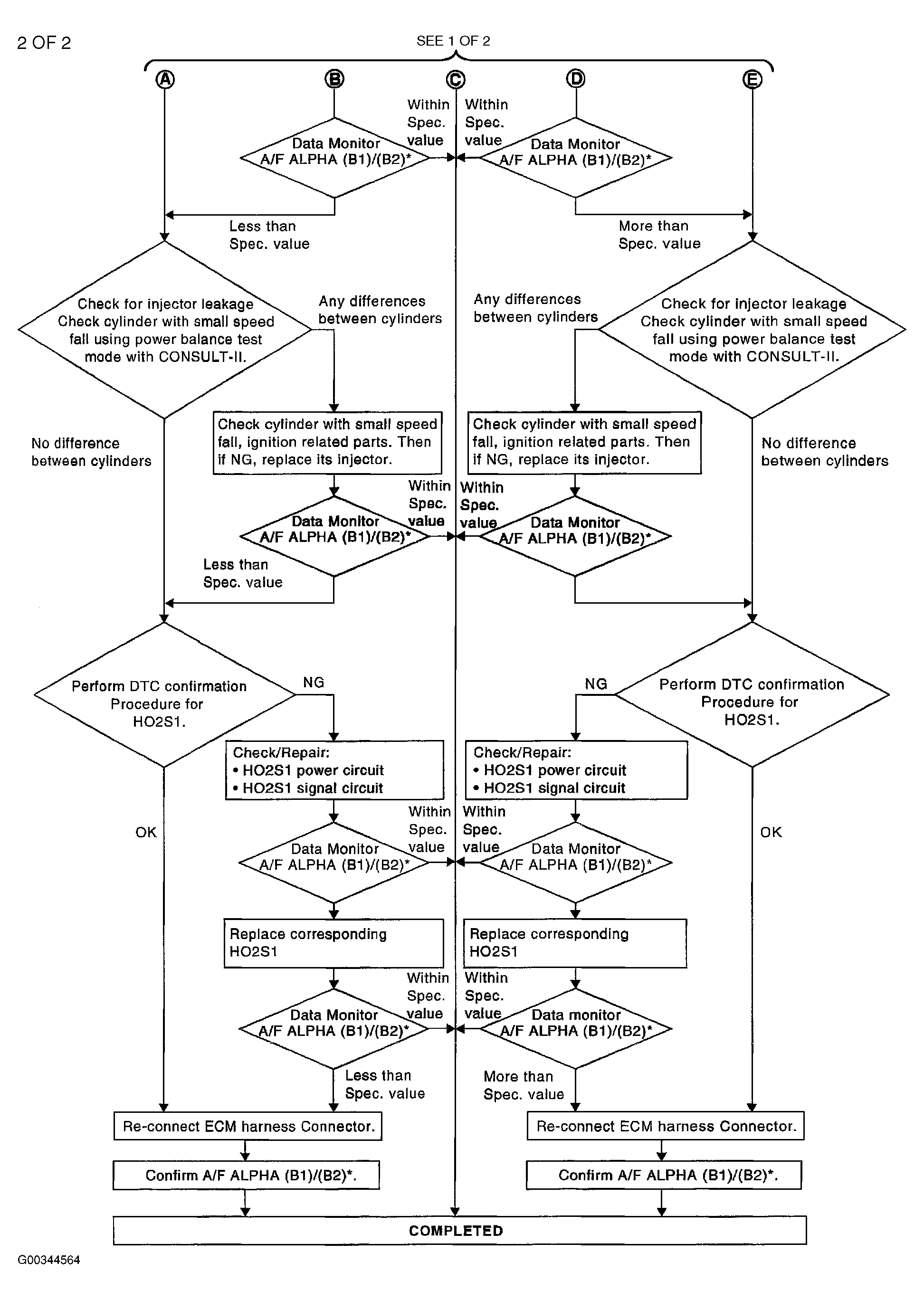

Fig 2: Identifying A/F Alpha Diagnostic Procedure Work Flow (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

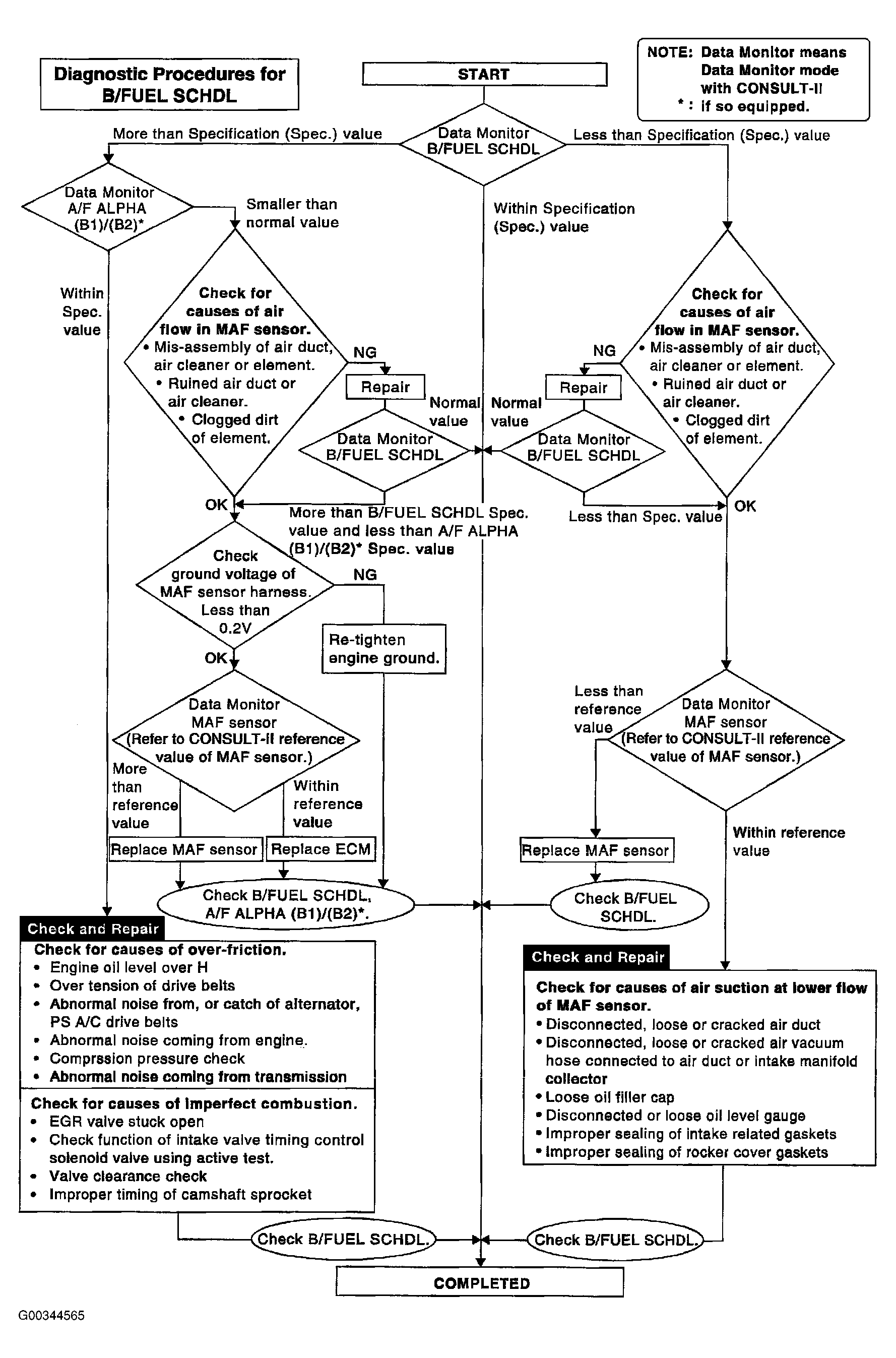

Fig 3: Identifying B/Fuel SCHDL Diagnostic Procedure Work Flow

Courtesy of NISSAN MOTOR CO., U.S.A.
