Circuit Diagram

NOTE: For system wiring diagrams, see SYSTEM WIRING DIAGRAMS .

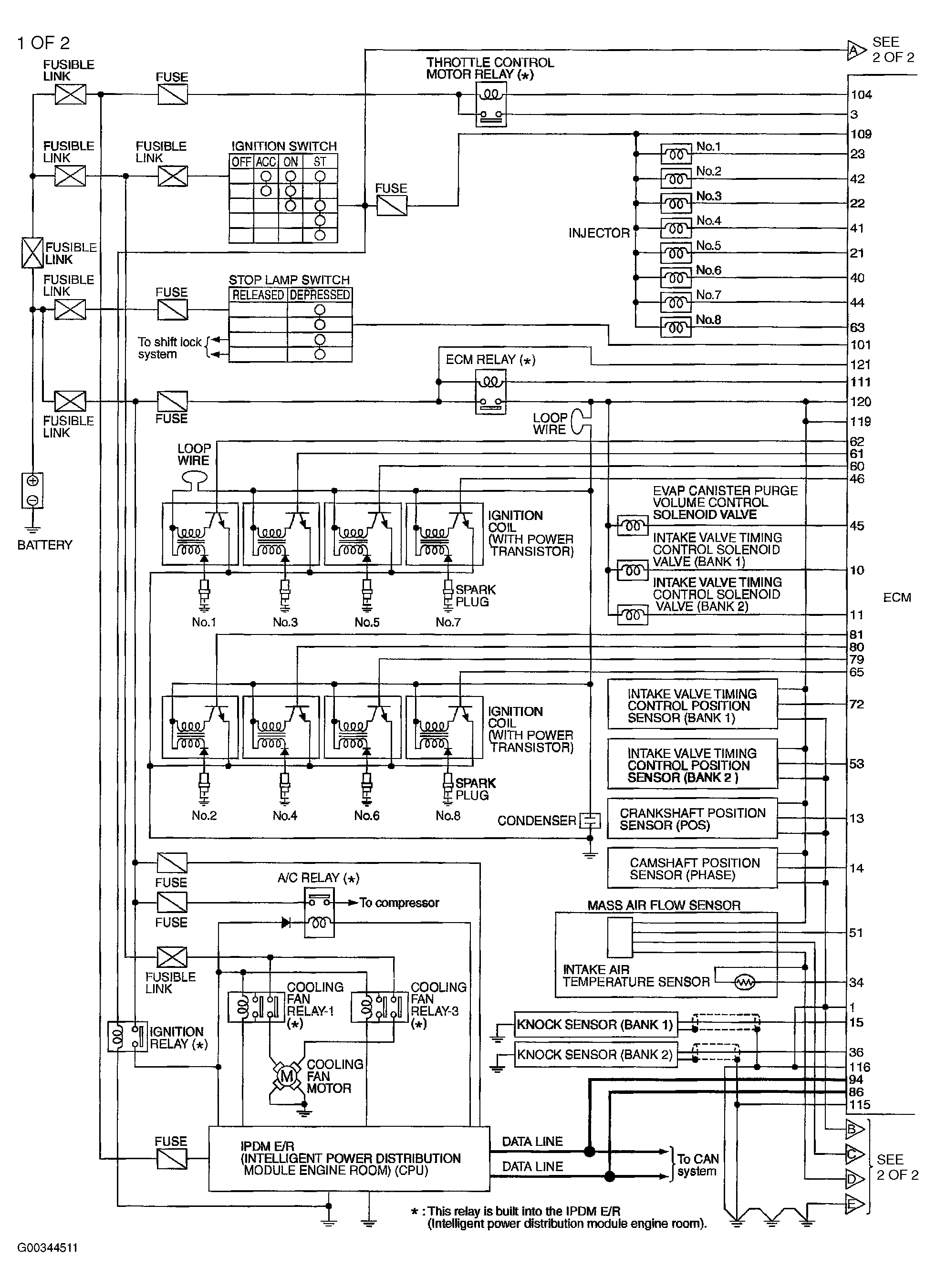

Fig 1: Engine Control Circuit (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Engine Control Circuit (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
