DTC P1815: Manual Mode Switch
>>
Component Inspection
>>
Manual Mode Switch
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Manual Mode Switch

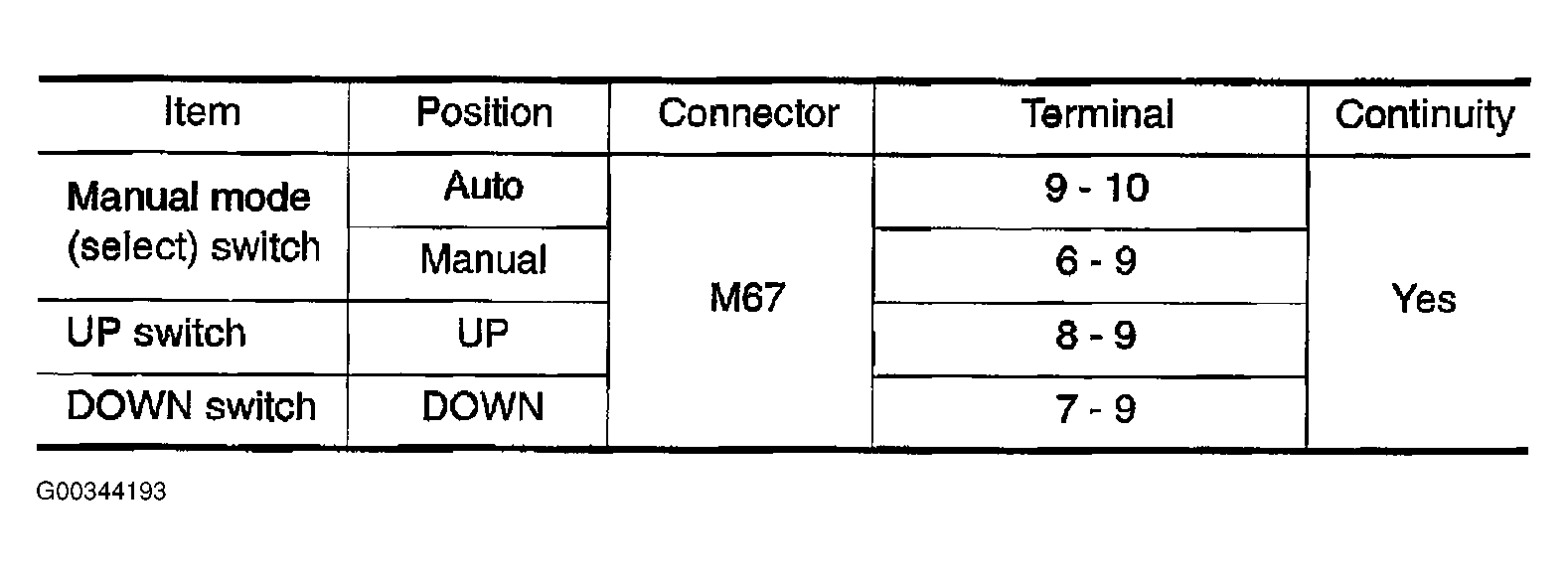

Check continuity between terminals.
Fig 1: Continuity Test Terminals For Manual Mode Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Identifying Manual Mode Switch Connector Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
