With GST
NOTE:

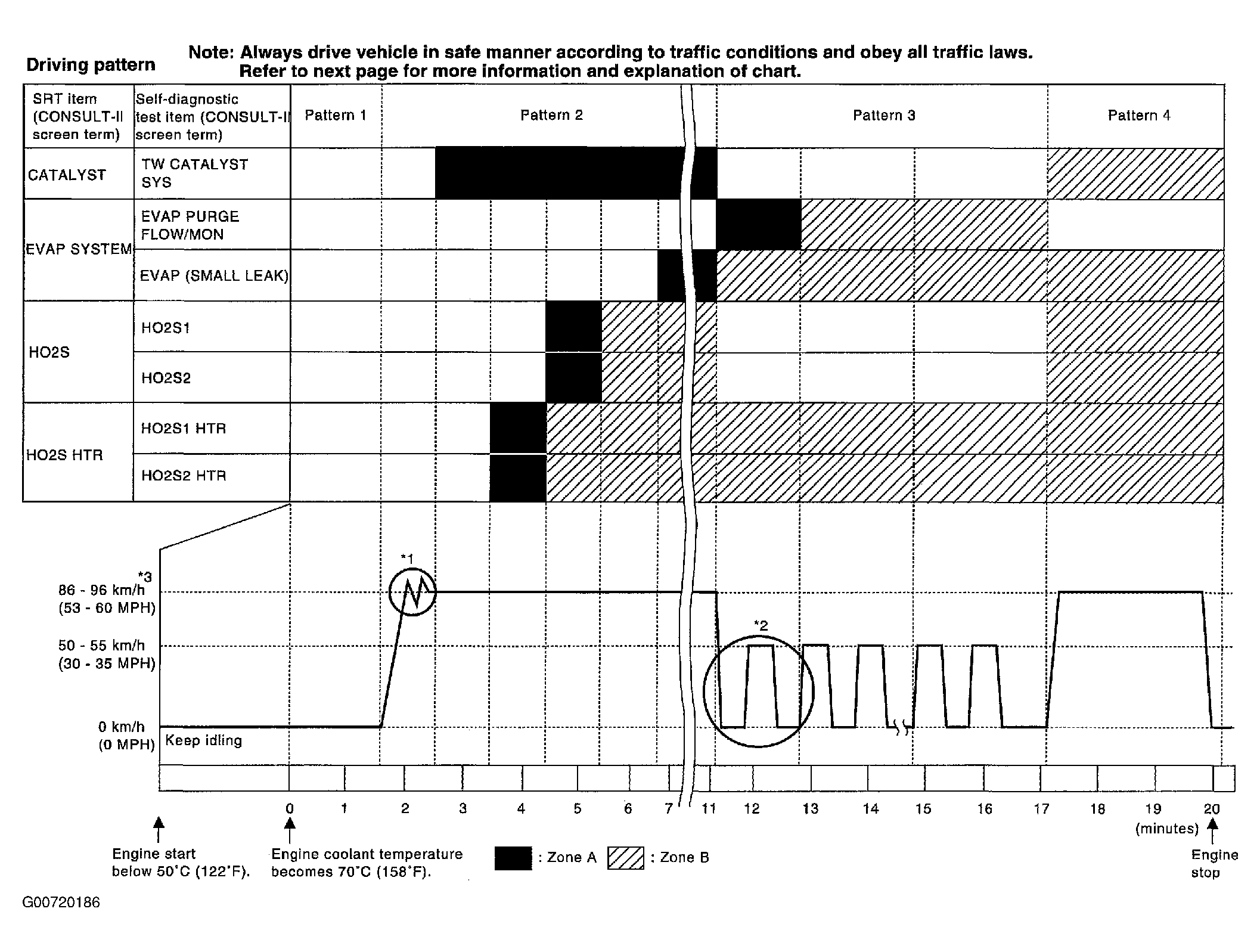

Be sure to read the explanation of Driving Pattern before driving vehicle.
- Start engine.
- Drive vehicle according to "Figure".
- Stop vehicle.
- Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
- Select "MODE 7" with GST.
- If P0455 is displayed on the screen, go to "Diagnostic Procedure ".
- If P0442 is displayed on the screen, go to "Diagnostic Procedure " for DTC P0442.
- If P0441 is displayed on the screen, go to Diagnostic Procedure for DTC P0441.
