Consult-II Inspection Procedure: Notes

Turn ignition switch "ON".
Connect "CONSULT-II and CONSULT-II CONVERTER" to the data link connector.

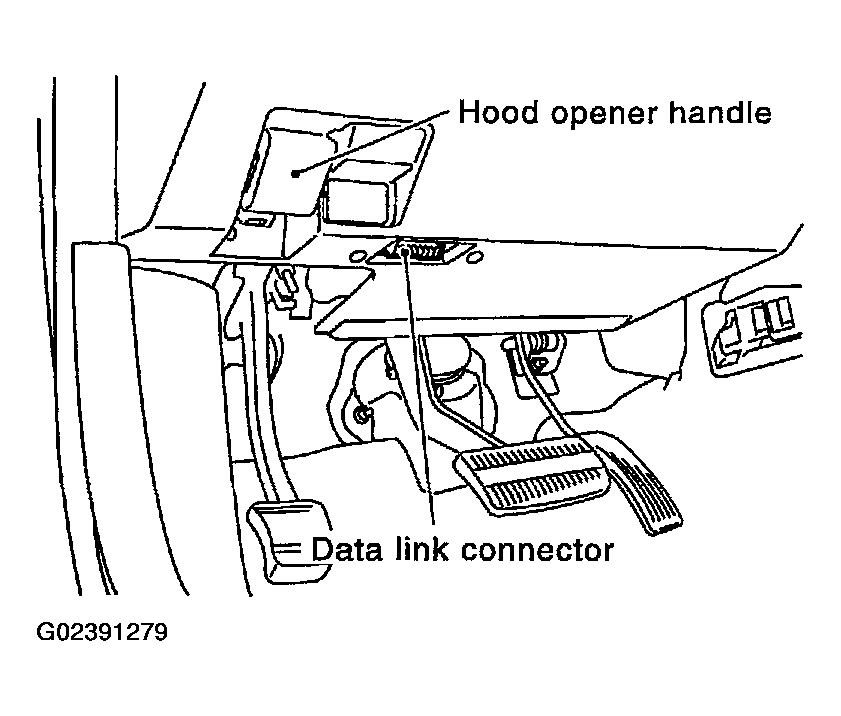

Fig 1: Locating Data Link Connector And Hood Opener Handle
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch "ON".
Touch "START (NISSAN BASED VHCL)".

Fig 2: Identifying Start (Nissan Based VHCL) Display On CONSULT-II Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM".
If "BCM" is not indicated, go to Refer to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

Fig 3: Identifying BCM Display On Select System Mode Of CONSULT-II Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "RETAINED PWR".

Fig 4: Identifying Retained PWR Display On Select Test Item Of CONSULT-II Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Select diagnosis mode.
"ACTIVE TEST" and "WORK SUPPORT" are available.

Fig 5: Identifying Active Test And Work Support Display On CONSULT-II Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
