Door Switch Check/Without Navigation System

With CONSULT-II

Check door switches ("DOOR SW-DR" and "DOOR SW-AS") in "DATA MONITOR" mode with CONSULT-II.

Fig 1: CONSULT-II Monitor Item Condition Table

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Door SW-DR And Door SW-AS In Data Monitor Mode With CONSULT-II

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check voltage between BCM connector and ground.

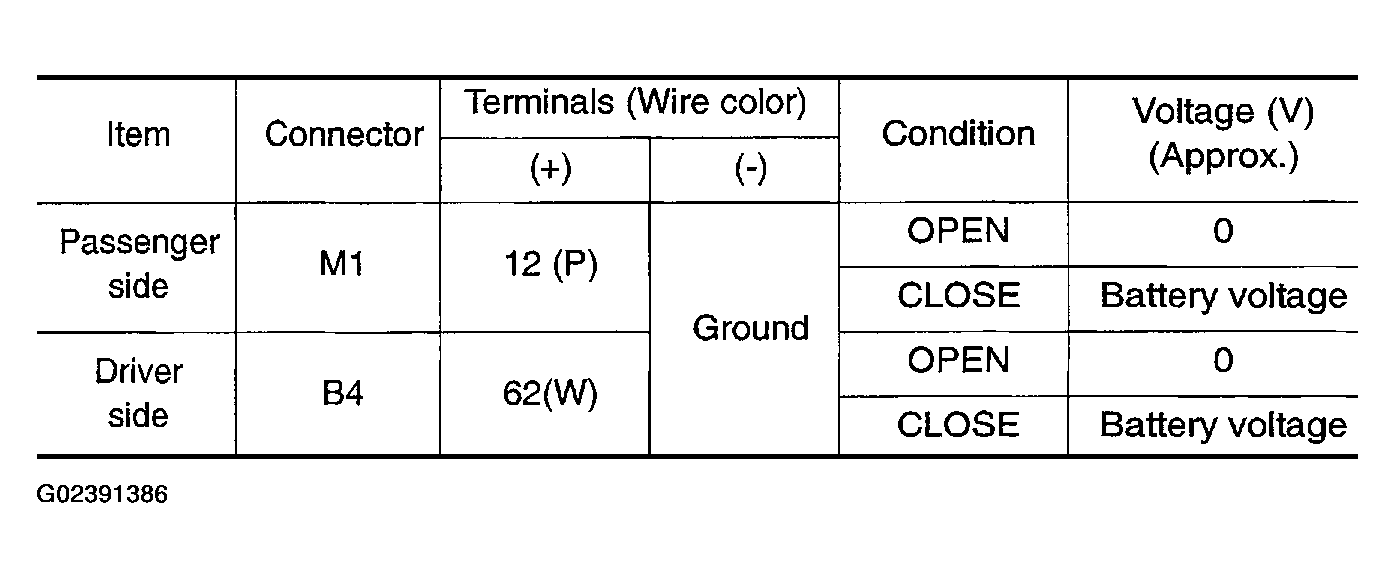

Fig 3: Voltage Measuring Table - Between BCM Connector And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK : Door switch is OK.
2. NG : GO TO 2.

Fig 4: Checking Voltage Between BCM Connector And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Turn ignition switch OFF.
2. Disconnect door switch and BCM connector.
3. Check continuity between BCM connector B4, M1 terminals 12, 62 and front door switch driver side and passenger side connector B17, B23 terminals 1.
   1. Front door switch driver side
   2. 62 (W) - 1 (W): Continuity should exist.
   3. Front door switch passenger side
   4. 12 (P) - 1 (P): Continuity should exist.
4. Check continuity between BCM connector B4, M1 terminal 12, 62 and ground.
   1. 12 (P) - Ground: Continuity should not exist.
   2. 62 (W) - Ground: Continuity should not exist.

OK or NG

1. OK : GO TO 3.
2. NG : Repair or replace harness.

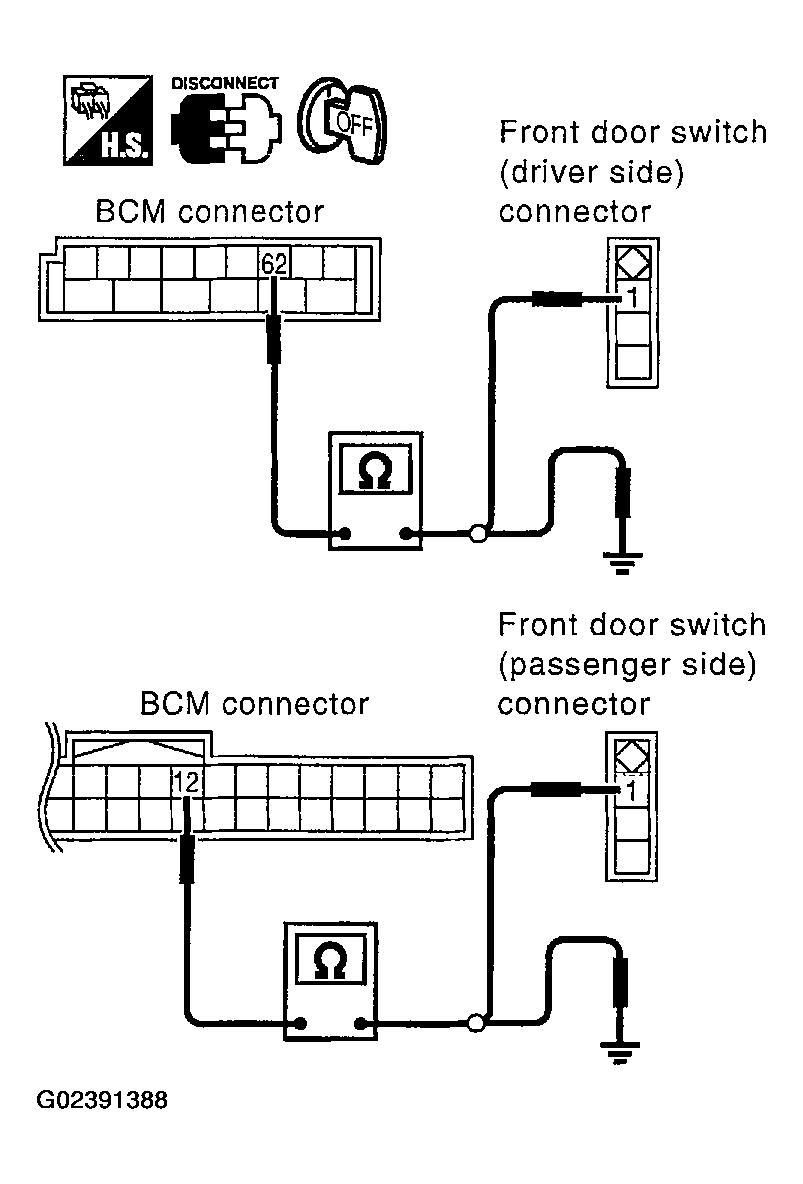

Fig 5: Checking Continuity Between BCM Connector B4, M1 Terminals 12, 62 And Front Door Switch Driver Side And Passenger Side Connector B17, B23 Terminals 1 And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

Check continuity between each door switch terminal 1 and body ground part of door switch.

Fig 6: Continuity Measuring Table - Between Each Door Switch Terminal 1 And Body Ground Part Of Door Switch

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK : Further inspection is necessary. Refer to symptom chart.
2. NG : Replace malfunction door switch.

Fig 7: Checking Continuity Between Each Door Switch Terminal 1 And Body Ground Part Of Door Switch

Courtesy of NISSAN MOTOR CO., U.S.A.
