Power Window Lock Switch Circuit Check/With Front Left And Right Power Window Anti-Pinch System

Check Power Window Lock Signal
Check voltage between power window main switch connector and ground.

Fig 1: Voltage Measuring Table - Between Power Window Main Switch Connector And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK : GO TO 2
2. NG : Replace power window main switch.

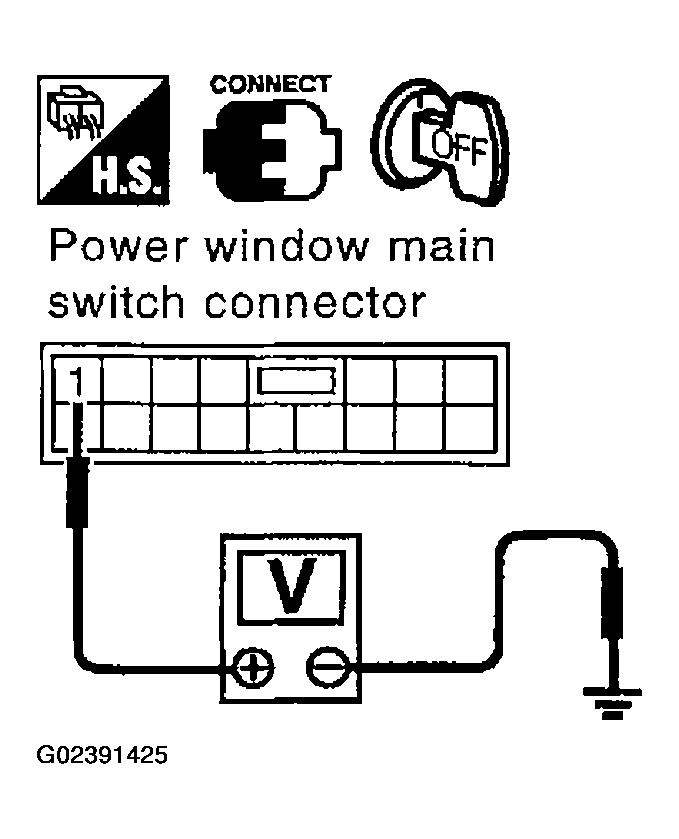

Fig 2: Checking Voltage Between Power Window Main Switch Connector Terminal 1 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
Check Power Window Lock Switch
Check continuity between power window main switch connector D7 terminal 1 and 5.

Fig 3: Continuity Measuring Table - Between Power Window Main Switch Connector D7 Terminal 1 And 5
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK : Check the condition of the harness and the connector.
2. NG : Replace power window main switch.

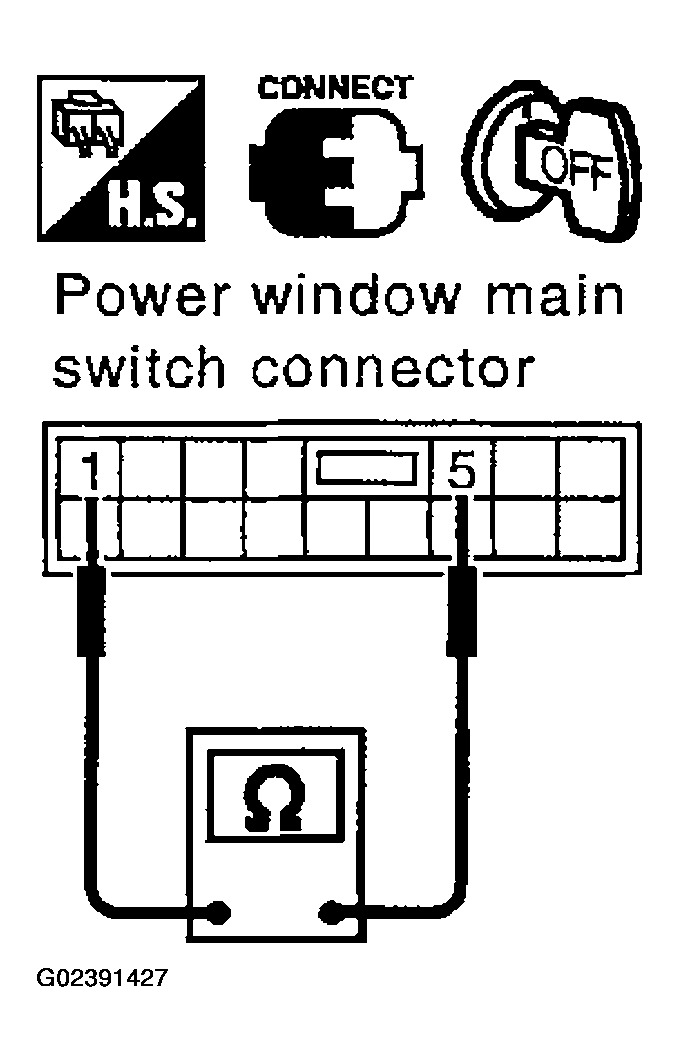

Fig 4: Checking Continuity Between Power Window Main Switch Connector D7 Terminal 1 And 5
Courtesy of NISSAN MOTOR CO., U.S.A.
