Terminal And Reference Value For Power Window Main Switch/With Front And Rear Power Window Anti-Pinch System

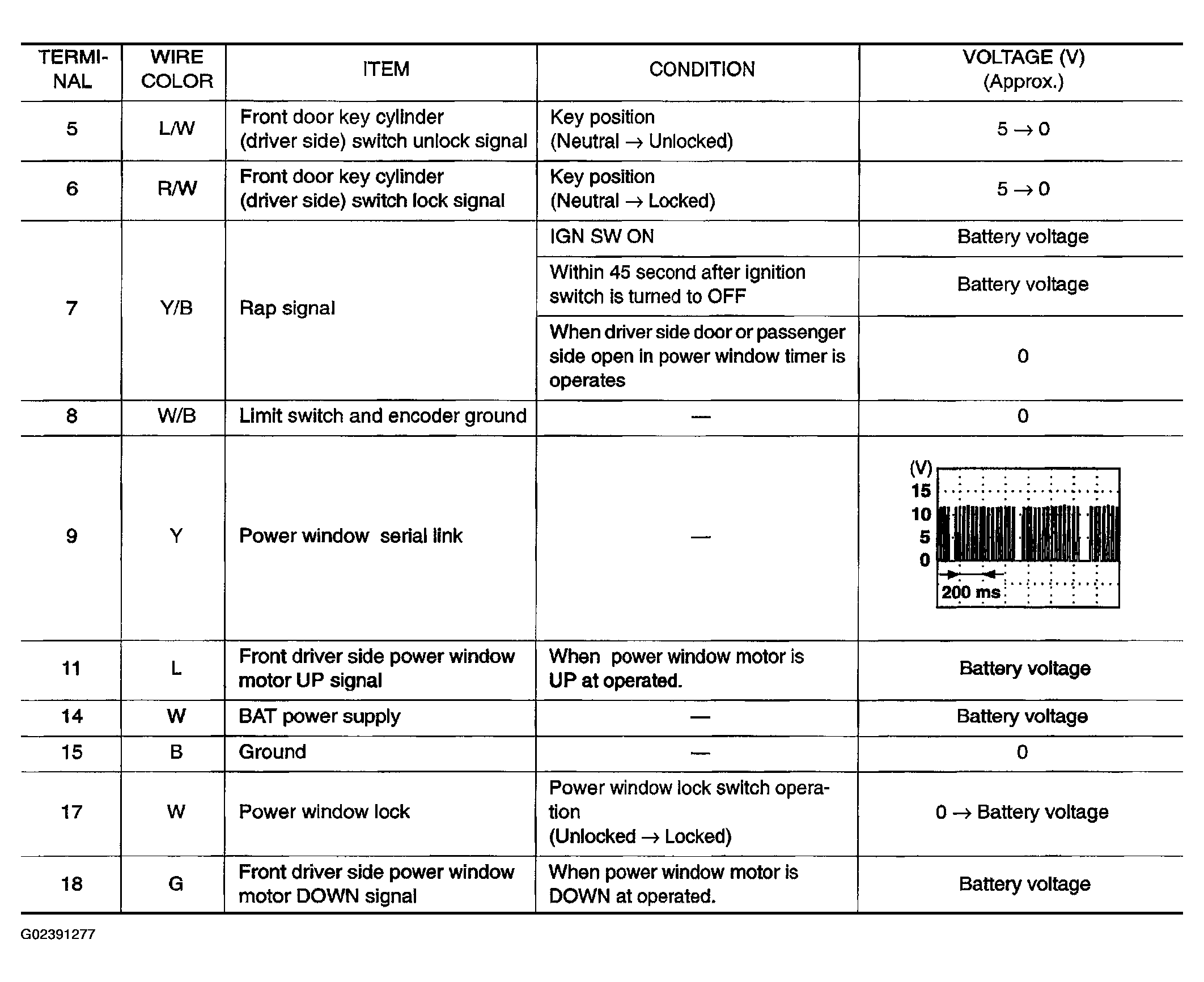

Fig 1: Power Window Main Switch Terminal And Reference Value Table - With Front And Rear Power Window Anti-Pinch (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

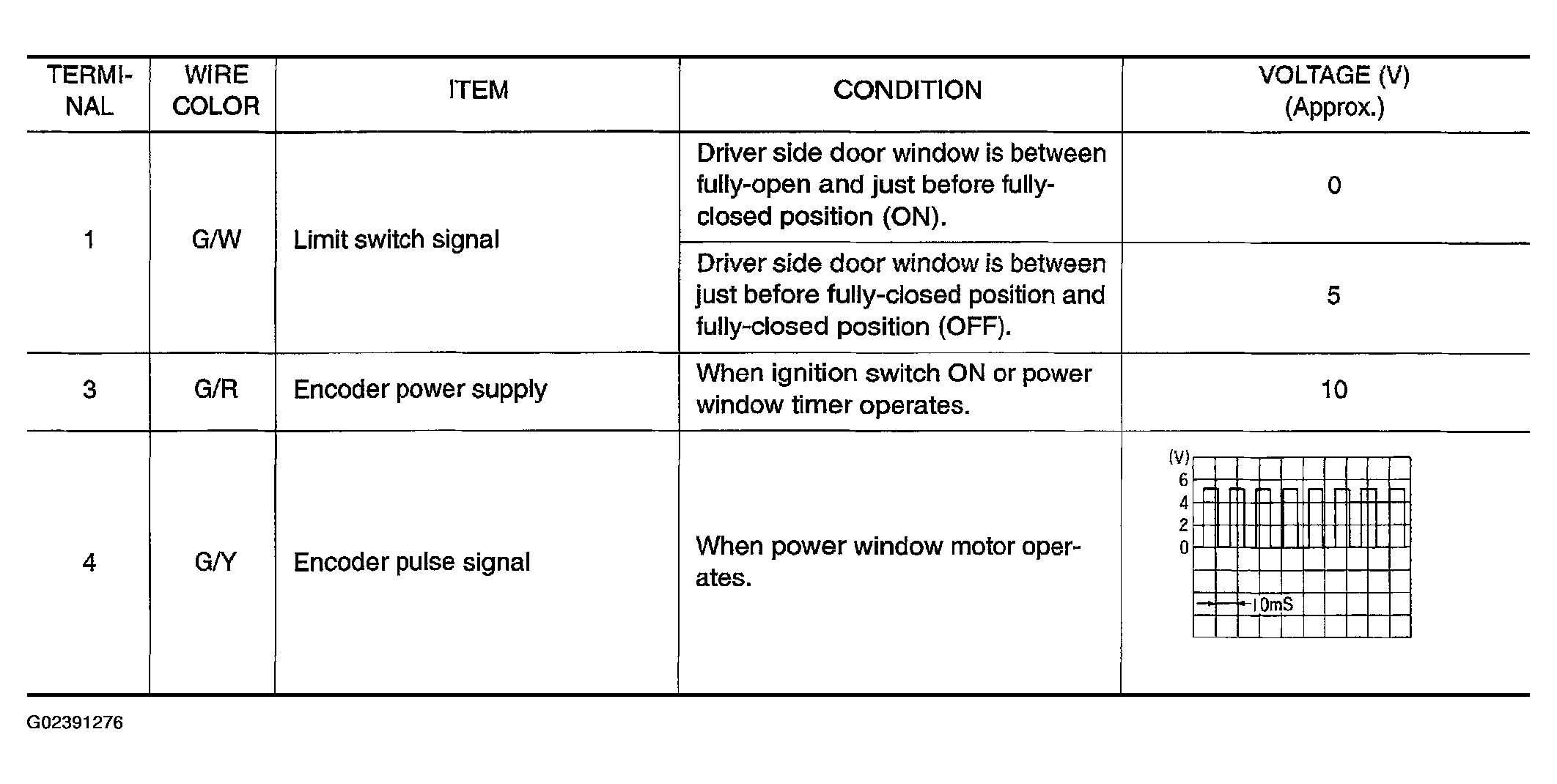

Fig 2: Power Window Main Switch Terminal And Reference Value Table - With Front And Rear Power Window Anti-Pinch (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
